GIE18CTHMRWW FRESH FOOD SECTION

GIE18CTHMRWW FRESH FOOD SECTION

Written by

in

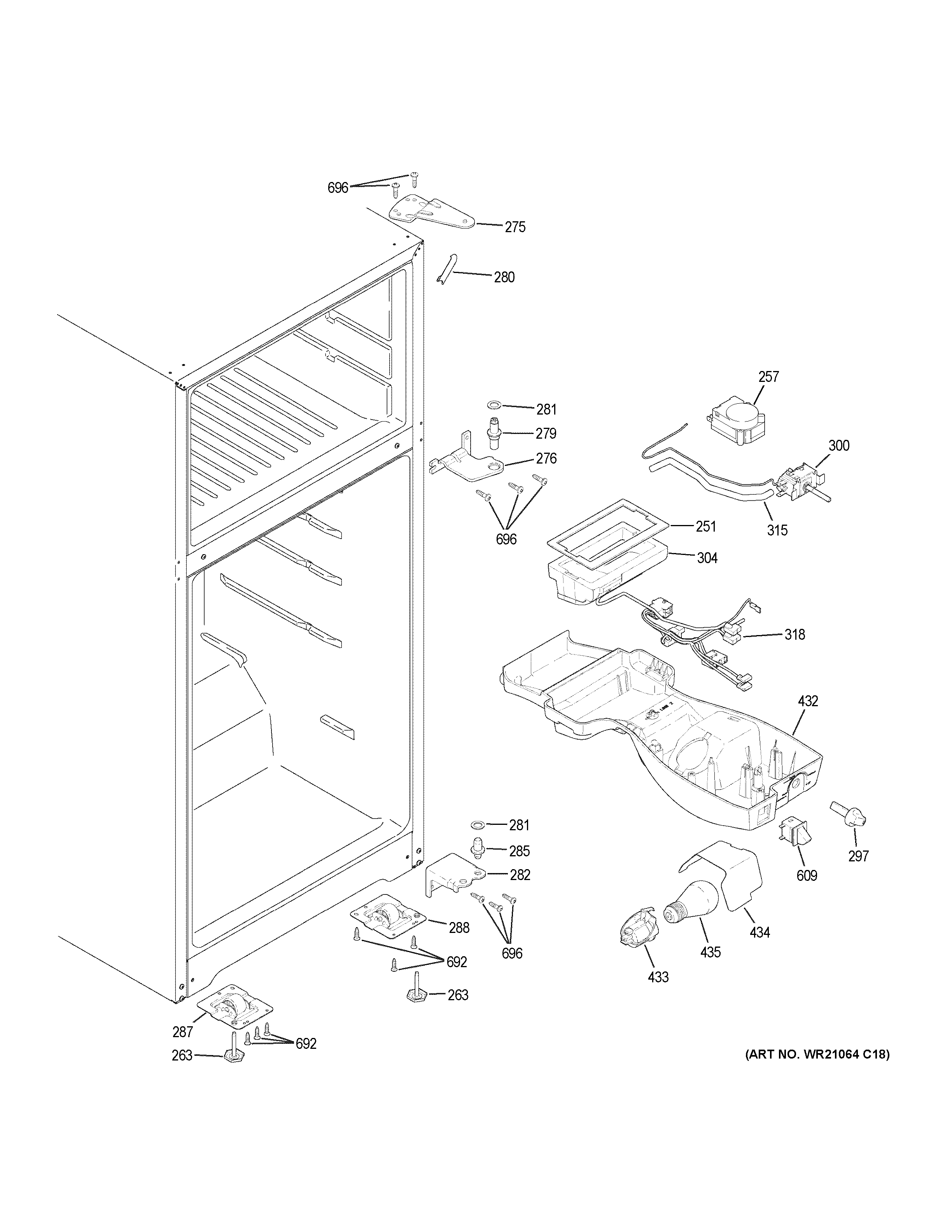

GIE18CTHMRWW FRESH FOOD SECTION

Products

PositionProduct
251GASKET SUPPLY FOAM
257WR9X502 GE Refrigerator Defrost Timer
263WR2X7877 GE Refrigerator Slider Adjuster
275WR13X27091 GE Refrigerator Hinge Top and Pin Assembly
276WR13X21174 GE Refrigerator Center Hinge
279WR02X21173 GE Refrigerator Center Hinge Pin
280WR02X10703 GE Refrigerator Corner Cap OC White
281WASHER HINGE
282WR13X21175 GE Refrigerator Bottom Hinge
285PIN HINGE BOTTOM
287WR02X21258 GE Refrigerator Mobility Assembly Front Left Hand
288WR02X31376 GE Refrigerator Right Front Wheel Assembly
297WR02X21250 GE Refrigerator Control Knob
300WR09X26871 GE Refrigerator Temperature Control
304WR02X21253 GE Refrigerator Foam Supply Nozzle
315WR2X8344 GE Refrigerator Vinyl Sleeve
318WR55X30074 GE Defrost Harness
432WR02X30173 GE Refrigerator Control Housing
433WR02X30153 GE Refrigerator Lamp Socket
434SHIELD REFLECTOR
435RANGE ONLY 40W 120V APPL BULB
609REFRIGERATOR DOOR LIGHT SWITCH
692WR01X23006 GE Refrigerator Screw 8-32 CA HXW 1/2 NS
696WR01X26527 GE Refrigerator Screw 12-24 TT PNPSD .785
