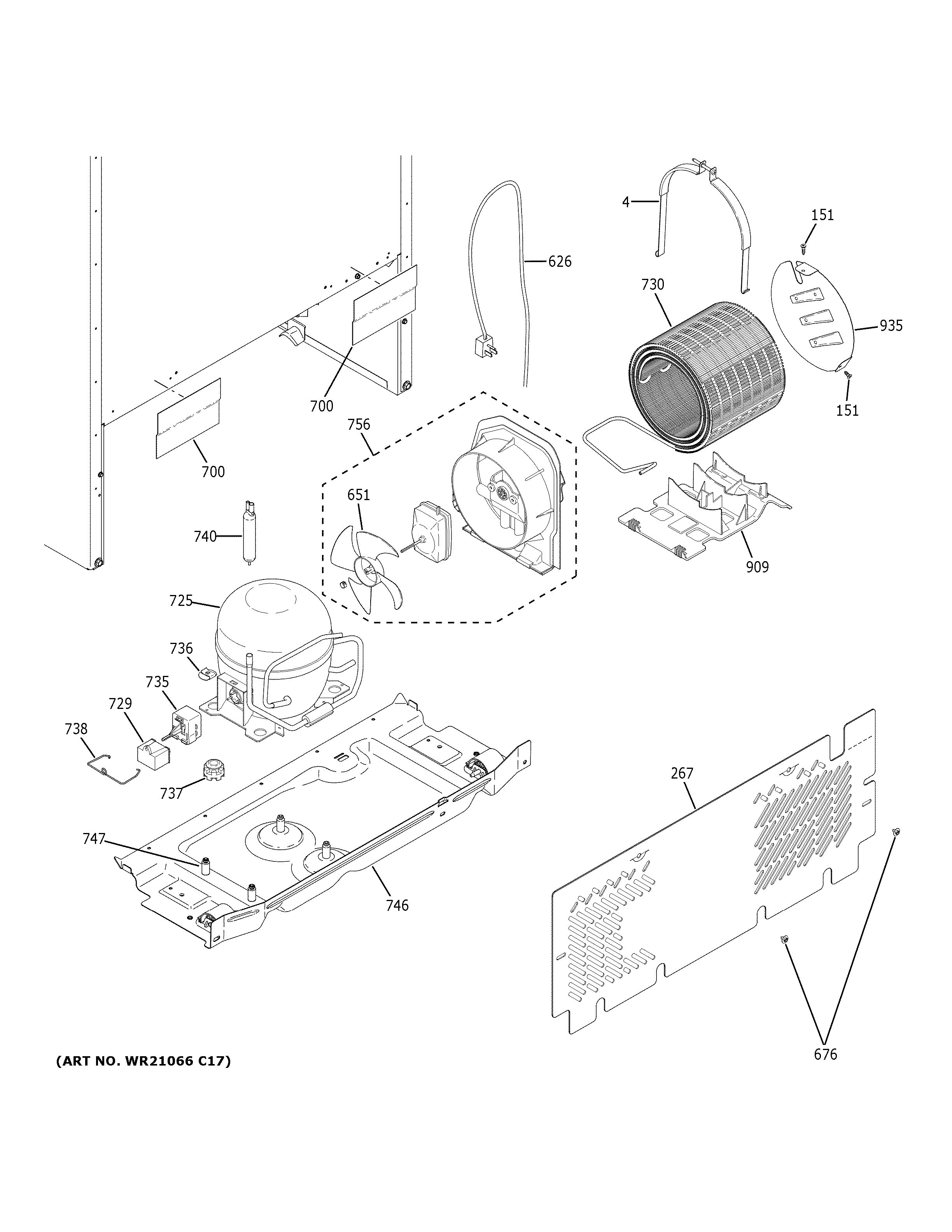

GIE19JSNDRSS MACHINE COMPARTMENT

GIE19JSNDRSS MACHINE COMPARTMENT

Written by

in

GIE19JSNDRSS MACHINE COMPARTMENT

Products

PositionProduct
4CONDENSER STRAP
151WD02X10151 GE Dishwasher Screw 10-16 AB 43WHEX 5/8
267WR82X31512 GE Rear Access Cover
626WR55X31301 GE Refrigerator Machine Compartment Harness
651WR60X10207 GE Refrigerator Fan Blade
676SCR 8-32 CA IHXW .615 S
700WATER DIVERTER
725WR87X31765 GE Refrigerator Compressor
729WR55X33686 GE Refrigerator 10 µF Capacitor
730WR84X31398 GE Refrigerator Condenser
735WR49X37585 GE PTCR Combination Kit
736WR02X28781 GE Compressor Mounting Clip
737WR02X22869 GE Refrigerator Grommet
738WR02X26153 GE Refrigerator Clip Retainer
740WR87X30875 GE Refrigerator R600 Dryer with Red Cap
746BASEPLATE W/ COMPRESSOR STUDS
747WR1X1779 GE Refrigerator Stud Mounting Compressor
909WR17X31476 GE Refrigerator Condenser Fan & Housing
935BAFFLE
