GIWP1000M0WW CONTROLS & BACKSPLASH

GIWP1000M0WW CONTROLS & BACKSPLASH

Written by

in

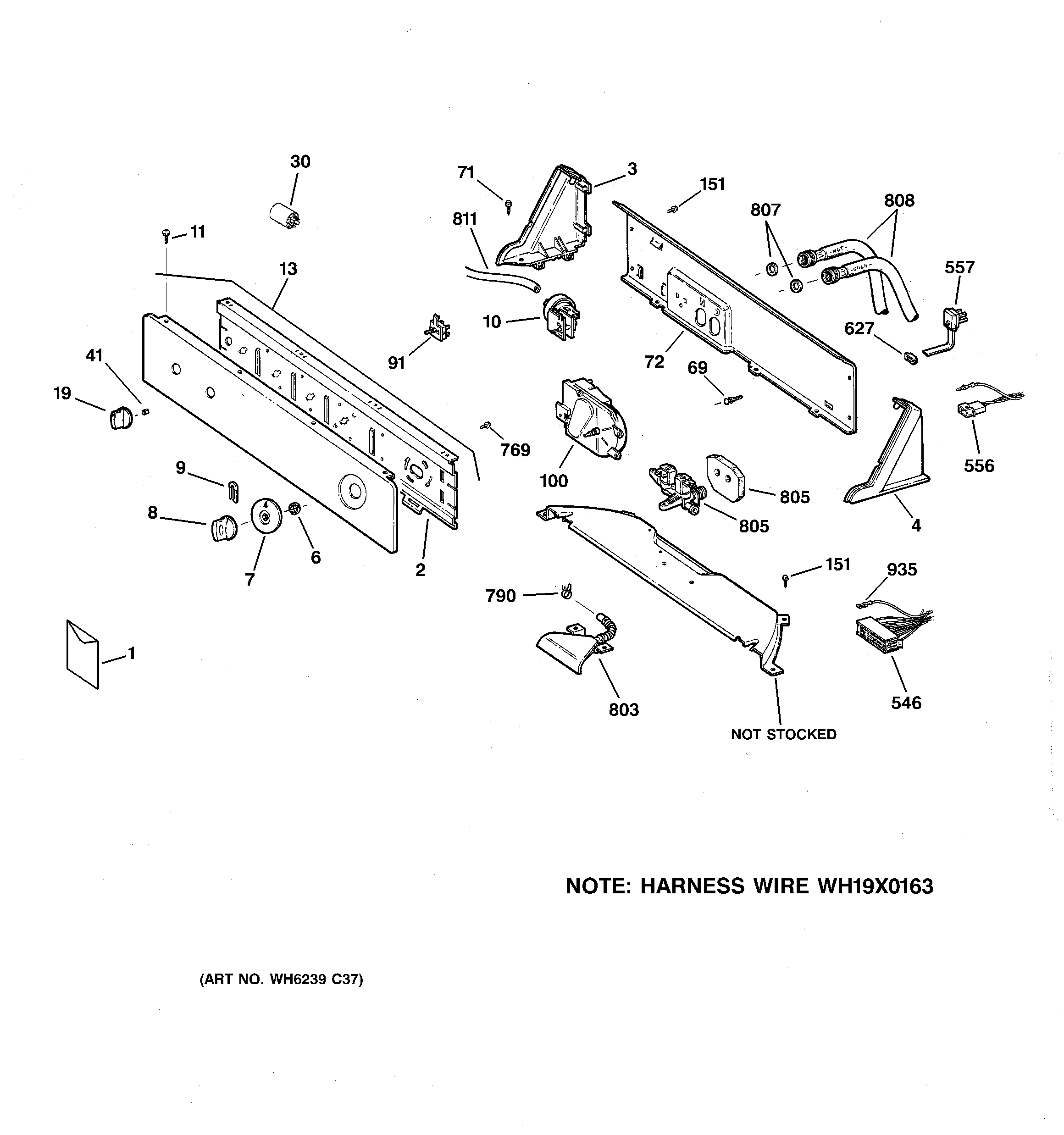

GIWP1000M0WW CONTROLS & BACKSPLASH

Products

PositionProduct
1GEN 49-90445
1GEN 31-16511
1GEN 31-15441
2GEN WH46X10046
3GEN WH42X10710
4GEN WH42X10711
6WH02X10093 GE Washer Compression Ring
7WH11X10015 GE Timer Dial
8WH1X2754 GE Dryer Timer Control Knob
9WH1X2117 GE Timer Knob Spring Clip
10WH12X10065 GE Washer Water Level Pressure Switch
13GEN WH42X10973
19WH1X2721 GE Dryer Control Knob
30WH12X10408 GE Power Line Filter
41GEN WE01X0980?
69GEN WH02X1222
71WH2X1205 GE Screw 8-18
72GEN WH46X10034
91WH12X10498 GE Washer Rotary Switch
100GEN WH12X1083
151WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
546GEN WH12X0870
556GEN WH12X0497
557GEN WH19X10049
627GEN WR01X1930
769WH02X10090 GE Screw 8-18 B HXW 5/16 S
790WH1X2036 GE UNIX Clamp
803HOSE & WATER INLET
805VALVE WATER 220/240,50HZ
805GEN WH46X0360
807WH2X42D GE Washer Pack of 12
808HOSE INTAKE
808HOSE INTAKE
811WH41X365 GE Washer Water Level Pressure Switch HOSE
935GEN WD01X1434
