GJC3034GB0 01 – SECTION

Products

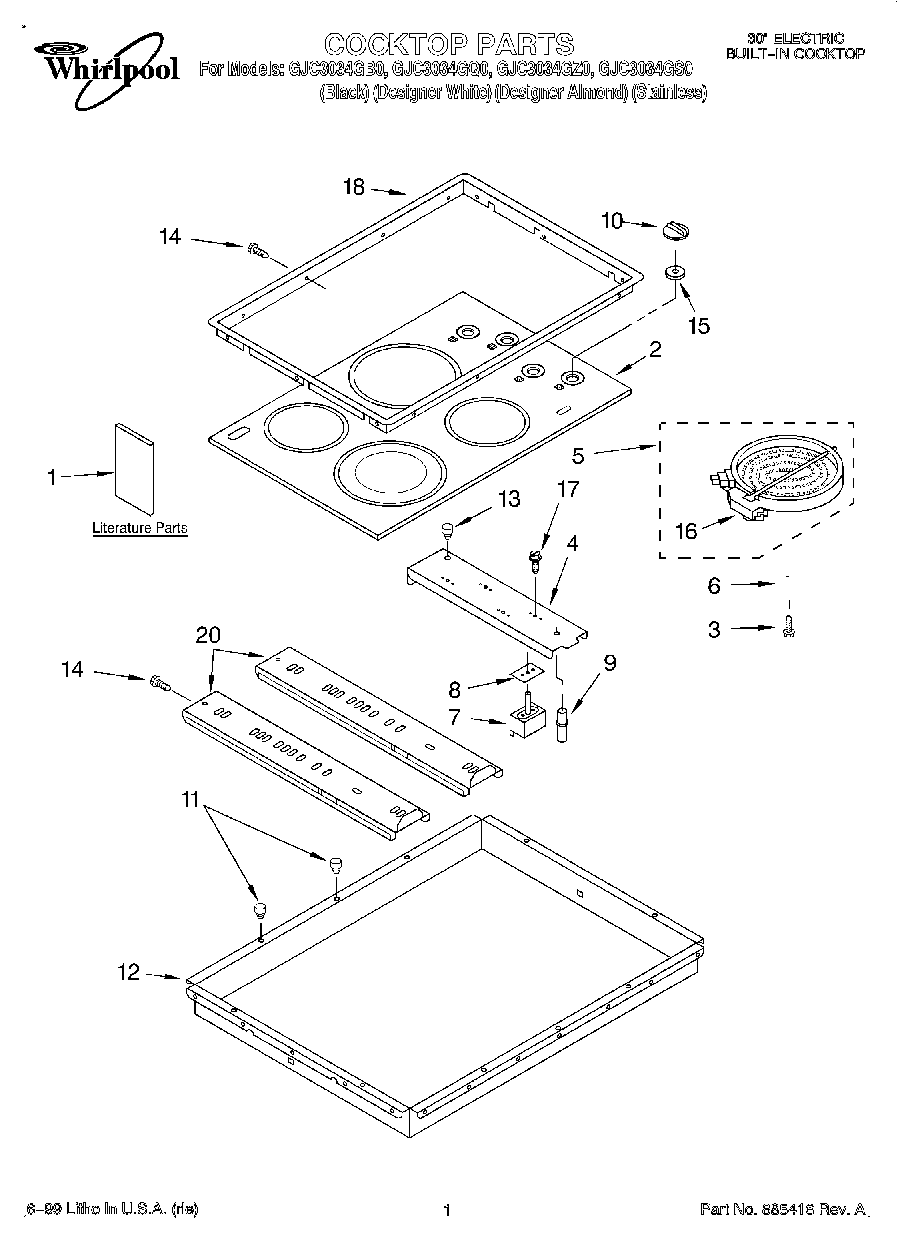

Position	Product
1	Literature Parts (Installation Instructions)
1	WPL LIT3191770
1	Literature Parts (Wiring Diagram)
2	Cooktop, Glass (Black)
2	Cooktop, Glass (Designer Almond)
2	Cooktop, Glass (Designer White)
3	WP486754 Whirlpool Compactor Screw
4	Bracket, Switch Mounting
5	Element, Surface (Includes No. 16) (1200W Right Front)
5	W10823692 Whirlpool Dual Radiant Element
5	Element, Surface (Includes No. 16) (1500W Left Rear)
5	W10823693 Whirlpool Surface Element
6	Spring, Locator
7	8203534 Whirlpool Oven Top Burner Infinite Switch
7	WP3191050 Whirlpool Infinite Switch
7	WP3191049 Infinite Switch Left Rear Right Front
8	3183956 Whirlpool Oven Seal Switch
9	Light, Indicator
10	Knob, Infinite (4) (Almond)
10	WP3196231 Whirlpool Knob
10	WP3196232 Whirlpool Knob
11	Bumper, Rubber (Black (2.75 Dia.))
12	Box, Burner
13	Bumper, Silicone
14	WP3196557 Whirlpool Screw
15	Seal, Inifinite Switch
16	Switch, Limiter (Use W/3191984 Element)
16	Limiter, Temp. (LF)
16	Limiter, Temp. (LF)
16	Switch, Limiter (Use W/3191981 Element)
17	WP486579 Whirlpool Air Conditioner Screw
18	Trim Ring, Cooktop (Black)
18	Trim Ring, Cooktop
18	Trim Ring, Cooktop (Stainless Steel)
18	Trim Ring, Cooktop (Designer Almond)
20	Rail, Element (2)
20	Wire (14 Ga. 150 c Brown)
20	WA906B Whirlpool Cooktop Glass Scraper
20	242831 Whirlpool Oven Wire
20	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
20	Wire, 25“ Roll (White 14 GA.)
20	Wire, 25` Roll (Red 14 Ga.)
20	Wire, 25` Roll (Black 14 Ga.)
20	Wire (14 Ga. 150 c Green)
20	Wire (14 Ga. 150 c Orange)
20	Wire (14 Ga. 150 c Yellow)
20	Wire (12 Ga. 150 c Black)
20	18 Ga. 80~c Rating (Red)
20	Wire (14 Ga. 200 c Brown)
20	WPL 3191547
20	1
20	WPL 3179589
20	Hardware Asm.
20	WPL 3191568
