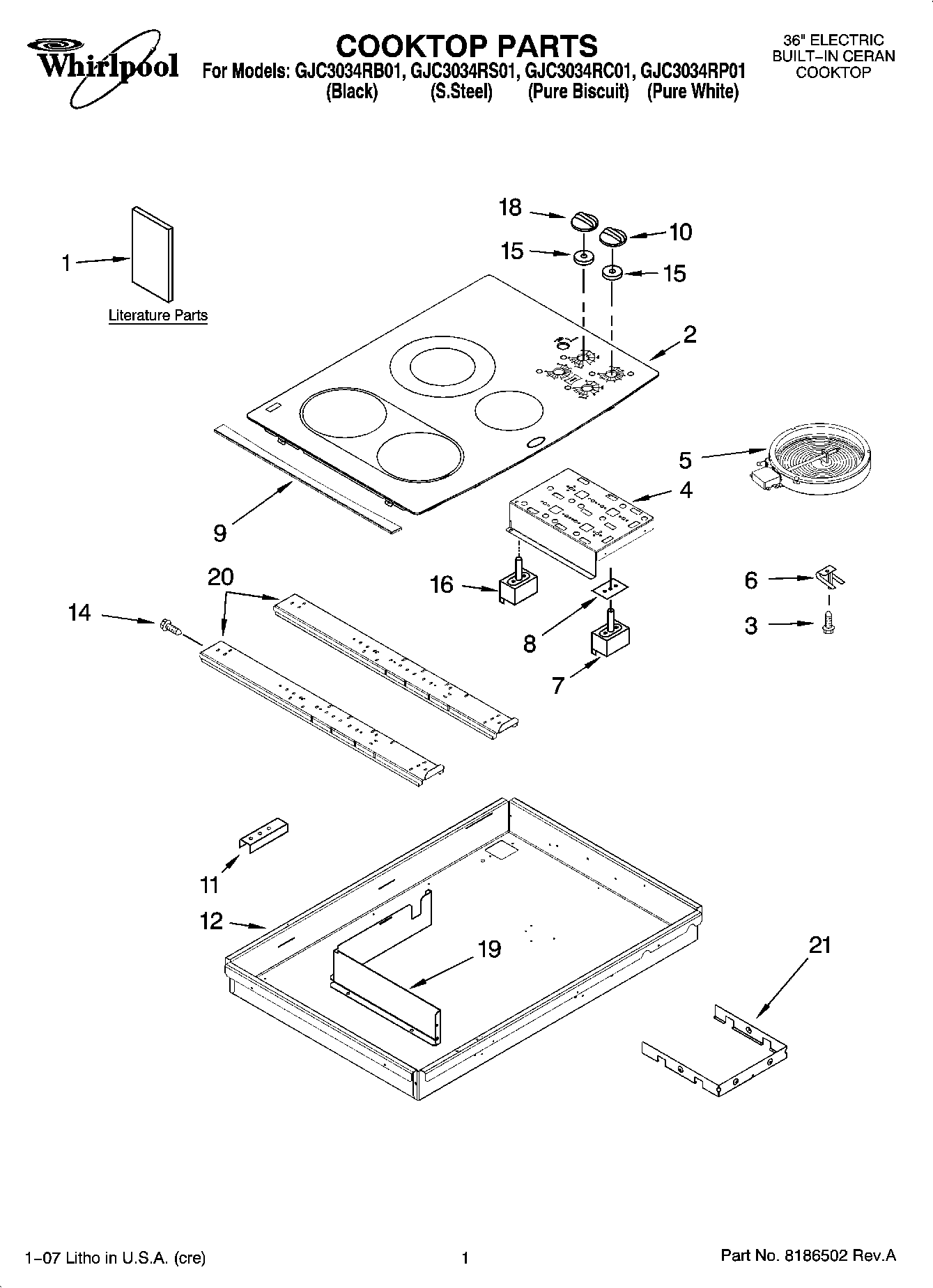

GJC3034RB01 01 – COOKTOP PARTS, OPTIONAL PARTS

GJC3034RB01 01 – COOKTOP PARTS, OPTIONAL PARTS

Written by

in

GJC3034RB01 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Green)
WPL ARI66072A7
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
WPL 4456028
8286347 Whirlpool Wire Harness
8286409 Whirlpool Wire Harness
242831 Whirlpool Oven Wire
WPL ARI66073A5
WP3400015 Whirlpool Screw
WPL ARI66075A3
WPL ARI66074A7
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
WPL 8286413
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
1Safe Cooking Tips (French)
1Wiring Diagram
1INSTALLATION INSTRUCTIONS
1Safe Cooking Tips
1Use & Care Guide
2Cooktop & Bracket Assembly (Biscuit)
2W10239865 Whirlpool Glass Maintop
2Cooktop & Bracket Assembly (White)
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
5W10823695 Whirlpool Surface Element
5W10823711 Whirlpool Surface Element Left Front and Right Rear
5W10823692 Whirlpool Dual Radiant Element
69759094 Whirlpool Spring
7WP3191050 Whirlpool Infinite Switch
7WP9759474 Whirlpool Infinite Switch
7WP3191049 Infinite Switch Left Rear Right Front
8W10491984 Whirlpool Switch Seal
9Trim, Cooktop (S.Steel Mdl Only) (LH)
9WPW10142238 Whirlpool Cooktop Trim
108286043BT Whirlpool Knob
108286043WH Whirlpool Knob
10WP8286043BL Whirlpool Knob
118186533 Whirlpool Hardware
11WP3400093 Whirlpool Screw
12Box, Burner
14WP3196557 Whirlpool Screw
158285469 Whirlpool Oven Seal Switch
16WP9762441 Whirlpool Selector Switch
188286044BL Whirlpool Knob
18Knob, Accusimer (Biscuit)
19Shield, Heat Control
20WPL 3191839
20Rail, Element (2)
203183956 Whirlpool Oven Seal Switch
21W10491985 Whirlpool Screw
21Following Parts Not Illust
214455364 Whirlpool Oven Support Bracket
21Seal
21Hardware Asm.
21Shield, Heat
