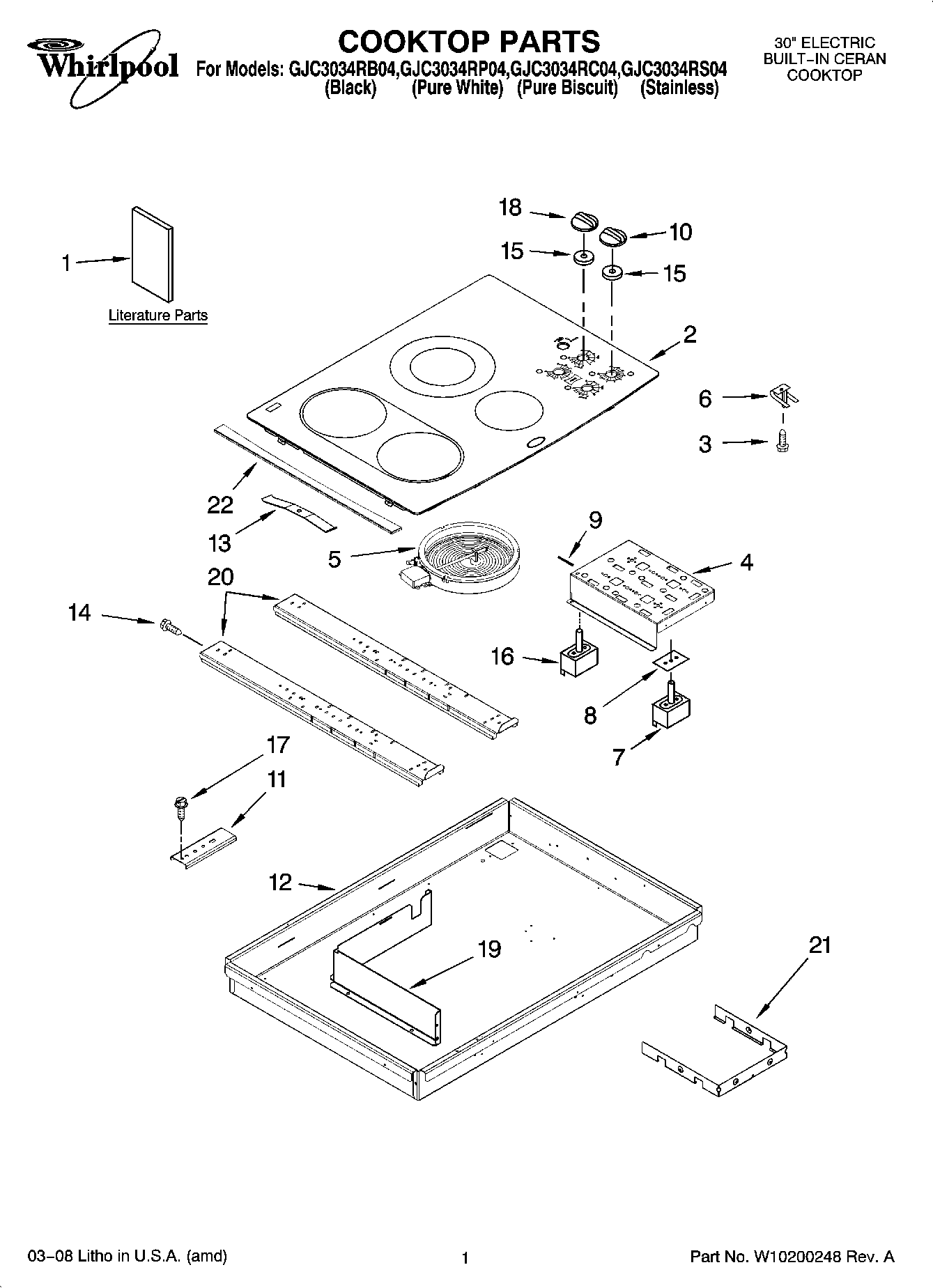

GJC3034RC04 01 – COOKTOP PARTS, OPTIONAL PARTS

GJC3034RC04 01 – COOKTOP PARTS, OPTIONAL PARTS

Written by

in

GJC3034RC04 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
242831 Whirlpool Oven Wire
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
8286409 Whirlpool Wire Harness
WPL 8286413
WP8286642 Whirlpool Tape
WPL 4456028
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
WPL ARI66108A8
WP3400015 Whirlpool Screw
WPL ARI66109A2
WPL ARI66107A4
8286347 Whirlpool Wire Harness
1Wiring Diagram
1INSTALLATION INSTRUCTIONS
1Use & Care Guide
1Installation Instructions (Undercounter Oven)
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
2Cooktop & Bracket Assembly (White)
2W10239865 Whirlpool Glass Maintop
2Cooktop & Bracket Assembly (Biscuit)
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
5W10823695 Whirlpool Surface Element
5W10823711 Whirlpool Surface Element Left Front and Right Rear
5W10823692 Whirlpool Dual Radiant Element
69759094 Whirlpool Spring
7WP9759474 Whirlpool Infinite Switch
7WP3191049 Infinite Switch Left Rear Right Front
7WP3191050 Whirlpool Infinite Switch
83183956 Whirlpool Oven Seal Switch
9W10491984 Whirlpool Switch Seal
108286043WH Whirlpool Knob
108286043BT Whirlpool Knob
10WP8286043BL Whirlpool Knob
118186533 Whirlpool Hardware
12Box, Burner
13CLIP, SPRING (FOR BRIDGE)
14WP3196557 Whirlpool Screw
158285469 Whirlpool Oven Seal Switch
16WP9762441 Whirlpool Selector Switch
17WP3400093 Whirlpool Screw
18Knob, Accusimer (Biscuit)
188286044BL Whirlpool Knob
19Shield, Heat Control
20Rail, Element (3)
20WPL 3191839
21W10491985 Whirlpool Screw
21Shield, Heat
21Seal
22Trim, Cooktop (Stainless Only) (Left)
22WPW10142238 Whirlpool Cooktop Trim
