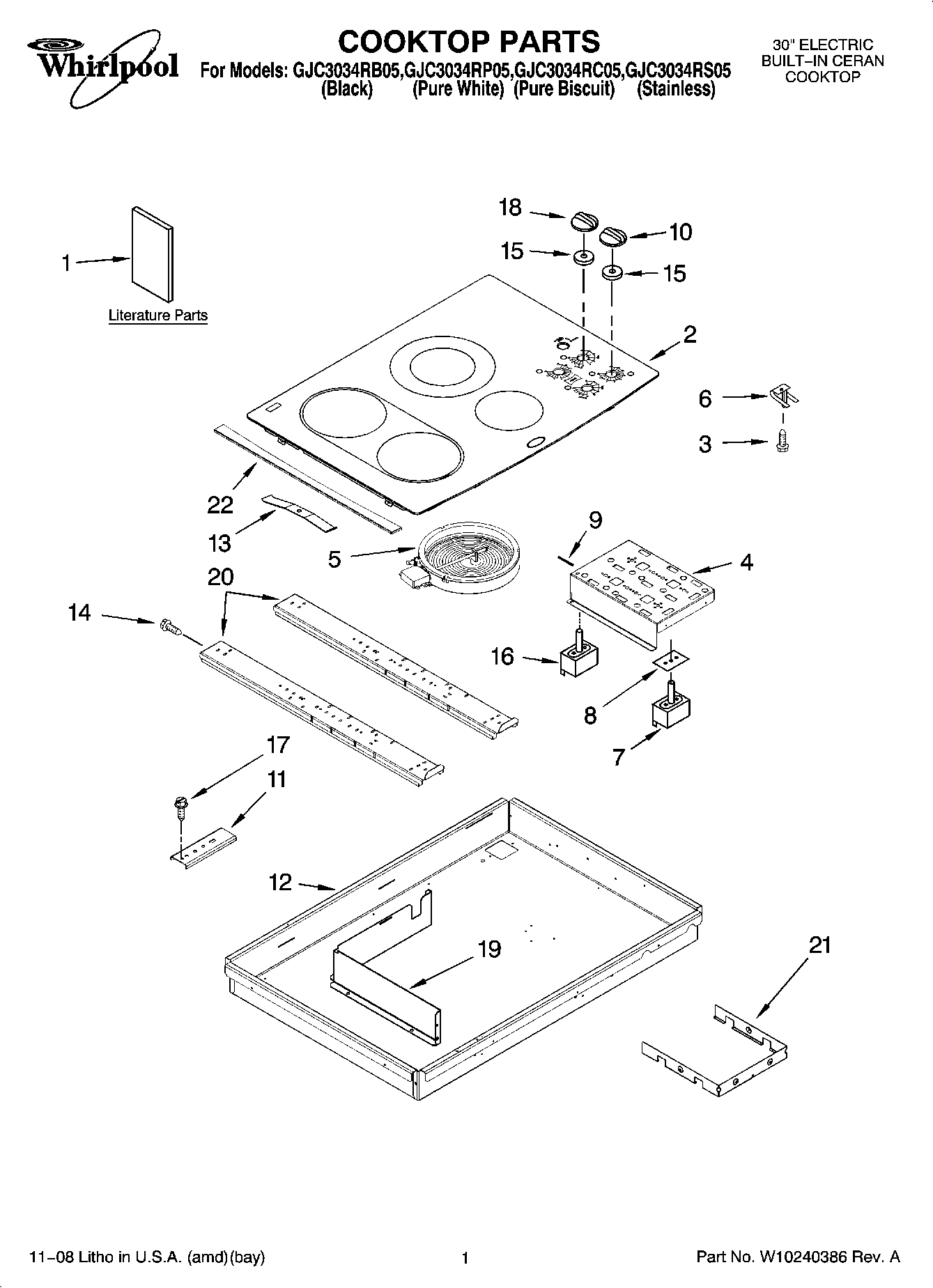

GJC3034RP05 01 – COOKTOP PARTS, OPTIONAL PARTS

GJC3034RP05 01 – COOKTOP PARTS, OPTIONAL PARTS

Written by

in

GJC3034RP05 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
WP8286642 Whirlpool Tape
WPL ARI66133A9
WP3400015 Whirlpool Screw
WPL ARI66134A8
WPL 8286413
8286347 Whirlpool Wire Harness
8286409 Whirlpool Wire Harness
1Wiring Diagram
1Use & Care Guide
1Installation Instructions (Undercounter Oven)
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
1INSTALLATION INSTRUCTIONS
2W10239865 Whirlpool Glass Maintop
2Cooktop & Bracket Assembly (White)
2Cooktop & Bracket Assembly (Biscuit)
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
5W10823692 Whirlpool Dual Radiant Element
5W10823695 Whirlpool Surface Element
5W10823711 Whirlpool Surface Element Left Front and Right Rear
69759094 Whirlpool Spring
7WP9759474 Whirlpool Infinite Switch
7WP3191049 Infinite Switch Left Rear Right Front
7WP3191050 Whirlpool Infinite Switch
83183956 Whirlpool Oven Seal Switch
9W10491984 Whirlpool Switch Seal
108286043BT Whirlpool Knob
10WP8286043BL Whirlpool Knob
108286043WH Whirlpool Knob
118186533 Whirlpool Hardware
12Box, Burner
13CLIP, SPRING (FOR BRIDGE)
14WP3196557 Whirlpool Screw
158285469 Whirlpool Oven Seal Switch
16WP9762441 Whirlpool Selector Switch
17WP3400093 Whirlpool Screw
188286044BL Whirlpool Knob
18Knob, Accusimer (Biscuit)
19Shield, Heat Control
20Rail, Element (3)
20WPL 3191839
21Seal
21W10491985 Whirlpool Screw
21Shield, Heat
22WPW10142238 Whirlpool Cooktop Trim
22Trim, Cooktop (Stainless Only) (Left)
