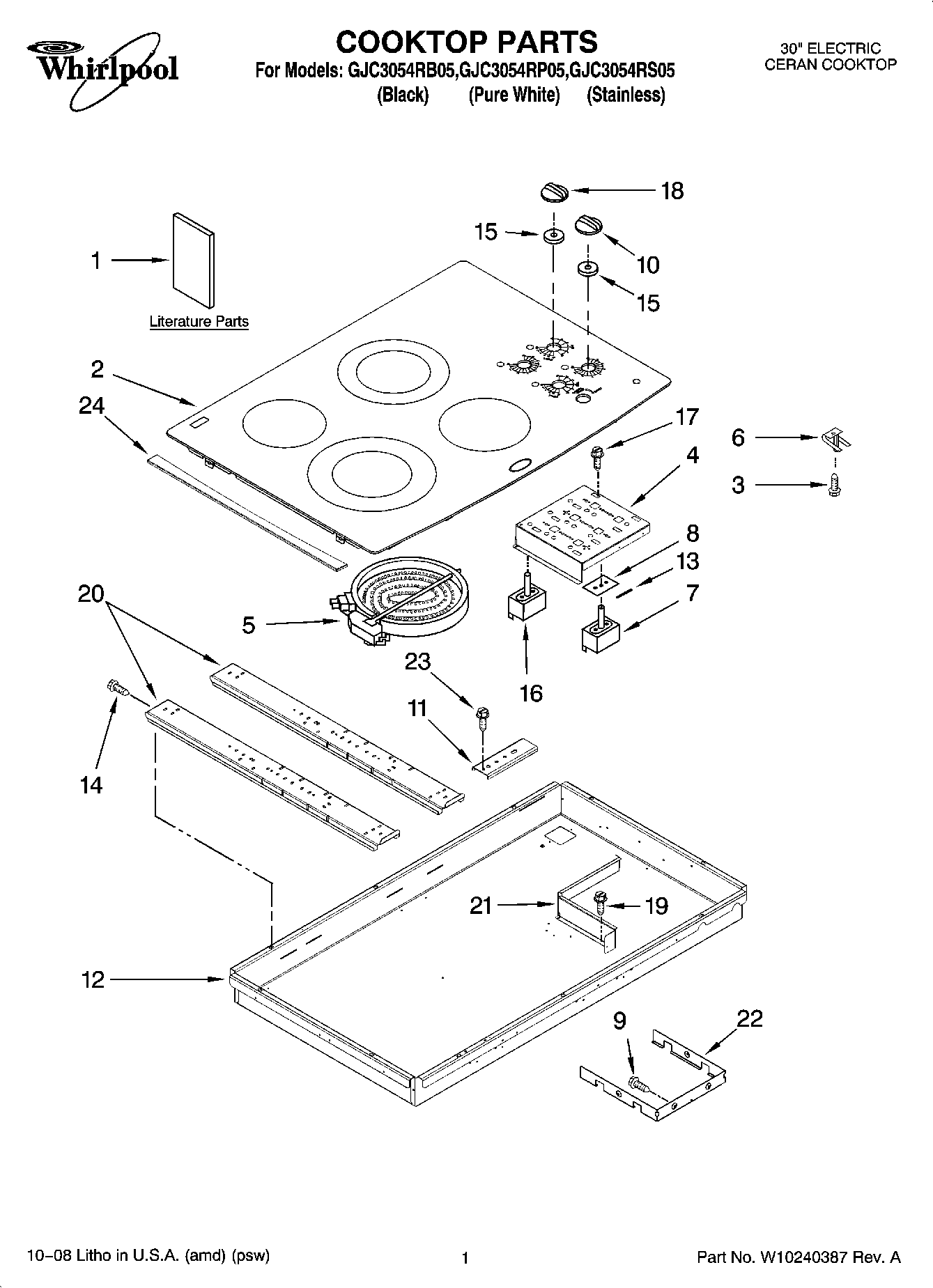

GJC3054RB05 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

Position	Product
	Following Parts Not Illustrated
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	WP8286642 Whirlpool Tape
	ACCESSORY PARTS
	WIRING HARN
	Following Parts Not Illustrated
	WPL 8286413
	WPL 8286408
	WP3400015 Whirlpool Screw
	8286347 Whirlpool Wire Harness
1	Use & Care Guide
1	Wiring Diagram
1	Installation Instructions (Undercounter Oven)
1	Safer Cooking Tips (French)
1	SAFER COOKING TIPS (ENGLISH
1	INSTALLATION INSTRUCTIONS
2	Cooktop & Bracket Assembly (Black)
2	Cooktop & Bracket Assembly (White)
3	WP486754 Whirlpool Compactor Screw
4	Bracket, Switch Mounting
5	W10823711 Whirlpool Surface Element Left Front and Right Rear
5	ELEMENT, SURFACE 2000/1000W RR
5	W10823692 Whirlpool Dual Radiant Element
5	W10823699 Whirlpool Right Front Surface Element
6	9759094 Whirlpool Spring
7	WP3191049 Infinite Switch Left Rear Right Front
7	WP9759474 Whirlpool Infinite Switch
8	3183956 Whirlpool Oven Seal Switch
9	W10491985 Whirlpool Screw
10	8286043WH Whirlpool Knob
10	WP8286043BL Whirlpool Knob
11	8186533 Whirlpool Hardware
12	Box, Burner
13	W10491984 Whirlpool Switch Seal
15	8285469 Whirlpool Oven Seal Switch
16	WP9762441 Whirlpool Selector Switch
17	WP486579 Whirlpool Air Conditioner Screw
18	8286044BL Whirlpool Knob
20	Rail, Element (3)
21	Shield, Heat Control
21	WPL 3191839
21	WP3196557 Whirlpool Screw
22	Shield, Heat
22	Seal
23	WP3400093 Whirlpool Screw
24	WPW10142238 Whirlpool Cooktop Trim
24	Trim, Cooktop (Stainless Only) (Left)
