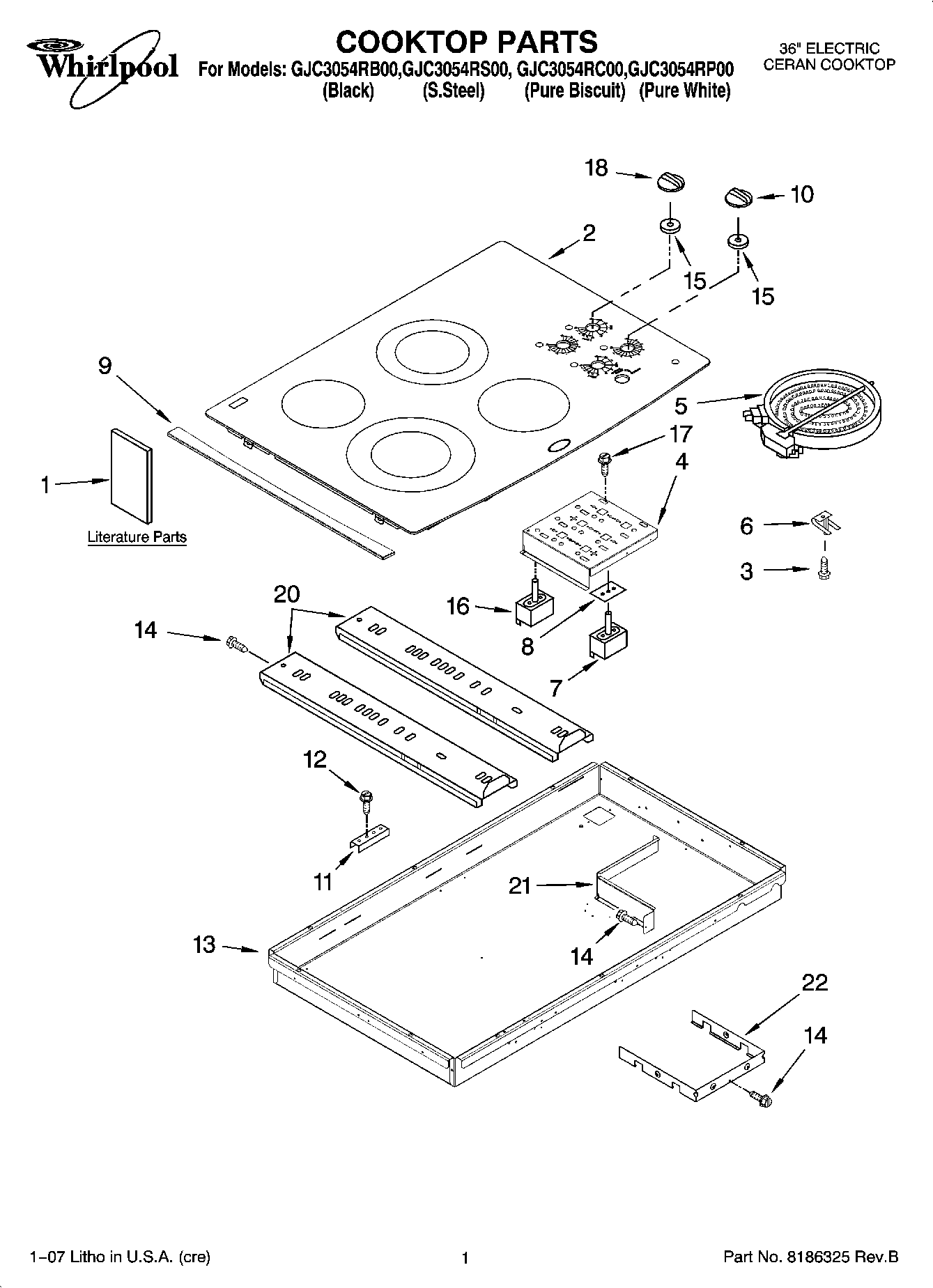

GJC3054RC00 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
WPL ARI66186A6
WPL ARI66185A2
WPL ARI66184A1
WPL 8286408
WPL 8286413
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
242831 Whirlpool Oven Wire
WP3400015 Whirlpool Screw
8286347 Whirlpool Wire Harness
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
WPL ARI66183A2
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
1Wiring Diagram
1Use & Care Guide
1INSTALLATION INSTRUCTIONS
1Safe Cooking Tips
1Safe Cooking Tips (French)
2Cooktop & Bracket Assembly (Pure Biscuit)
2Cooktop & Bracket Assembly (S.Steel)
2Cooktop & Bracket Assembly (Black)
2Cooktop & Bracket Assembly (Pure White)
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
5W10823699 Whirlpool Right Front Surface Element
5W10823692 Whirlpool Dual Radiant Element
5ELEMENT, SURFACE 2000/1000W RR
5W10823711 Whirlpool Surface Element Left Front and Right Rear
69759094 Whirlpool Spring
7WP9759474 Whirlpool Infinite Switch
7WP3191050 Whirlpool Infinite Switch
7WP3191049 Infinite Switch Left Rear Right Front
83183956 Whirlpool Oven Seal Switch
9Trim, Cooktop (S.Steel Mdl Only) (LH)
9WPW10142238 Whirlpool Cooktop Trim
10WP8286043BL Whirlpool Knob
108286043WH Whirlpool Knob
108286043BT Whirlpool Knob
118186533 Whirlpool Hardware
12WP3400093 Whirlpool Screw
13Box, Burner
14WP3196557 Whirlpool Screw
158285469 Whirlpool Oven Seal Switch
16WP9762441 Whirlpool Selector Switch
17WP486579 Whirlpool Air Conditioner Screw
18Knob, Accusimer (Biscuit)
188286044BL Whirlpool Knob
20Rail, Element (2)
21WPL 3191839
21Shield, Heat Control
22Following Parts Not Illustrated
22Shield, Heat
22Seal
224455364 Whirlpool Oven Support Bracket
22Hardware Asm.
