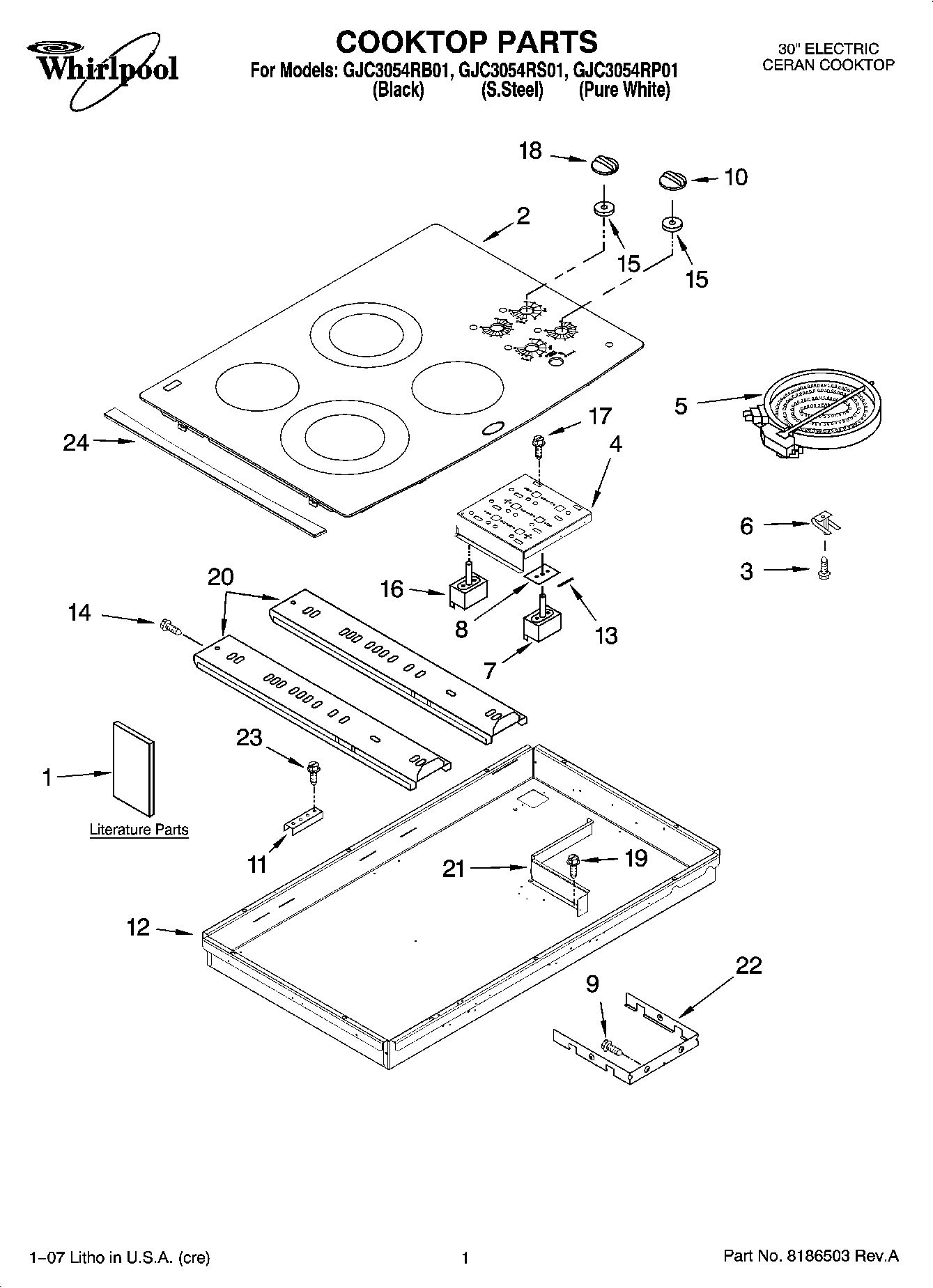

GJC3054RP01 01 – COOKTOP PARTS, OPTIONAL PARTS

GJC3054RP01 01 – COOKTOP PARTS, OPTIONAL PARTS

Written by

in

GJC3054RP01 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Orange)
WPL ARI66194A4
Wire (14 Ga. 150 c Brown)
242831 Whirlpool Oven Wire
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPL ARI66193A2
WPL ARI66192A4
Wire, 25` Roll (Red 14 Ga.)
8286347 Whirlpool Wire Harness
Wire, 25` Roll (Black 14 Ga.)
WPL 8286413
WP3400015 Whirlpool Screw
WPL 8286408
1INSTALLATION INSTRUCTIONS
1Wiring Diagram
1Safe Cooking Tips (French)
1Safe Cooking Tips
1Use & Care Guide
2Cooktop & Bracket Assembly (Black)
2Cooktop & Bracket Assembly (Pure White)
2Cooktop & Bracket Assembly (S. Steel)
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
5ELEMENT, SURFACE 2000/1000W RR
5W10823692 Whirlpool Dual Radiant Element
5W10823711 Whirlpool Surface Element Left Front and Right Rear
5W10823699 Whirlpool Right Front Surface Element
69759094 Whirlpool Spring
7WP3191050 Whirlpool Infinite Switch
7WP9759474 Whirlpool Infinite Switch
7WP3191049 Infinite Switch Left Rear Right Front
83183956 Whirlpool Oven Seal Switch
9W10491985 Whirlpool Screw
10WP8286043BL Whirlpool Knob
108286043WH Whirlpool Knob
118186533 Whirlpool Hardware
12Box, Burner
13W10491984 Whirlpool Switch Seal
158285469 Whirlpool Oven Seal Switch
16WP9762441 Whirlpool Selector Switch
17WP486579 Whirlpool Air Conditioner Screw
18Knob, Accusimer (Biscuit)
188286044BL Whirlpool Knob
20Rail, Element (2)
21WPL 3191839
21Shield, Heat Control
21WP3196557 Whirlpool Screw
22Shield, Heat
22Seal
23WP3400093 Whirlpool Screw
244455364 Whirlpool Oven Support Bracket
24WPW10142238 Whirlpool Cooktop Trim
24Trim, Cooktop (S.Steel Mdl Only) (LH)
24Hardware Asm.
