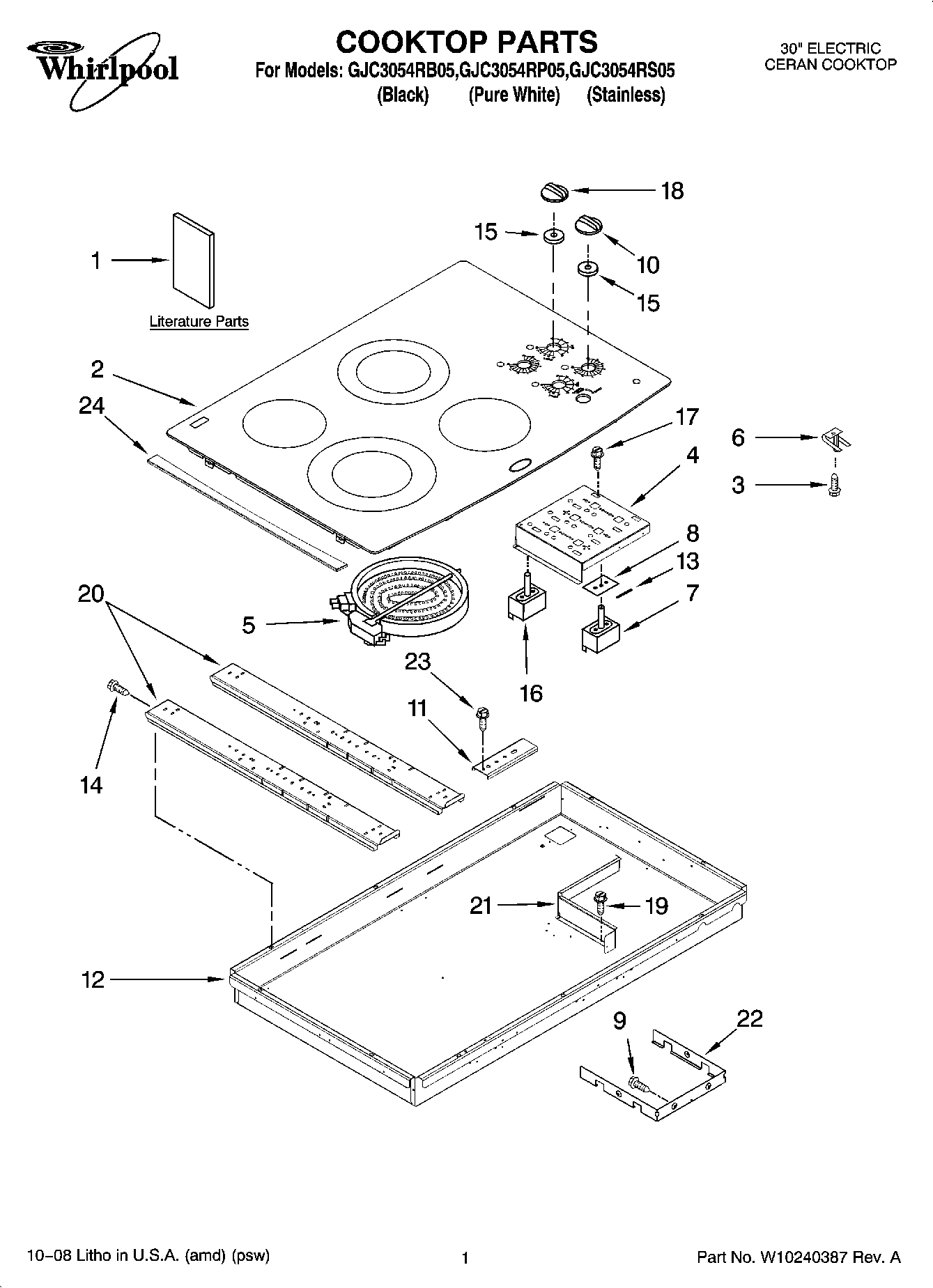

GJC3054RP05 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

Position	Product
	8286347 Whirlpool Wire Harness
	WPL 8286408
	WPL 8286413
	Following Parts Not Illustrated
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	ACCESSORY PARTS
	WIRING HARN
	WP8286642 Whirlpool Tape
	Following Parts Not Illustrated
	WP3400015 Whirlpool Screw
1	Wiring Diagram
1	SAFER COOKING TIPS (ENGLISH
1	Safer Cooking Tips (French)
1	INSTALLATION INSTRUCTIONS
1	Use & Care Guide
1	Installation Instructions (Undercounter Oven)
2	Cooktop & Bracket Assembly (Black)
2	Cooktop & Bracket Assembly (White)
3	WP486754 Whirlpool Compactor Screw
4	Bracket, Switch Mounting
5	W10823711 Whirlpool Surface Element Left Front and Right Rear
5	W10823699 Whirlpool Right Front Surface Element
5	W10823692 Whirlpool Dual Radiant Element
5	ELEMENT, SURFACE 2000/1000W RR
6	9759094 Whirlpool Spring
7	WP3191049 Infinite Switch Left Rear Right Front
7	WP9759474 Whirlpool Infinite Switch
8	3183956 Whirlpool Oven Seal Switch
9	W10491985 Whirlpool Screw
10	8286043WH Whirlpool Knob
10	WP8286043BL Whirlpool Knob
11	8186533 Whirlpool Hardware
12	Box, Burner
13	W10491984 Whirlpool Switch Seal
15	8285469 Whirlpool Oven Seal Switch
16	WP9762441 Whirlpool Selector Switch
17	WP486579 Whirlpool Air Conditioner Screw
18	8286044BL Whirlpool Knob
20	Rail, Element (3)
21	WPL 3191839
21	WP3196557 Whirlpool Screw
21	Shield, Heat Control
22	Shield, Heat
22	Seal
23	WP3400093 Whirlpool Screw
24	Trim, Cooktop (Stainless Only) (Left)
24	WPW10142238 Whirlpool Cooktop Trim
