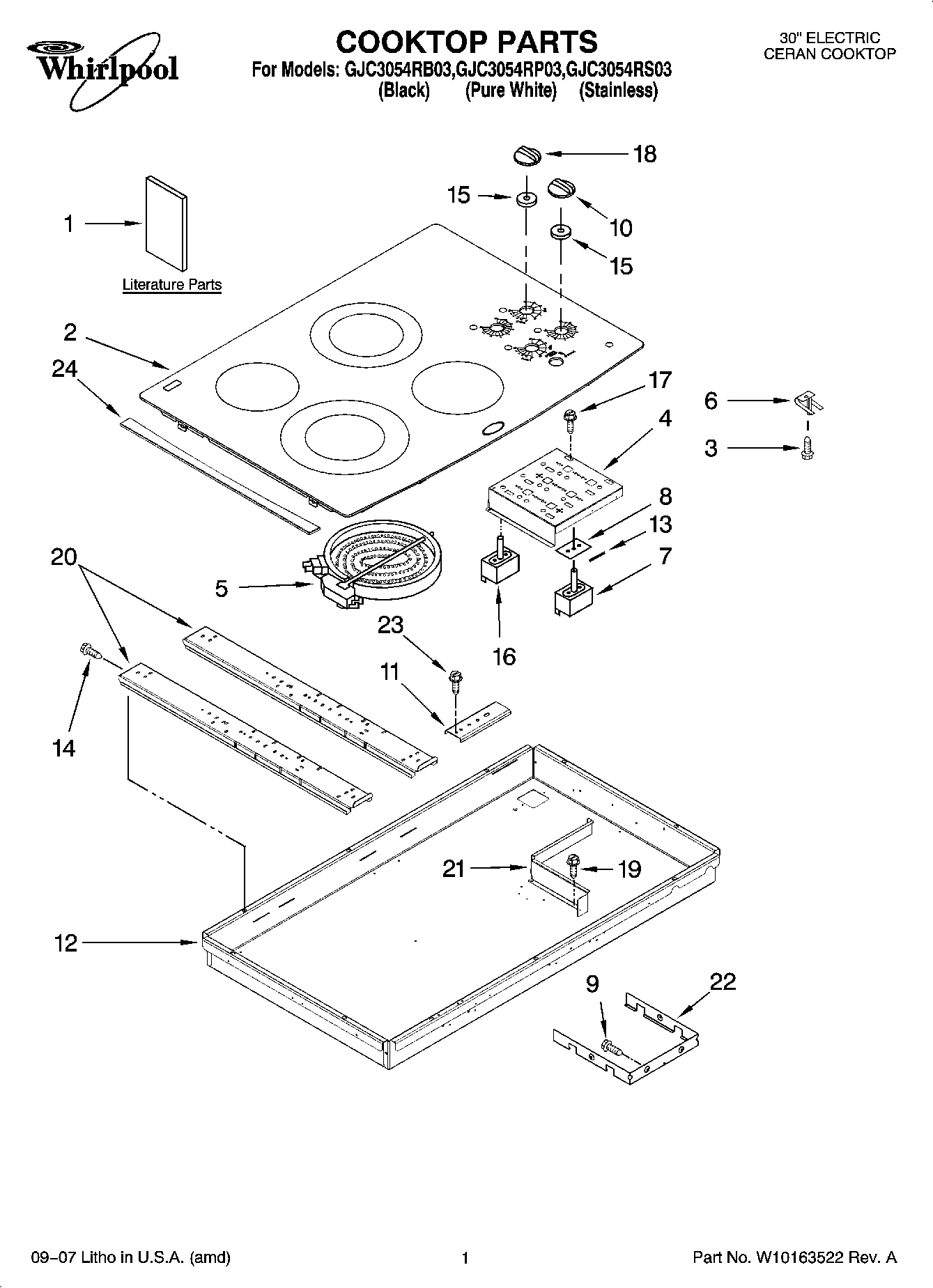

GJC3054RS03 01 – COOKTOP PARTS, OPTIONAL PARTS

GJC3054RS03 01 – COOKTOP PARTS, OPTIONAL PARTS

Written by

in

GJC3054RS03 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
Wire (14 Ga. 150 c Brown)
WPL 8286413
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
WPL 8286408
242831 Whirlpool Oven Wire
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPL ARI66225A9
WPL ARI66223A1
8286347 Whirlpool Wire Harness
WPL ARI66224A7
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
WP3400015 Whirlpool Screw
WPL ARI66222A3
1Use & Care Guide
1Installation Instructions (Undercounter Oven)
1Safe Cooking Tips (French)
1INSTALLATION INSTRUCTIONS
1Safe Cooking Tips
1Wiring Diagram
2Cooktop & Bracket Assembly (Black)
2Cooktop & Bracket Assembly (White)
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
5ELEMENT, SURFACE 2000/1000W RR
5W10823699 Whirlpool Right Front Surface Element
5W10823692 Whirlpool Dual Radiant Element
5W10823711 Whirlpool Surface Element Left Front and Right Rear
69759094 Whirlpool Spring
7WP3191049 Infinite Switch Left Rear Right Front
7WP3191050 Whirlpool Infinite Switch
7WP9759474 Whirlpool Infinite Switch
83183956 Whirlpool Oven Seal Switch
9W10491985 Whirlpool Screw
108286043WH Whirlpool Knob
10WP8286043BL Whirlpool Knob
118186533 Whirlpool Hardware
12Box, Burner
13W10491984 Whirlpool Switch Seal
158285469 Whirlpool Oven Seal Switch
16WP9762441 Whirlpool Selector Switch
17WP486579 Whirlpool Air Conditioner Screw
188286044BL Whirlpool Knob
20Rail, Element (3)
21Shield, Heat Control
21WP3196557 Whirlpool Screw
21WPL 3191839
22Seal
22Shield, Heat
23WP3400093 Whirlpool Screw
24WP8286642 Whirlpool Tape
24Trim, Cooktop (Stainless Only) (Left)
24WPW10142238 Whirlpool Cooktop Trim
