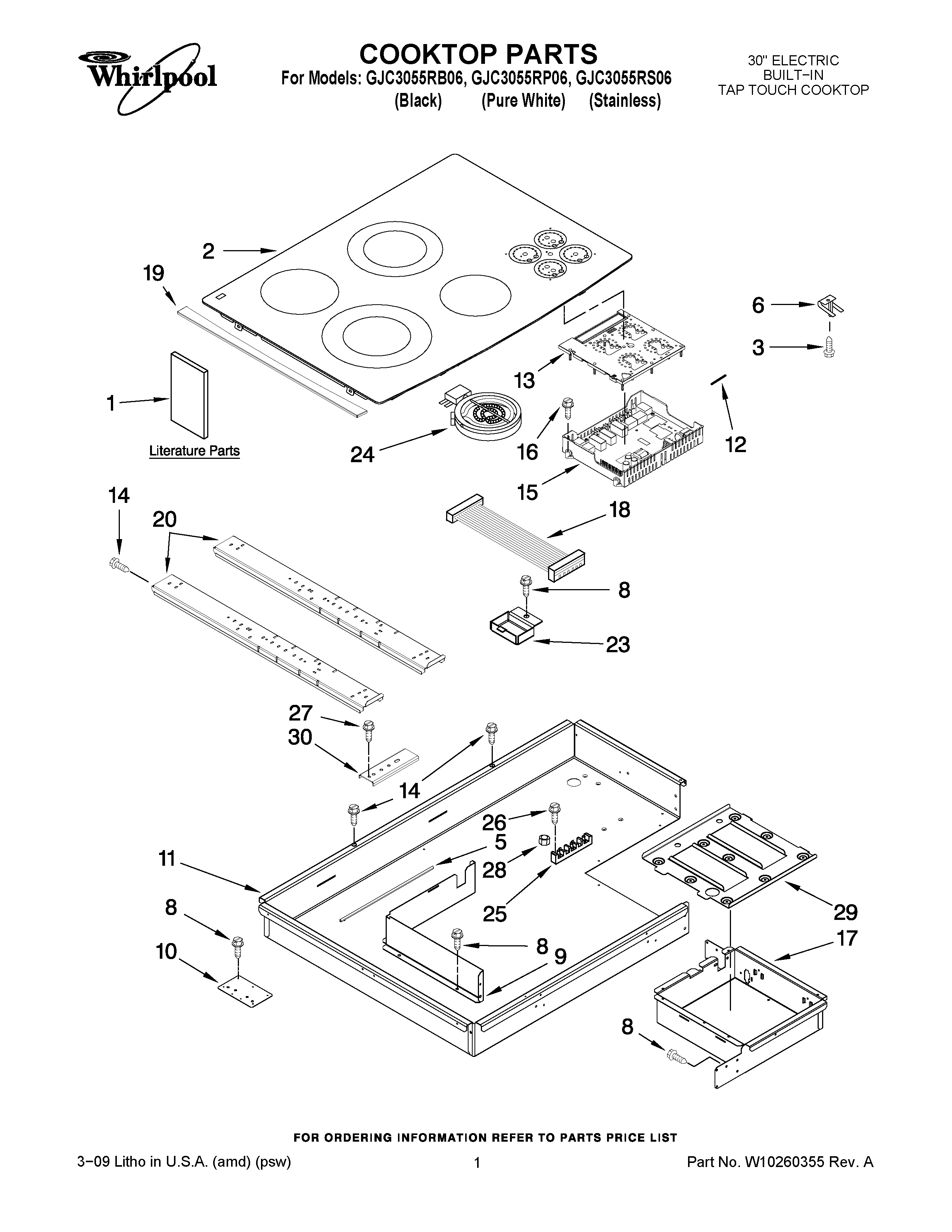

GJC3055RB06 01 – COOKTOP PARTS

Products

Position	Product
NI	WP8286642 Whirlpool Tape
1	Tech Sheet
1	Use & Care Guide
1	Installation Instructions (Undercounter Oven)
1	SAFER COOKING TIPS (ENGLISH
1	Safer Cooking Tips (French)
1	INSTALLATION INSTRUCTIONS
2	Cooktop, Glass (White)
2	COOKTOP, GLASS (STAINLESS)
2	COOKTOP, GLASS (BLACK)
3	WP486754 Whirlpool Compactor Screw
5	Seal, Heat
6	9759094 Whirlpool Spring
8	W10491985 Whirlpool Screw
9	Wall, Inside
10	Bracket, Bottom
11	Box, Burner
12	W10491984 Whirlpool Switch Seal
13	Control, Burner Module (Black)
13	WP8286134 Whirlpool Electronic Control Board
14	WP3196557 Whirlpool Screw
15	WP8286643 Whirlpool Electronic Control Board
16	WP4449745 Whirlpool Screw
17	Box, Control
18	W10155097 Whirlpool Wire Harness
19	Trim, Cooktop (Stainless Only) (Left)
19	WPW10142238 Whirlpool Cooktop Trim
20	Rail, Element (3)
23	8285593 Whirlpool Oven Wire Cover
24	WP8285845 Whirlpool Surface Element
24	Element, Surface (2000/1000W RR)
24	WP4453907 Whirlpool Surface Element
24	WP8285230 Whirlpool Surface Element
25	WP8203546 Whirlpool Terminal Block
26	WP3196163 Whirlpool Screw
27	WP3400093 Whirlpool Screw
28	Nut
29	Support, Module
30	8186533 Whirlpool Hardware
