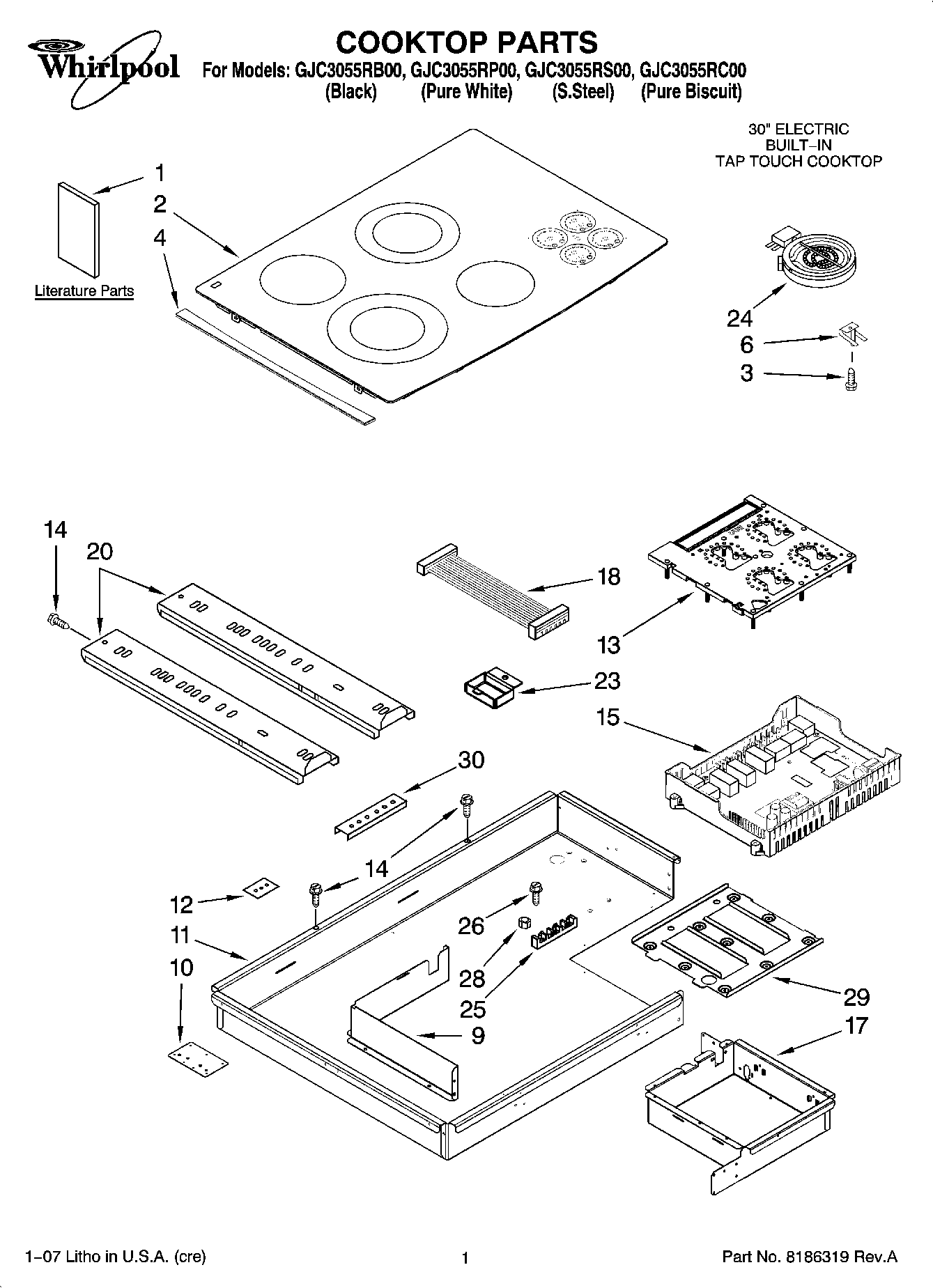

GJC3055RC00 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
Clip, Harnes
Bracket, Support (2)
WPL ARI66265A7
WPL ARI66267A1
Hardware Asm.
242831 Whirlpool Oven Wire
WPL ARI66264A5
WPL 8285951
WPL ARI66268A2
WP3400015 Whirlpool Screw
WPL 8286379
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
WPL ARI66263A5
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPL ARI66266A4
1Use & Care Guide
1Tech Sheet
1Safe Cooking Tips
1Wiring Diagram
1INSTALLATION INSTRUCTIONS
2Cooktop, Glass (Biscuit)
2Cooktop, Glass (Stainless Steel)
2Cooktop, Glass (White)
2Cooktop, Glass (Black)
3WP486754 Whirlpool Compactor Screw
4WPW10142238 Whirlpool Cooktop Trim
4Trim, Cooktop (S.Steel Mdl Only) (LH)
69759094 Whirlpool Spring
9Wall, Inside
10Bracket, Bottom
11Box, Burner
12W10491984 Whirlpool Switch Seal
13WP8286134 Whirlpool Electronic Control Board
13Control, Burner Module (Black)
14WP3196557 Whirlpool Screw
15WP4449745 Whirlpool Screw
15WP8286643 Whirlpool Electronic Control Board
17Box, Touch Control
18W10155097 Whirlpool Wire Harness
20Rail, Element (2)
23W10491985 Whirlpool Screw
238285593 Whirlpool Oven Wire Cover
24WP8285845 Whirlpool Surface Element
24WP8285230 Whirlpool Surface Element
24WP4453907 Whirlpool Surface Element
24Element, Surface (2000/1000W RR)
25WP8203546 Whirlpool Terminal Block
26WP3196163 Whirlpool Screw
28WP112432 Whirlpool Nut Assembly
29Support, Module
308186533 Whirlpool Hardware
30WP3400093 Whirlpool Screw
