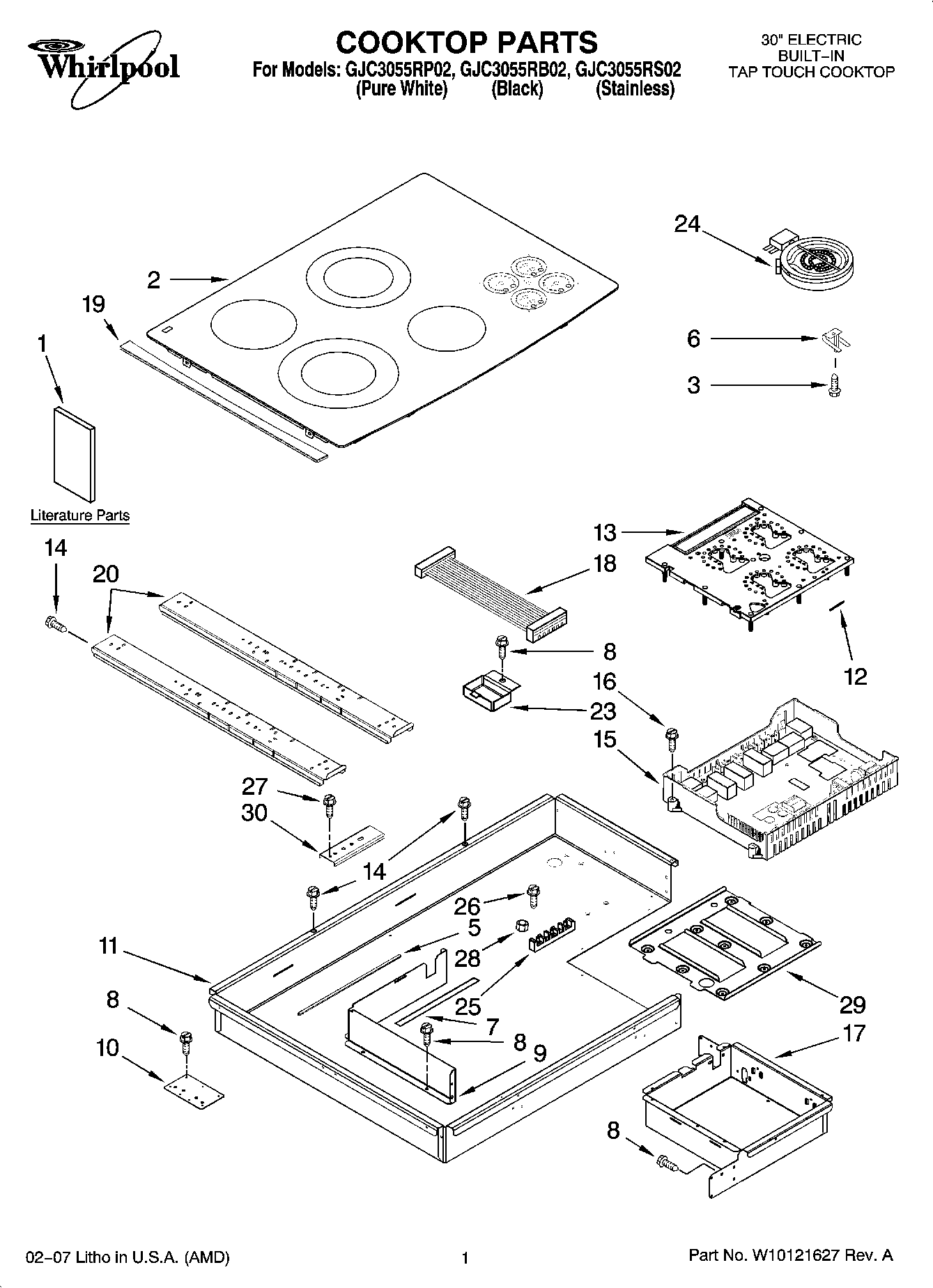

GJC3055RP02 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

GJC3055RP02 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

GJC3055RP02 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
Wire (14 Ga. 150 c Brown)
WPL 8285951
242831 Whirlpool Oven Wire
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
Clip, Harnes
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPL 8286379
WPL ARI66284A3
Wire, 25` Roll (Red 14 Ga.)
WPL ARI66283A6
Wire, 25` Roll (Black 14 Ga.)
WP3400015 Whirlpool Screw
WPL ARI66282A4
1Installation Instructions (Undercounter Oven)
1Safe Cooking Tips (French)
1Safe Cooking Tips
1Tech Sheet
1Use & Care Guide
1INSTALLATION INSTRUCTIONS
2Cooktop, Glass (Stainless)
2Cooktop, Glass (Black)
2Cooktop, Glass (White)
3WP486754 Whirlpool Compactor Screw
5Seal, Heat
69759094 Whirlpool Spring
7Seal, Foam
8W10491985 Whirlpool Screw
9Wall, Inside
10Bracket, Bottom
11Box, Burner
12W10491984 Whirlpool Switch Seal
13WP8286134 Whirlpool Electronic Control Board
13Control, Burner Module (Black)
14WP3196557 Whirlpool Screw
15WP8286643 Whirlpool Electronic Control Board
16WP4449745 Whirlpool Screw
17Box, Control
18W10155097 Whirlpool Wire Harness
19Trim, Cooktop (S.Steel Mdl Only) (LH)
19WPW10142238 Whirlpool Cooktop Trim
20Rail, Element (3)
238285593 Whirlpool Oven Wire Cover
24Element, Surface (2000/1000W RR)
24WP8285845 Whirlpool Surface Element
24WP8285230 Whirlpool Surface Element
24WP4453907 Whirlpool Surface Element
25WP8203546 Whirlpool Terminal Block
26WP3196163 Whirlpool Screw
27WP3400093 Whirlpool Screw
28WP112432 Whirlpool Nut Assembly
29Support, Module
30FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous
30Bracket, Support (2)
30WP8286642 Whirlpool Tape
308186533 Whirlpool Hardware
30Hardware Asm.
