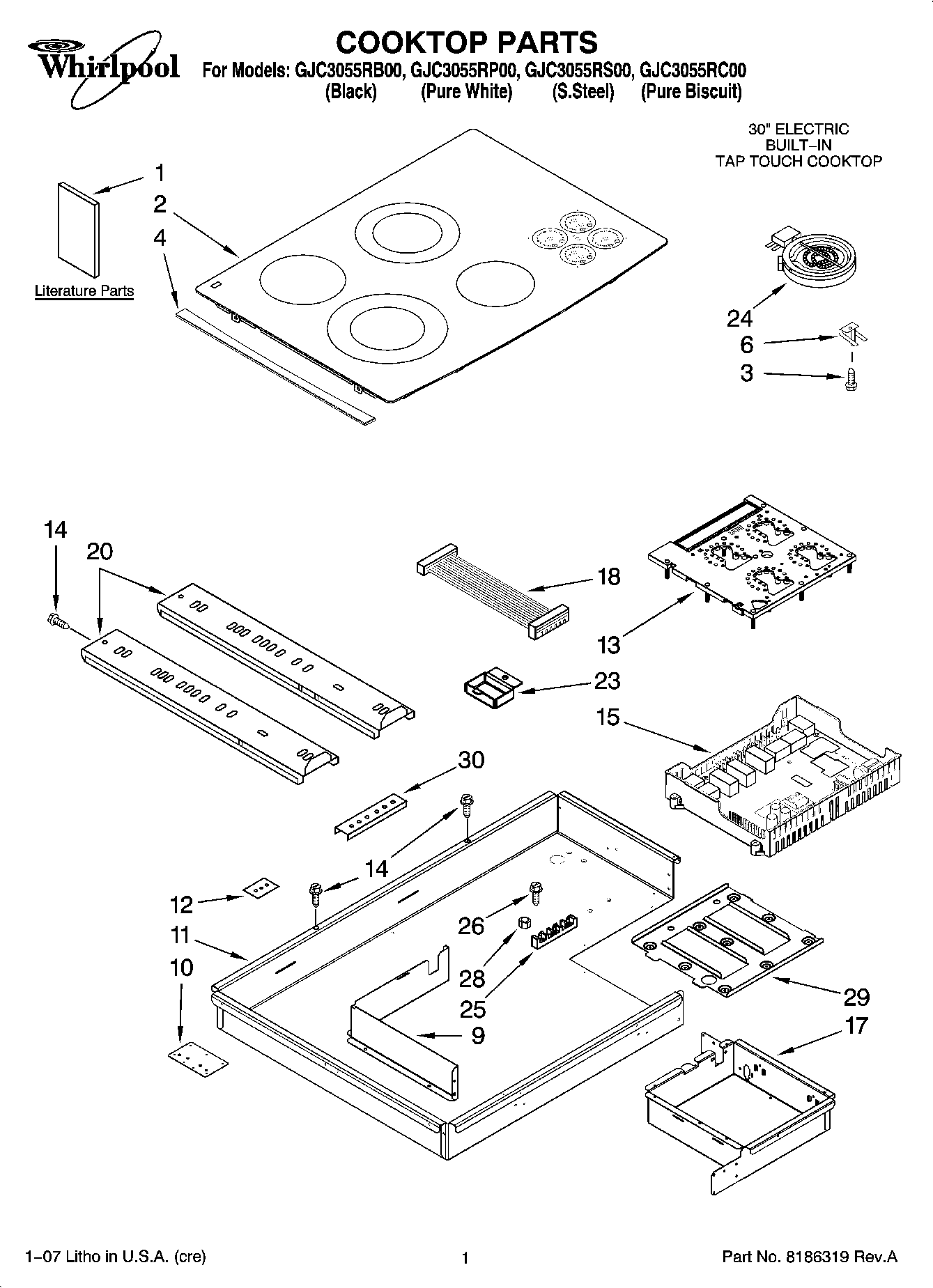

GJC3055RS00 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

GJC3055RS00 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

GJC3055RS00 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
WPL ARI66302A6
WPL 8286379
Bracket, Support (2)
Clip, Harnes
Hardware Asm.
WPL 8285951
Wire (14 Ga. 150 c Green)
Wire, 25` Roll (Black 14 Ga.)
WPL ARI66298A2
WP3400015 Whirlpool Screw
WPL ARI66299A9
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
WPL ARI66297A8
WPL ARI66300A5
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPL ARI66301A9
242831 Whirlpool Oven Wire
1INSTALLATION INSTRUCTIONS
1Wiring Diagram
1Tech Sheet
1Safe Cooking Tips
1Use & Care Guide
2Cooktop, Glass (Biscuit)
2Cooktop, Glass (Black)
2Cooktop, Glass (White)
2Cooktop, Glass (Stainless Steel)
3WP486754 Whirlpool Compactor Screw
4WPW10142238 Whirlpool Cooktop Trim
4Trim, Cooktop (S.Steel Mdl Only) (LH)
69759094 Whirlpool Spring
9Wall, Inside
10Bracket, Bottom
11Box, Burner
12W10491984 Whirlpool Switch Seal
13Control, Burner Module (Black)
13WP8286134 Whirlpool Electronic Control Board
14WP3196557 Whirlpool Screw
15WP8286643 Whirlpool Electronic Control Board
15WP4449745 Whirlpool Screw
17Box, Touch Control
18W10155097 Whirlpool Wire Harness
20Rail, Element (2)
238285593 Whirlpool Oven Wire Cover
23W10491985 Whirlpool Screw
24WP8285230 Whirlpool Surface Element
24WP8285845 Whirlpool Surface Element
24Element, Surface (2000/1000W RR)
24WP4453907 Whirlpool Surface Element
25WP8203546 Whirlpool Terminal Block
26WP3196163 Whirlpool Screw
28WP112432 Whirlpool Nut Assembly
29Support, Module
308186533 Whirlpool Hardware
30WP3400093 Whirlpool Screw
