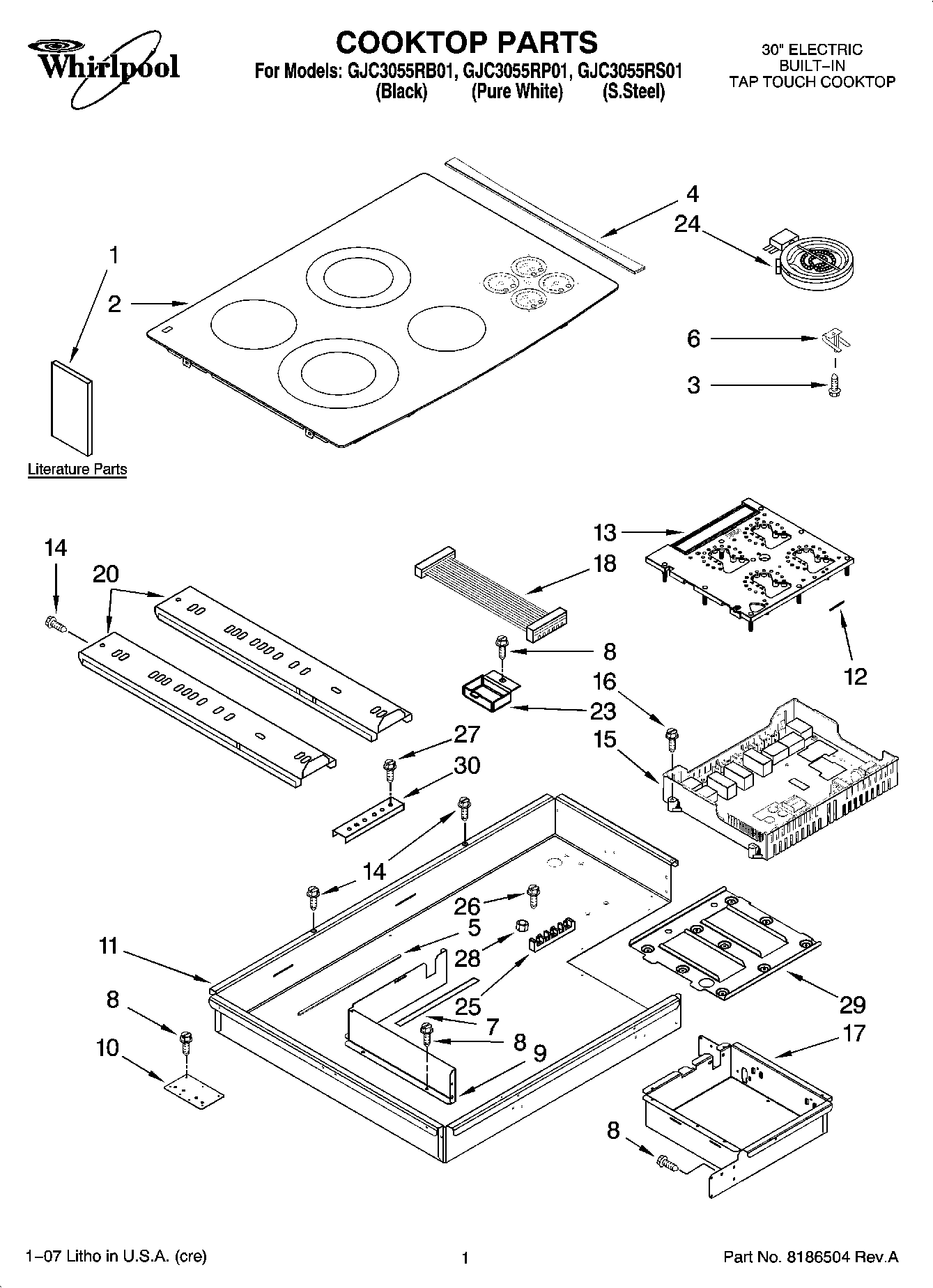

GJC3055RS01 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

GJC3055RS01 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

GJC3055RS01 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
Wire (14 Ga. 150 c Green)
WPL ARI66308A7
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
WPL 8286379
Bracket, Support (2)
WPL 8285951
Hardware Asm.
Clip, Harnes
Wire (14 Ga. 150 c Brown)
242831 Whirlpool Oven Wire
WP3400015 Whirlpool Screw
WPL ARI66304A1
WPL ARI66306A5
WPL ARI66305A2
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
WPL ARI66303A5
WPL ARI66307A7
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
1INSTALLATION INSTRUCTIONS
1Tech Sheet
1Safe Cooking Tips (French)
1Safe Cooking Tips
1Use & Care Guide
2Cooktop, Glass (Black)
2Cooktop, Glass (Stainless Steel)
2Cooktop, Glass (White)
3WP486754 Whirlpool Compactor Screw
4WPW10142238 Whirlpool Cooktop Trim
4Trim, Cooktop (S.Steel Mdl Only) (LH)
5Seal, Heat
69759094 Whirlpool Spring
7Seal, Foam
8W10491985 Whirlpool Screw
9Wall, Inside
10Bracket, Bottom
11Box, Burner
12W10491984 Whirlpool Switch Seal
13Control, Burner Module (Black)
13WP8286134 Whirlpool Electronic Control Board
14WP3196557 Whirlpool Screw
15WP8286643 Whirlpool Electronic Control Board
16WP4449745 Whirlpool Screw
17Box, Control
18W10155097 Whirlpool Wire Harness
20Rail, Element (2)
238285593 Whirlpool Oven Wire Cover
24Element, Surface (2000/1000W RR)
24WP8285845 Whirlpool Surface Element
24WP8285230 Whirlpool Surface Element
24WP4453907 Whirlpool Surface Element
25WP8203546 Whirlpool Terminal Block
26WP3196163 Whirlpool Screw
27WP3400093 Whirlpool Screw
28WP112432 Whirlpool Nut Assembly
29Support, Module
308186533 Whirlpool Hardware
