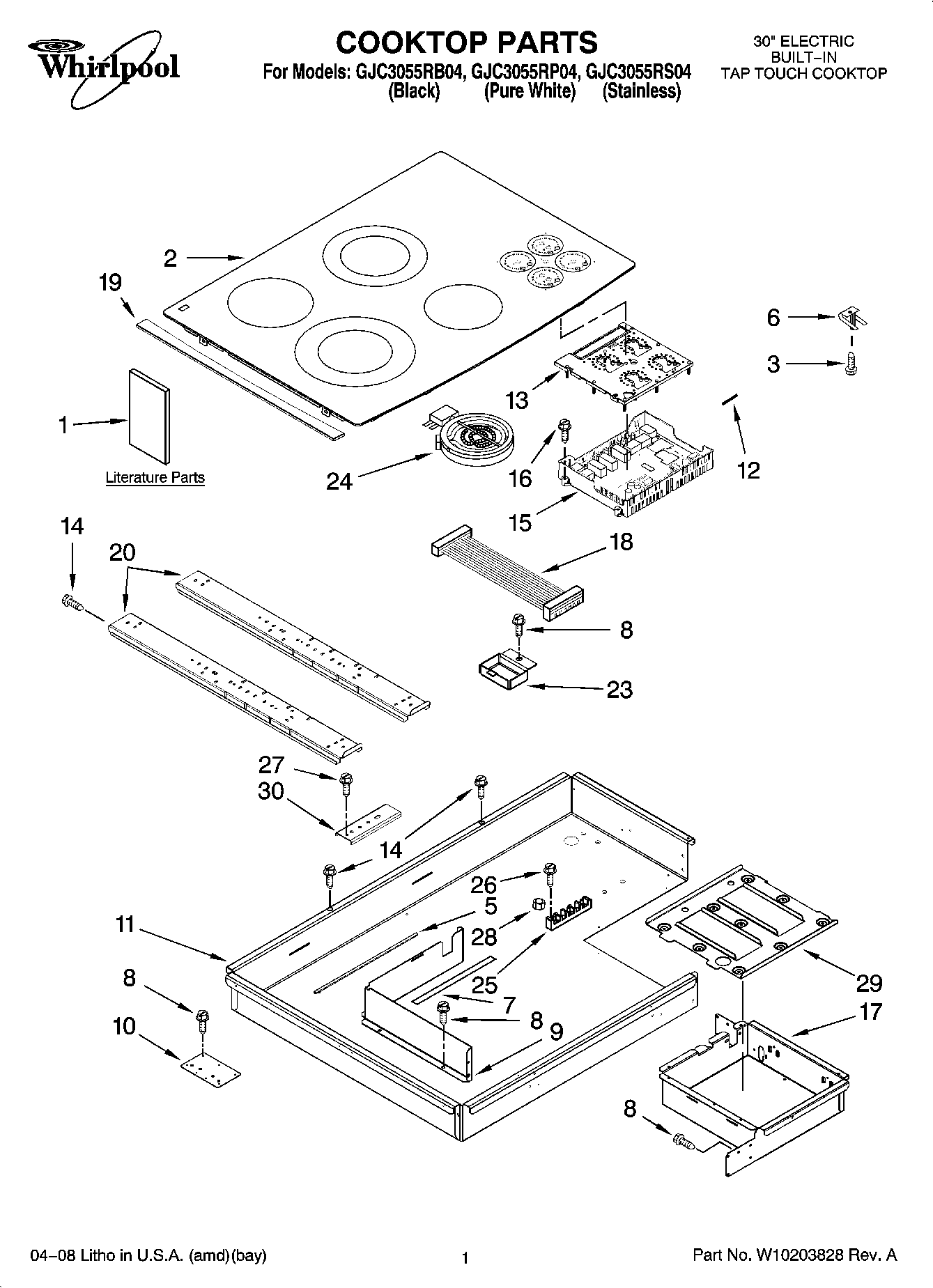

GJC3055RS04 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	WPL 8286379
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 200 c Brown)
	Clip, Harnes
	WPL ARI66321A4
	WPL 8285951
	WPL ARI66317A7
	WP8286642 Whirlpool Tape
	WPL ARI66319A6
	WPL ARI66320A5
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	WP3400015 Whirlpool Screw
	242831 Whirlpool Oven Wire
	WPL ARI66318A9
1	Use & Care Guide
1	INSTALLATION INSTRUCTIONS
1	Safer Cooking Tips (French)
1	Tech Sheet
1	SAFER COOKING TIPS (ENGLISH
1	Installation Instructions (Undercounter Oven)
2	Cooktop, Glass (Black)
2	Cooktop, Glass (White)
2	Cooktop, Glass (Stainless)
3	WP486754 Whirlpool Compactor Screw
5	Seal, Heat
6	9759094 Whirlpool Spring
7	Seal, Foam
8	W10491985 Whirlpool Screw
9	Wall, Inside
10	Bracket, Bottom
11	Box, Burner
12	W10491984 Whirlpool Switch Seal
13	WP8286134 Whirlpool Electronic Control Board
13	Control, Burner Module (Black)
14	WP3196557 Whirlpool Screw
15	WP8286643 Whirlpool Electronic Control Board
16	WP4449745 Whirlpool Screw
17	Box, Control
18	W10155097 Whirlpool Wire Harness
19	Trim, Cooktop (Stainless Only) (Left)
19	WPW10142238 Whirlpool Cooktop Trim
20	Rail, Element (3)
23	8285593 Whirlpool Oven Wire Cover
24	Element, Surface (2000/1000W RR)
24	WP4453907 Whirlpool Surface Element
24	WP8285230 Whirlpool Surface Element
24	WP8285845 Whirlpool Surface Element
25	WP8203546 Whirlpool Terminal Block
26	WP3196163 Whirlpool Screw
27	WP3400093 Whirlpool Screw
28	Nut
29	Support, Module
30	8186533 Whirlpool Hardware
