GJC3634GQ0 01 – SECTION

Products

Position	Product
	WA906B Whirlpool Cooktop Glass Scraper
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	WPL 3191568
	Literature Parts (Wiring Diagram)
	WPL 3191547
	Literature Parts (Installation Instructions)
	Hardware Asm.
	WPL LIT3191770
	Wire (14 Ga. 150 c Green)
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	WPL 3179589
	Wire (14 Ga. 150 c Orange)
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Brown)

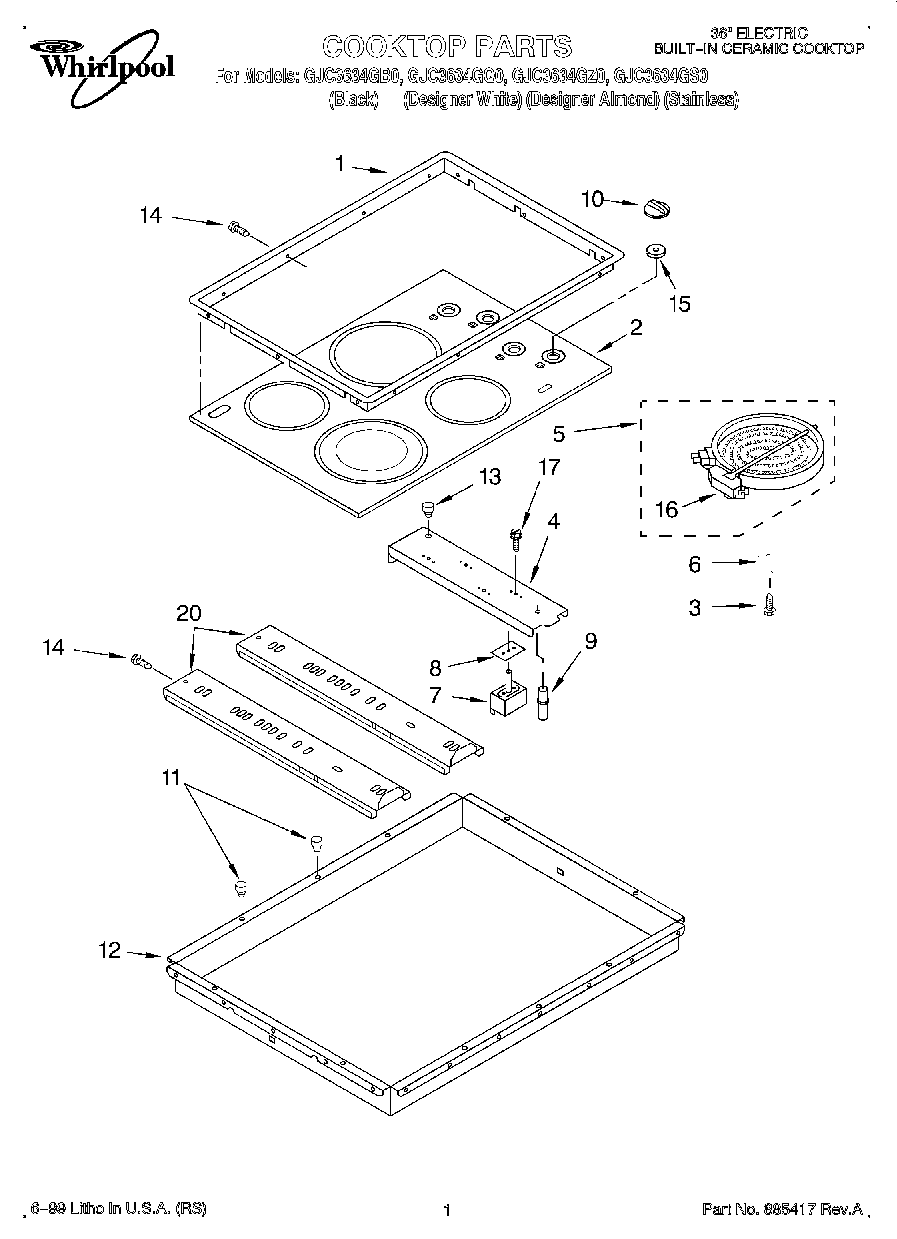

1	Trim Ring, Cooktop (Black)
1	Trim Ring, Cooktop (Designer Almond)
1	Trim Ring, Cooktop (Stainless Steel)
1	Trim Ring, Cooktop (Designer White)
2	Cooktop, Glass (Designer White)
2	Cooktop, Glass (Black)
2	Cooktop, Glass (Designer Almond)
3	WP486754 Whirlpool Compactor Screw
4	Bracket, Switch Mounting
5	W10823693 Whirlpool Surface Element
5	Element, Surface (Includes No. 16) (1200W Right Front)
5	Element, Surface (Includes No. 16) (1500W Left Rear)
5	W10823692 Whirlpool Dual Radiant Element
6	Spring, Locator
7	8203534 Whirlpool Oven Top Burner Infinite Switch
7	WP3191050 Whirlpool Infinite Switch
7	WP3191049 Infinite Switch Left Rear Right Front
8	3183956 Whirlpool Oven Seal Switch
9	Light, Indicator
10	WP3196231 Whirlpool Knob
10	Knob, Infinite (4) (Almond)
10	WP3196232 Whirlpool Knob
11	Bumper, Rubber (Black (2.75 Dia.))
12	Box, Burner
13	Bumper, Silicone
14	WP3196557 Whirlpool Screw
15	Seal, Inifinite Switch
16	Limiter, Temp. (LF)
16	Switch, Limiter (Use W/3191981 Element)
16	Switch, Limiter (Use W/3191984 Element)
16	Limiter, Temp. (LF)
17	WP486579 Whirlpool Air Conditioner Screw
20	Rail, Element (2)
