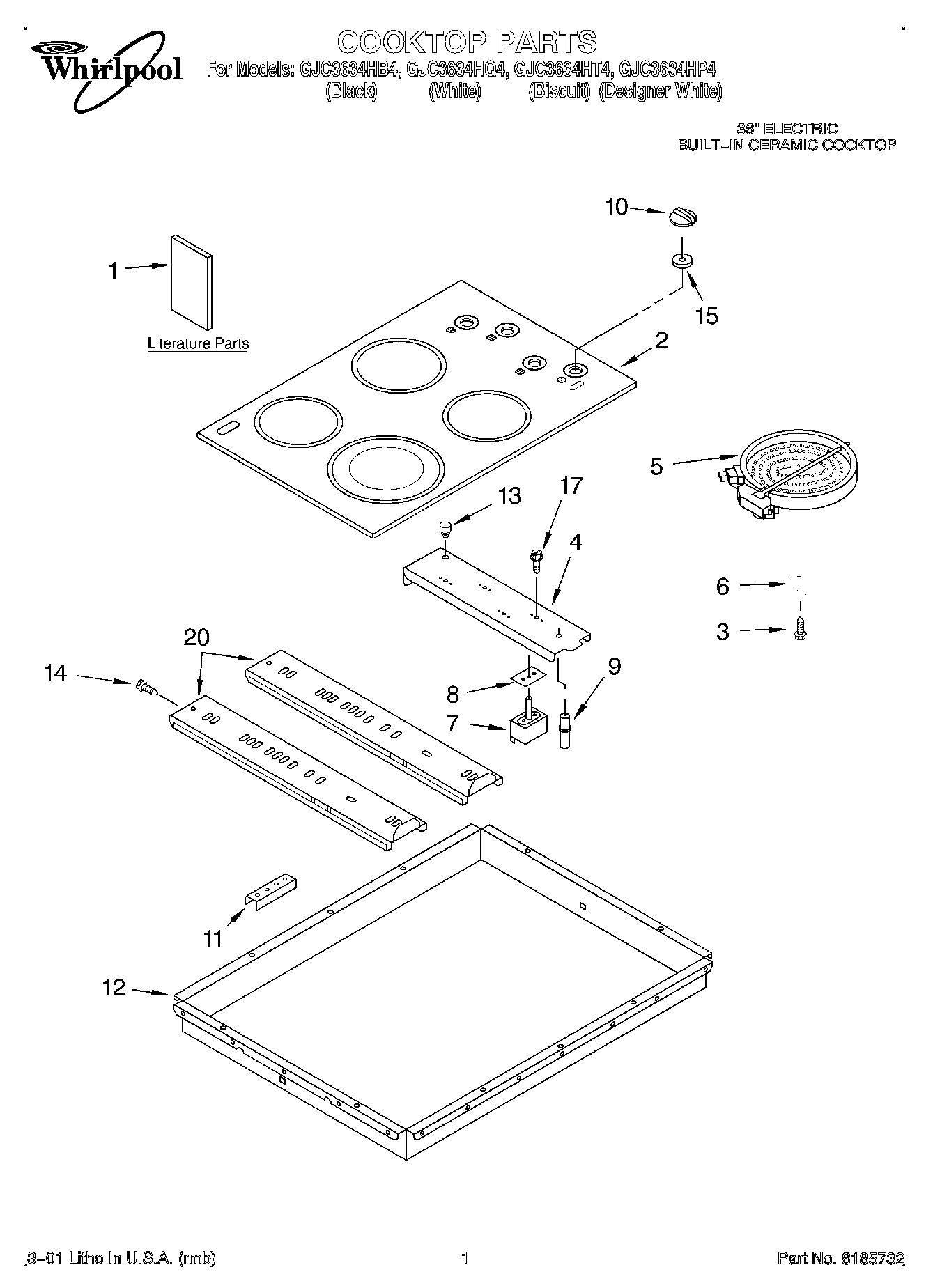

GJC3634HP4 01 – SECTION

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide)
1Literature Parts (Wiring Diagram)
2Cooktop & Bracket Assembly (Designer White)
2Cooktop & Bracket Assembly (Black)
2Cooktop & Bracket Assembly (White)
2Cooktop & Bracket Assembly (Biscuit)
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
5W10823698 Whirlpool Surface Element Right Rear
5W10823692 Whirlpool Dual Radiant Element
5W10823699 Whirlpool Right Front Surface Element
5W10823711 Whirlpool Surface Element Left Front and Right Rear
6Spring, Locator
78203534 Whirlpool Oven Top Burner Infinite Switch
7WP3191049 Infinite Switch Left Rear Right Front
7WP3191050 Whirlpool Infinite Switch
83183956 Whirlpool Oven Seal Switch
9Light, Indicator
10WP3196232 Whirlpool Knob
10WP3196231 Whirlpool Knob
118186533 Whirlpool Hardware
12Box, Burner
13Bumper, Silicone
14WP3196557 Whirlpool Screw
15Seal, Inifinite Switch
17WP486579 Whirlpool Air Conditioner Screw
20242831 Whirlpool Oven Wire
20W10491984 Whirlpool Switch Seal
20W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
20Wire, 25“ Roll (White 14 GA.)
20WPL 4455281
20Wire, 25` Roll (Red 14 Ga.)
20Wire, 25` Roll (Black 14 Ga.)
20WP3400015 Whirlpool Screw
20Wire (14 Ga. 150 c Brown)
20Wire (14 Ga. 150 c Green)
20Wire (14 Ga. 150 c Orange)
201
20Hardware Asm.
2018 Ga. 80~c Rating (Red)
20Wire (14 Ga. 200 c Brown)
20Wire (12 Ga. 150 c Black)
20Rail, Element (2)
204455364 Whirlpool Oven Support Bracket
20WPL 3192737
20Wire (14 Ga. 150 c Yellow)
20WPL 3192170
