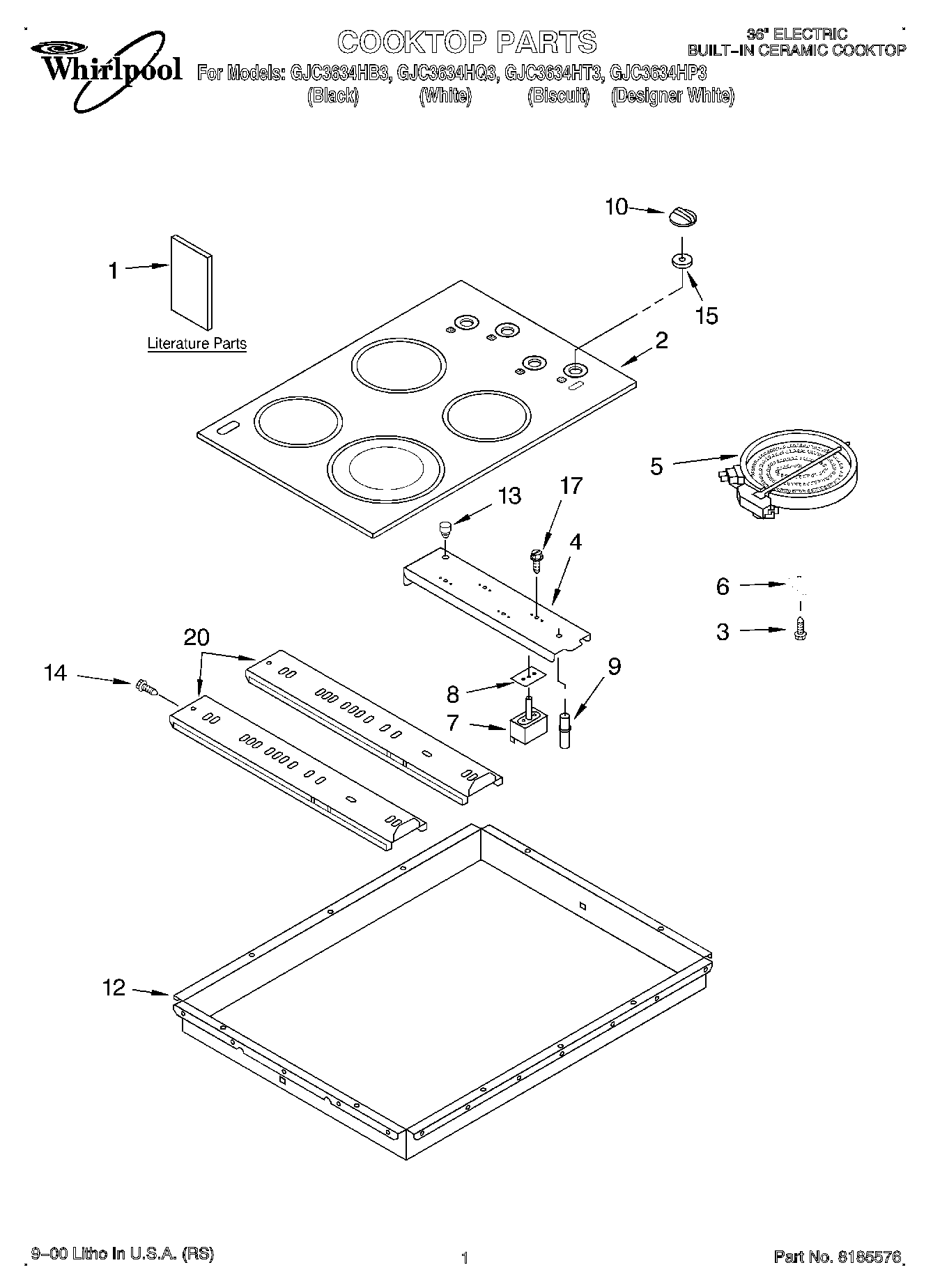

GJC3634HQ3 01 – SECTION

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Installation Instructions)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Wiring Diagram)
2	Cooktop & Bracket Assembly (Biscuit)
2	Cooktop & Bracket Assembly (White)
2	Cooktop & Bracket Assembly (Black)
2	Cooktop & Bracket Assembly (Designer White)
3	WP486754 Whirlpool Compactor Screw
4	Bracket, Switch Mounting
5	W10823699 Whirlpool Right Front Surface Element
5	W10823692 Whirlpool Dual Radiant Element
5	W10823698 Whirlpool Surface Element Right Rear
5	W10823711 Whirlpool Surface Element Left Front and Right Rear
6	Spring, Locator
7	WP3191049 Infinite Switch Left Rear Right Front
7	8203534 Whirlpool Oven Top Burner Infinite Switch
7	WP3191050 Whirlpool Infinite Switch
8	3183956 Whirlpool Oven Seal Switch
9	Light, Indicator
10	WP3196232 Whirlpool Knob
10	WP3196231 Whirlpool Knob
12	Box, Burner
13	Bumper, Silicone
14	WP3196557 Whirlpool Screw
15	Seal, Inifinite Switch
17	WP486579 Whirlpool Air Conditioner Screw
20	Wire, 25“ Roll (White 14 GA.)
20	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
20	Wire (14 Ga. 200 c Brown)
20	Wire, 25` Roll (Red 14 Ga.)
20	Wire, 25` Roll (Black 14 Ga.)
20	WPL 4455281
20	WP3400015 Whirlpool Screw
20	W10491984 Whirlpool Switch Seal
20	WPL 3191239
20	WPL 3192737
20	18 Ga. 80~c Rating (Red)
20	Wire (12 Ga. 150 c Black)
20	Wire (14 Ga. 150 c Yellow)
20	Wire (14 Ga. 150 c Orange)
20	Hardware Asm.
20	Wire (14 Ga. 150 c Green)
20	Wire (14 Ga. 150 c Brown)
20	1
20	Rail, Element (2)
20	242831 Whirlpool Oven Wire
20	4455364 Whirlpool Oven Support Bracket
20	WPL 3192170
