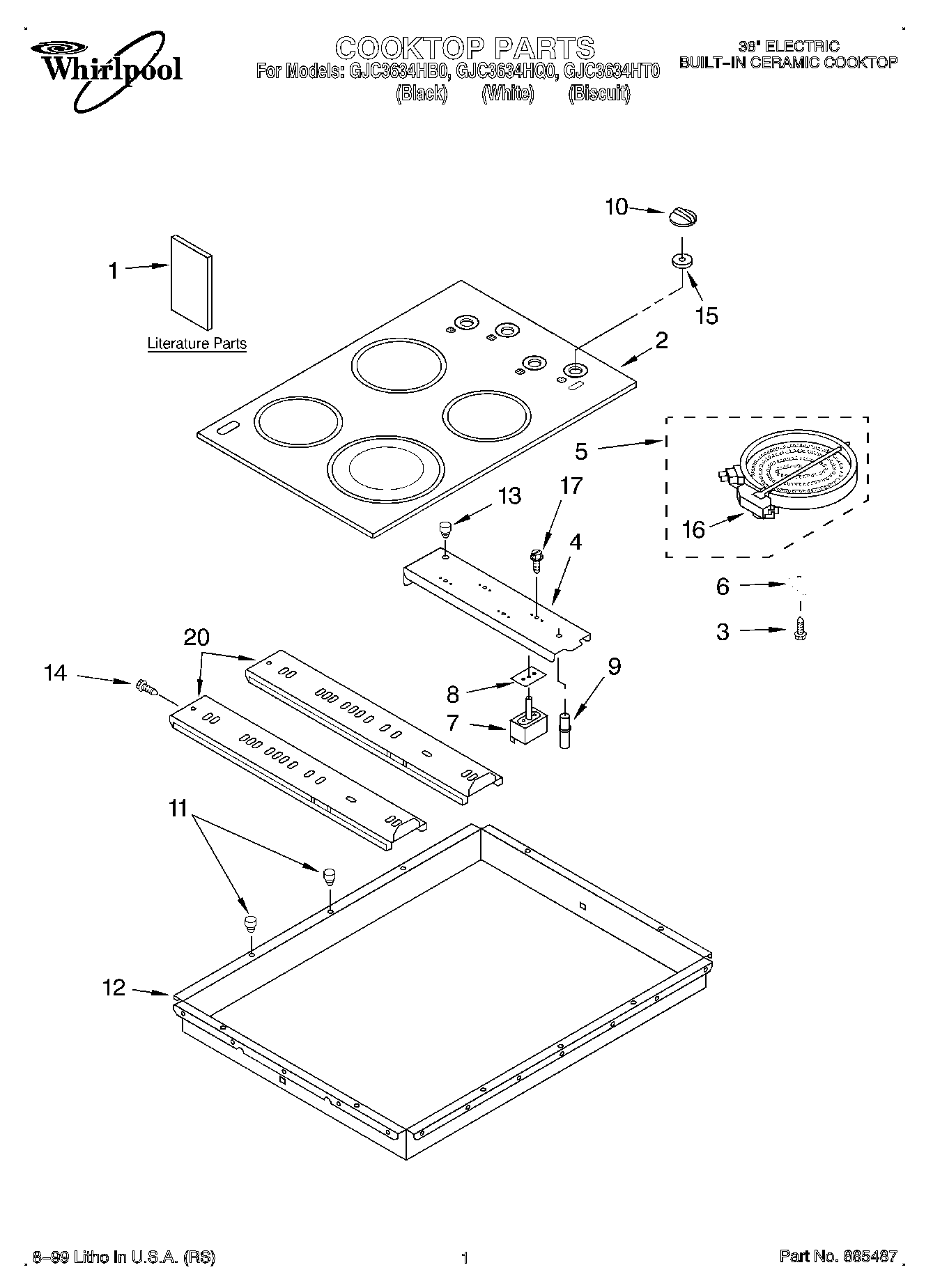

GJC3634HT0 01 – SECTION

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Installation Instructions)
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Use & Care Guide)
2	Cooktop & Bracket Assembly (Biscuit)
2	Cooktop & Bracket Assembly (Black)
2	Cooktop & Bracket Assembly (White)
3	WP486754 Whirlpool Compactor Screw
4	Bracket, Switch Mounting
5	W10823692 Whirlpool Dual Radiant Element
5	W10823693 Whirlpool Surface Element
5	Element, Surface (Includes No. 16) (1500W Left Rear)
5	Element, Surface (Includes No. 16) (1200W Right Front)
6	Spring, Locator
7	WP3191050 Whirlpool Infinite Switch
7	WP3191049 Infinite Switch Left Rear Right Front
7	8203534 Whirlpool Oven Top Burner Infinite Switch
8	3183956 Whirlpool Oven Seal Switch
9	Light, Indicator
10	WP3196231 Whirlpool Knob
10	WP3196232 Whirlpool Knob
10	Knob, Infinite (4) (Almond)
11	Bumper, Rubber (Black (2.75 Dia.))
12	Box, Burner
13	Bumper, Silicone
14	WP3196557 Whirlpool Screw
15	Seal, Inifinite Switch
16	Switch, Limiter (Use W/3191984 Element)
16	Switch, Limiter (Use W/3191981 Element)
16	Limiter, Temp. (LF)
16	Limiter, Temp. (LF)
17	WP486579 Whirlpool Air Conditioner Screw
20	Wire, 25` Roll (Red 14 Ga.)
20	Wire, 25` Roll (Black 14 Ga.)
20	Wire (14 Ga. 150 c Green)
20	WA906B Whirlpool Cooktop Glass Scraper
20	Wire (12 Ga. 150 c Black)
20	18 Ga. 80~c Rating (Red)
20	Wire (14 Ga. 200 c Brown)
20	Wire, 25“ Roll (White 14 GA.)
20	WPL 3192170
20	Wire (14 Ga. 150 c Orange)
20	Wire (14 Ga. 150 c Brown)
20	Rail, Element (2)
20	Hardware Asm.
20	Wire (14 Ga. 150 c Yellow)
20	242831 Whirlpool Oven Wire
20	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
20	WPL 3192169
20	1
