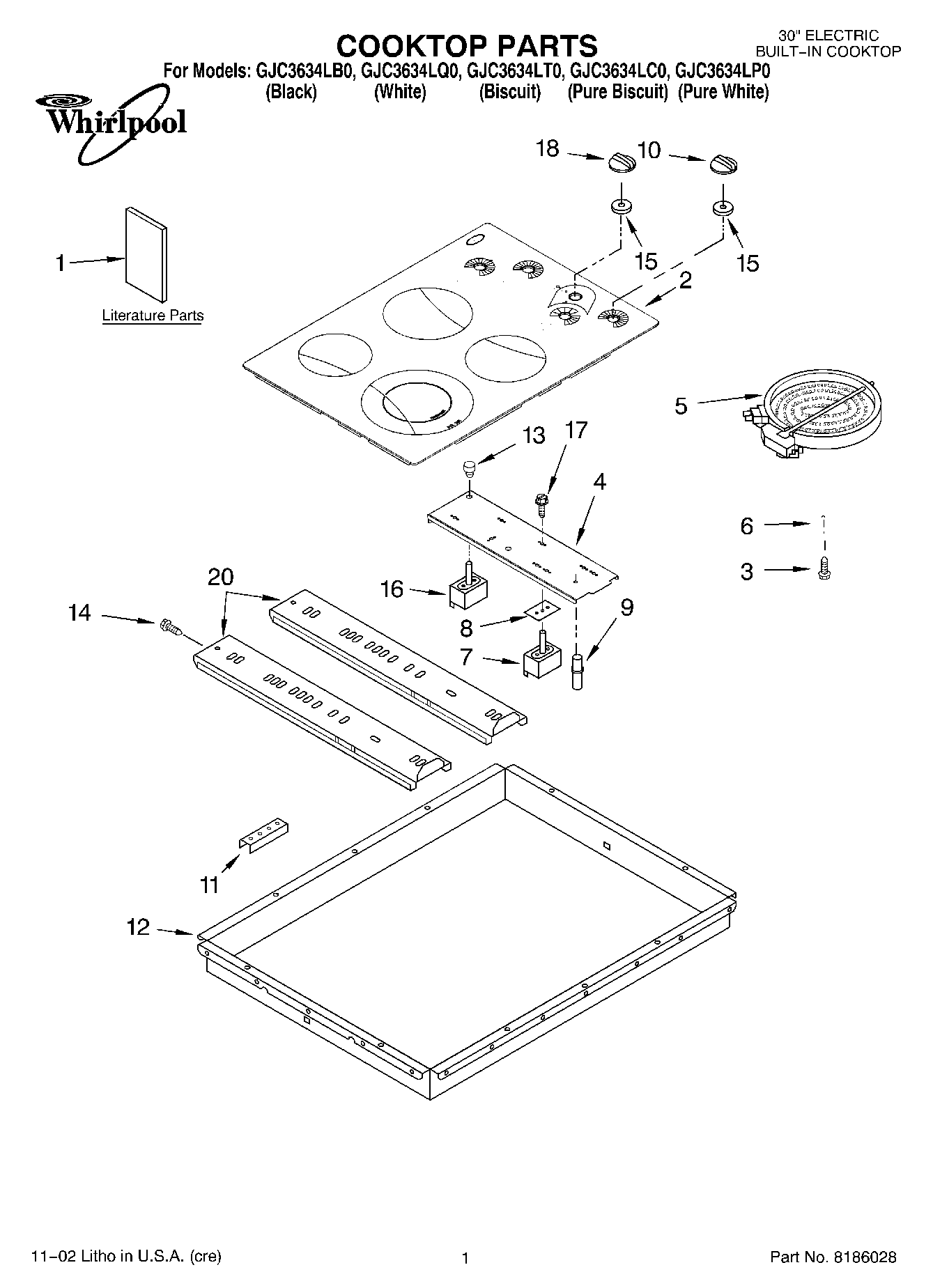

GJC3634LB0 01 – COOKTOP PARTS

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Energuide Label)
1	Literature Parts (Installation Instructions)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Wiring Diagram)
2	Cooktop & Bracket Assembly (Pure White)
2	Cooktop & Bracket Assembly (Biscuit)
2	Cooktop & Bracket Assembly (White)
2	Cooktop & Bracket Assembly (Black)
2	Cooktop & Bracket Assembly (Pure Biscuit)
3	WP486754 Whirlpool Compactor Screw
4	Bracket, Switch Mounting
5	WP8523700 Whirlpool Surface Element
5	W10823692 Whirlpool Dual Radiant Element
5	W10823698 Whirlpool Surface Element Right Rear
5	W10823699 Whirlpool Right Front Surface Element
5	W10823711 Whirlpool Surface Element Left Front and Right Rear
6	Spring, Locator
7	WP3191050 Whirlpool Infinite Switch
7	WP9759474 Whirlpool Infinite Switch
7	WP3191049 Infinite Switch Left Rear Right Front
7	Switch, Infinite (Warm Zone)
8	W10491984 Whirlpool Switch Seal
9	Light, Indicator
10	WP8522566 Whirlpool Knob
10	Knob, Control (4) (Biscuit)
10	WP8522565 Whirlpool Knob
11	WP3400093 Whirlpool Screw
11	8186533 Whirlpool Hardware
12	Box, Burner
13	Bumper, Silicone
14	WP3196557 Whirlpool Screw
15	Seal, Inifinite Switch
16	WP9762441 Whirlpool Selector Switch
17	WP486579 Whirlpool Air Conditioner Screw
18	Knob, Accusimer (White)
18	Knob, Accusimer (Biscuit)
18	Knob, Accusimer (Black)
20	Wire, 25“ Roll (White 14 GA.)
20	Wire (14 Ga. 150 c Orange)
20	Wire (14 Ga. 150 c Green)
20	Wire (14 Ga. 150 c Brown)
20	242831 Whirlpool Oven Wire
20	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
20	Wire, 25` Roll (Red 14 Ga.)
20	3183956 Whirlpool Oven Seal Switch
20	WP3400015 Whirlpool Screw
20	Wire, 25` Roll (Black 14 Ga.)
20	Wire (14 Ga. 150 c Yellow)
20	Wire (12 Ga. 150 c Black)
20	4455364 Whirlpool Oven Support Bracket
20	WPL 3192737
20	Rail, Element (2)
20	1
20	Wire (14 Ga. 200 c Brown)
20	WPL 8285406
20	WPL 8285452
20	WPL ARI66325A7
20	WPL ARI66326A8
20	WPL ARI66327A4
20	WPL ARI66328A6
20	18 Ga. 80~c Rating (Red)
20	Hardware Asm.
