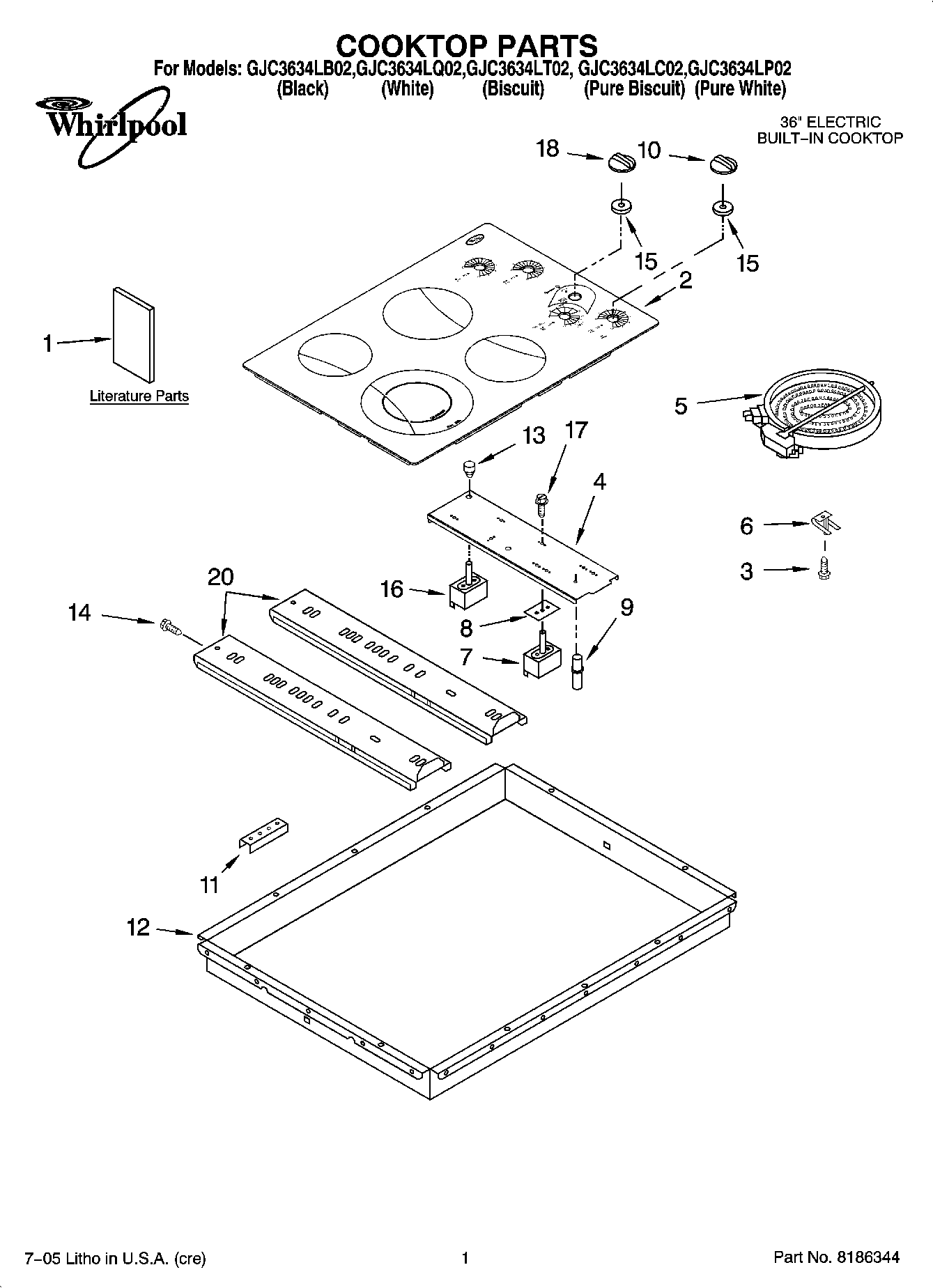

GJC3634LB02 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

Position	Product
	4455364 Whirlpool Oven Support Bracket
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	WPL ARI66331A7
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	Hardware Asm.
	WPL ARI66330A2
	WPL 4457146
	WPL 4456581
	Wire (14 Ga. 150 c Brown)
	242831 Whirlpool Oven Wire
	WP3400015 Whirlpool Screw
	WPL ARI66333A8
	WPL ARI66332A8
	Wire (14 Ga. 150 c Yellow)
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
1	Safe Cooking Tips
1	Safe Cooking Tips (French)
1	Wiring Diagram
1	Installation Instructions
1	Use & Care Guide
2	Cooktop & Bracket Assembly (Black)
2	Foam, Seal
2	Cooktop & Bracket Assembly (Biscuit)
2	Cooktop & Bracket Assembly (White)
2	Cooktop & Bracket Assembly (Pure Biscuit)
2	Cooktop & Bracket Assembly (Pure White)
3	WP486754 Whirlpool Compactor Screw
4	Bracket, Switch Mounting
5	W10823699 Whirlpool Right Front Surface Element
5	WP8523700 Whirlpool Surface Element
5	W10823698 Whirlpool Surface Element Right Rear
5	W10823692 Whirlpool Dual Radiant Element
5	W10823711 Whirlpool Surface Element Left Front and Right Rear
6	9759094 Whirlpool Spring
7	WP3191049 Infinite Switch Left Rear Right Front
7	Switch, Infinite (Warm Zone)
7	WP3191050 Whirlpool Infinite Switch
7	WP9759474 Whirlpool Infinite Switch
8	W10491984 Whirlpool Switch Seal
9	Light, Indicator
10	Knob, Control (4) (Biscuit)
10	WP8522565 Whirlpool Knob
10	WP8522566 Whirlpool Knob
11	8186533 Whirlpool Hardware
11	WP3400093 Whirlpool Screw
12	Box, Burner
13	Bumper, Silicone
14	WP3196557 Whirlpool Screw
15	8285469 Whirlpool Oven Seal Switch
16	WP9762441 Whirlpool Selector Switch
17	WP486579 Whirlpool Air Conditioner Screw
18	Knob, Accusimer (Biscuit)
18	Knob, Accusimer (White)
18	Knob, Accusimer (Black)
20	3183956 Whirlpool Oven Seal Switch
20	Rail, Element (2)
20	WPL 3192737
20	WPL ARI66329A4
