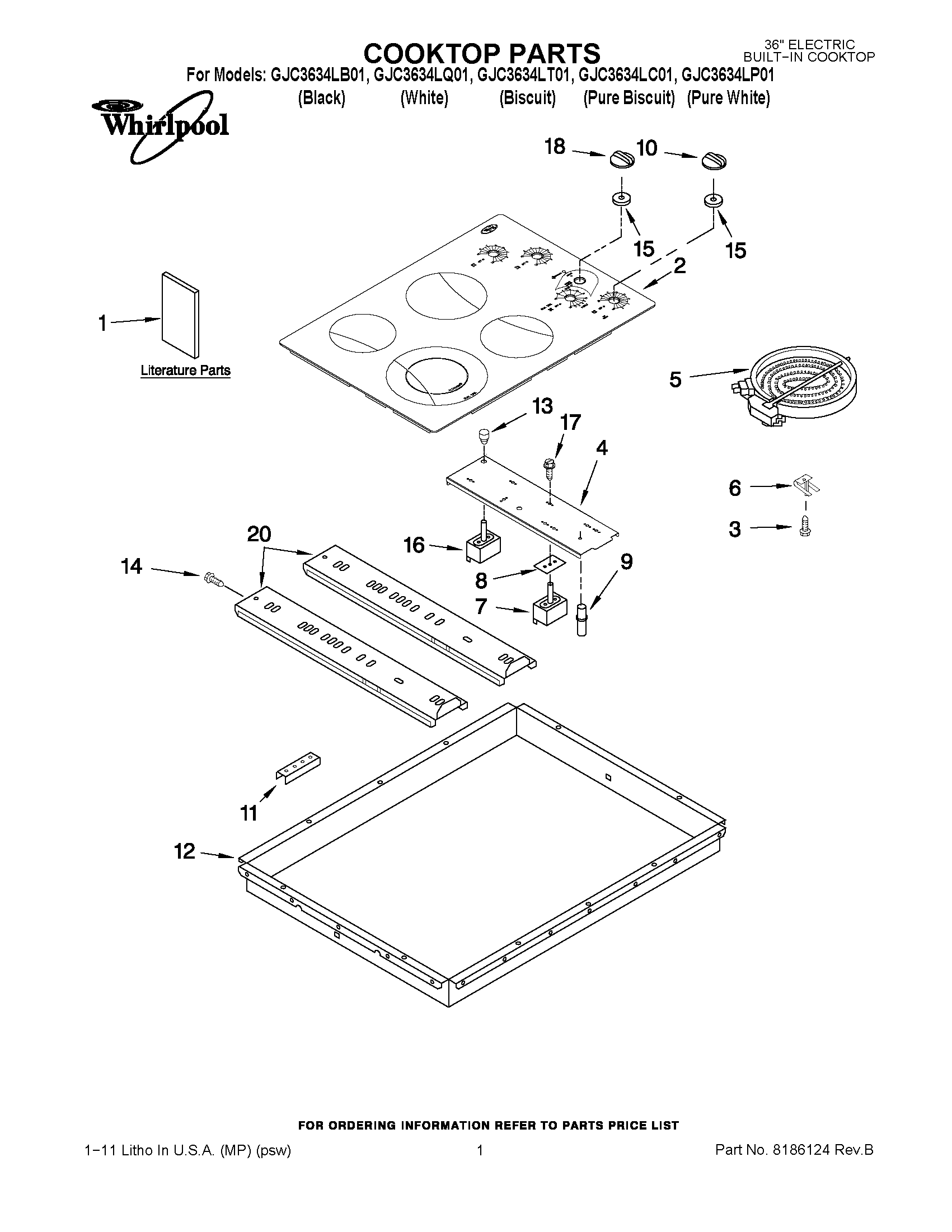

GJC3634LC01 01 – COOKTOP PARTS

GJC3634LC01 01 – COOKTOP PARTS

Written by

in

GJC3634LC01 01 – COOKTOP PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1Energuide Label
1Use & Care Guide
1WIRING DIAGRAM
1Safe Cooking Tips
2Cooktop & Bracket Assembly (Biscuit)
2Cooktop & Bracket Assembly (Pure White)
2Cooktop & Bracket Assembly (White)
2Cooktop & Bracket Assembly (Black)
2Cooktop & Bracket Assembly (Pure Biscuit)
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
5W10823711 Whirlpool Surface Element Left Front and Right Rear
5W10823698 Whirlpool Surface Element Right Rear
5W10823692 Whirlpool Dual Radiant Element
5WP8523700 Whirlpool Surface Element
5W10823699 Whirlpool Right Front Surface Element
6Spring, Locator
7WP3191050 Whirlpool Infinite Switch
7WP9759474 Whirlpool Infinite Switch
7WP3191049 Infinite Switch Left Rear Right Front
7Switch, Infinite (Warm Zone)
8W10491984 Whirlpool Switch Seal
9Light, Indicator
10WP8522565 Whirlpool Knob
10Knob, Control (4) (Biscuit)
10WP8522566 Whirlpool Knob
118186533 Whirlpool Hardware
11WP3400093 Whirlpool Screw
12Box, Burner
13Bumper, Silicone
14WP3196557 Whirlpool Screw
158285469 Whirlpool Oven Seal Switch
16WP9762441 Whirlpool Selector Switch
17WP486579 Whirlpool Air Conditioner Screw
18Knob, Accusimer (White)
18Knob, Accusimer (Black)
18Knob, Accusimer (Biscuit)
20WPL 3192737
20Rail, Element (2)
203183956 Whirlpool Oven Seal Switch
