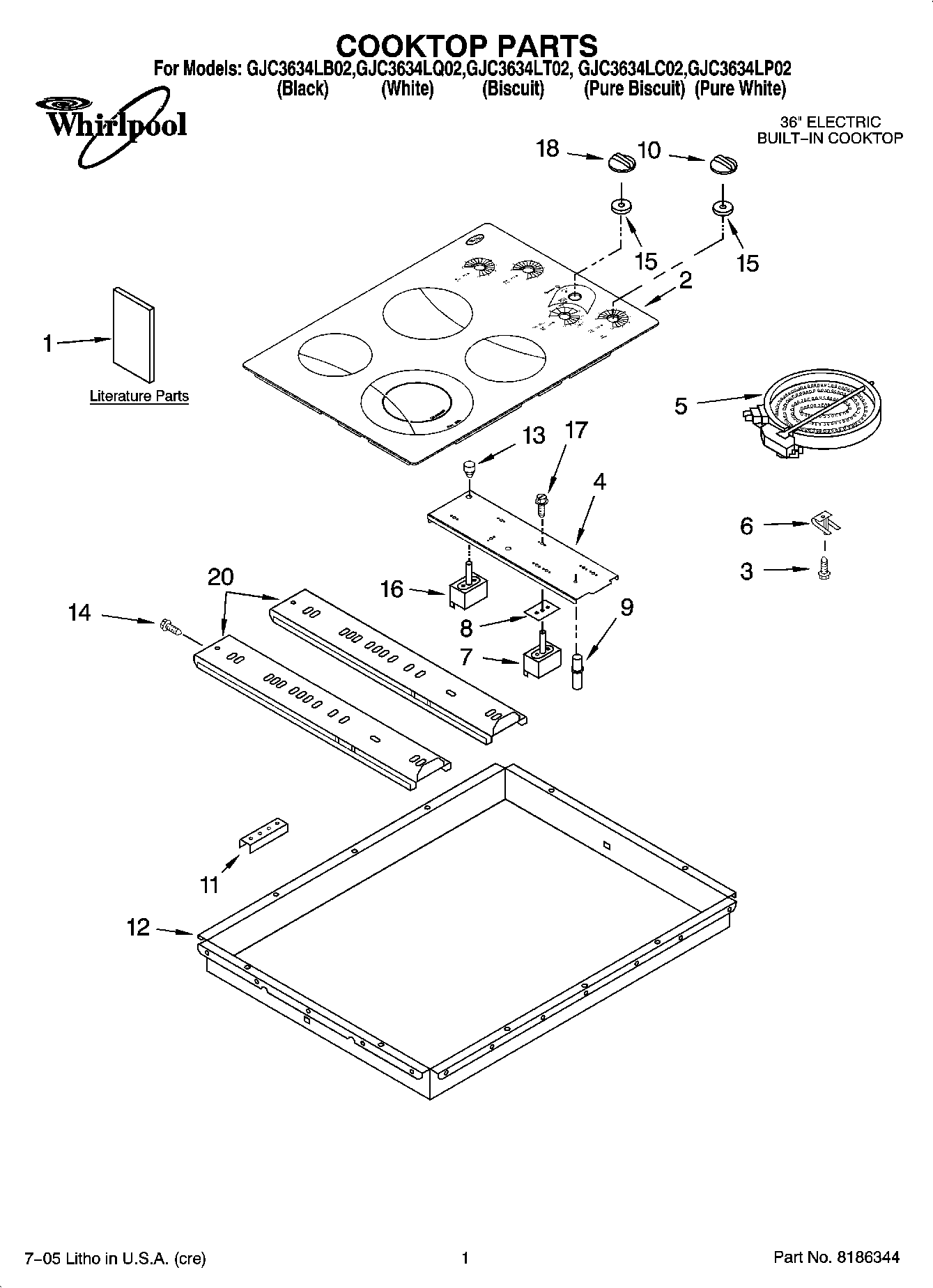

GJC3634LC02 01 – COOKTOP PARTS, OPTIONAL PARTS

GJC3634LC02 01 – COOKTOP PARTS, OPTIONAL PARTS

Written by

in

GJC3634LC02 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL 4456581
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	WPL ARI66339A3
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	Hardware Asm.
	WPL 4457146
	4455364 Whirlpool Oven Support Bracket
	Wire (14 Ga. 150 c Brown)
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Yellow)
	WPL ARI66341A9
	WPL ARI66340A7
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	WPL ARI66342A2
	WP3400015 Whirlpool Screw
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
1	Installation Instructions
1	Wiring Diagram
1	Use & Care Guide
1	Safe Cooking Tips (French)
1	Safe Cooking Tips
2	Cooktop & Bracket Assembly (Black)
2	Cooktop & Bracket Assembly (White)
2	Foam, Seal
2	Cooktop & Bracket Assembly (Pure White)
2	Cooktop & Bracket Assembly (Biscuit)
2	Cooktop & Bracket Assembly (Pure Biscuit)
3	WP486754 Whirlpool Compactor Screw
4	Bracket, Switch Mounting
5	W10823692 Whirlpool Dual Radiant Element
5	W10823699 Whirlpool Right Front Surface Element
5	WP8523700 Whirlpool Surface Element
5	W10823698 Whirlpool Surface Element Right Rear
5	W10823711 Whirlpool Surface Element Left Front and Right Rear
6	9759094 Whirlpool Spring
7	Switch, Infinite (Warm Zone)
7	WP3191050 Whirlpool Infinite Switch
7	WP3191049 Infinite Switch Left Rear Right Front
7	WP9759474 Whirlpool Infinite Switch
8	W10491984 Whirlpool Switch Seal
9	Light, Indicator
10	WP8522565 Whirlpool Knob
10	Knob, Control (4) (Biscuit)
10	WP8522566 Whirlpool Knob
11	8186533 Whirlpool Hardware
11	WP3400093 Whirlpool Screw
12	Box, Burner
13	Bumper, Silicone
14	WP3196557 Whirlpool Screw
15	8285469 Whirlpool Oven Seal Switch
16	WP9762441 Whirlpool Selector Switch
17	WP486579 Whirlpool Air Conditioner Screw
18	Knob, Accusimer (White)
18	Knob, Accusimer (Black)
18	Knob, Accusimer (Biscuit)
20	3183956 Whirlpool Oven Seal Switch
20	WPL 3192737
20	Rail, Element (2)
20	WPL ARI66338A7
