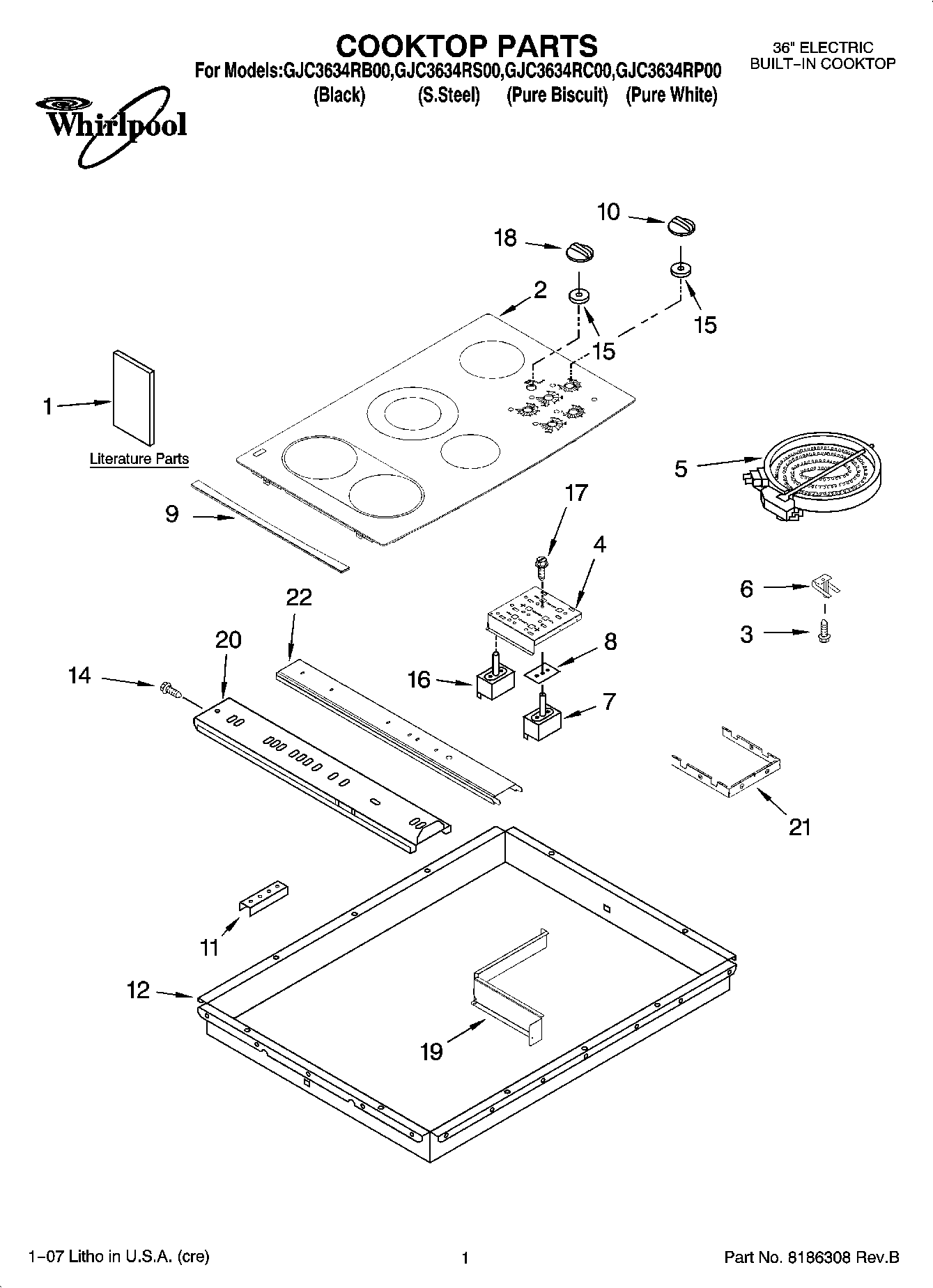

GJC3634RB00 01 – COOKTOP PARTS, OPTIONAL PARTS

GJC3634RB00 01 – COOKTOP PARTS, OPTIONAL PARTS

Written by

in

GJC3634RB00 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
Wire (14 Ga. 150 c Orange)
242831 Whirlpool Oven Wire
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Green)
WPL ARI66371A3
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
WPL ARI66372A6
WPL 8285957
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
W10491985 Whirlpool Screw
WP3400015 Whirlpool Screw
8286348 Whirlpool Wire Harness
WPL ARI66374A7
WPL ARI66373A4
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
WPL 8285988
1Use & Care Guide
1INSTALLATION INSTRUCTIONS
1Safe Cooking Tips
1Wiring Diagram
2Cooktop & Bracket Assembly (White)
2Cooktop & Bracket Assembly (S.Steel)
2Cooktop & Bracket Assembly (Black)
2Cooktop & Bracket Assembly (Biscuit)
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
5WP8523700 Whirlpool Surface Element
5W10823711 Whirlpool Surface Element Left Front and Right Rear
5W10823692 Whirlpool Dual Radiant Element
5W10823695 Whirlpool Surface Element
69759094 Whirlpool Spring
7WP9759474 Whirlpool Infinite Switch
7WP3191049 Infinite Switch Left Rear Right Front
7WP3191050 Whirlpool Infinite Switch
7Switch, Infinite (RR)
8W10491984 Whirlpool Switch Seal
9Trim, Cooktop (S.Steel Mdl Only) (LH)
9WPW10142238 Whirlpool Cooktop Trim
10WP8286043BL Whirlpool Knob
108286043WH Whirlpool Knob
108286043BT Whirlpool Knob
118186533 Whirlpool Hardware
11WP3400093 Whirlpool Screw
12Box, Burner
158285469 Whirlpool Oven Seal Switch
16WP9762441 Whirlpool Selector Switch
17WP486579 Whirlpool Air Conditioner Screw
188286044BL Whirlpool Knob
18Knob, Accusimer (Biscuit)
19Shield, Heat Control
19WPL 3191839
20Rail, Element (2) (Side (3))
203183956 Whirlpool Oven Seal Switch
21WP3196557 Whirlpool Screw
21Shield, Heat
224455364 Whirlpool Oven Support Bracket
22Rail, Element (1)
22Hardware Asm.
22Follo
