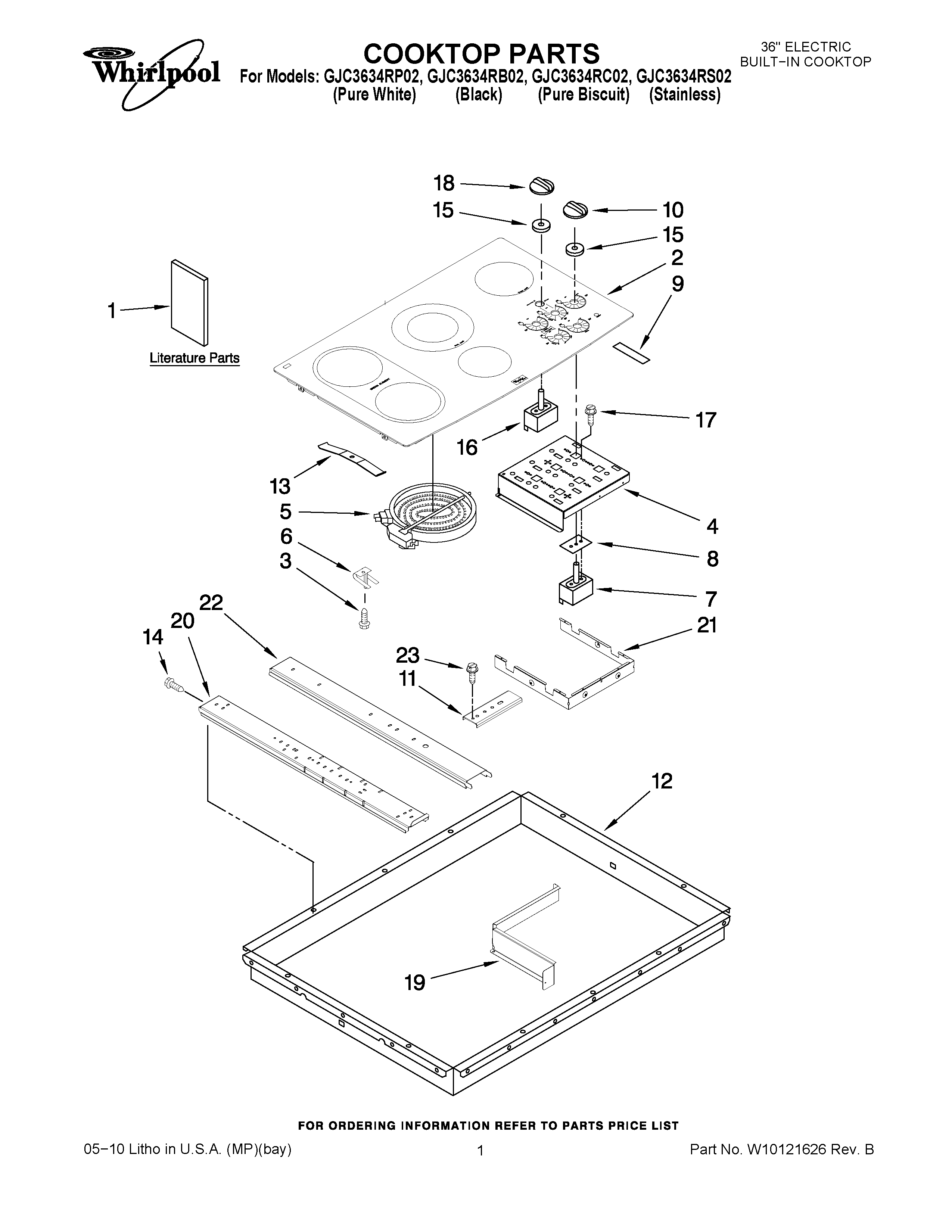

GJC3634RB02 01 – COOKTOP PARTS

Products

Position	Product
NI	Hardware Asm.
NI	WP8286642 Whirlpool Tape
NI	4455364 Whirlpool Oven Support Bracket
1	Safe Cooking Tips (French)
1	Installation Instructions (Undercounter Oven)
1	INSTALLATION INSTRUCTIONS
1	Use & Care Guide
1	Wiring Diagram
1	Safe Cooking Tips
2	Cooktop & Bracket Assembly (Black)
2	Cooktop & Bracket Assembly (White)
2	Cooktop & Bracket Assembly (Biscuit)
3	WP486754 Whirlpool Compactor Screw
4	Bracket, Switch Mounting
5	W10823695 Whirlpool Surface Element
5	WP8523700 Whirlpool Surface Element
5	W10823711 Whirlpool Surface Element Left Front and Right Rear
5	W10823692 Whirlpool Dual Radiant Element
6	9759094 Whirlpool Spring
7	WP3191050 Whirlpool Infinite Switch
7	WP9759474 Whirlpool Infinite Switch
7	WP3191049 Infinite Switch Left Rear Right Front
7	Switch, Infinite (RR)
8	3183956 Whirlpool Oven Seal Switch
9	W10491984 Whirlpool Switch Seal
10	8286043BT Whirlpool Knob
10	8286043WH Whirlpool Knob
10	WP8286043BL Whirlpool Knob
11	8186533 Whirlpool Hardware
12	Box, Burner
13	CLIP, SPRING (FOR BRIDGE)
15	8285469 Whirlpool Oven Seal Switch
16	WP9762441 Whirlpool Selector Switch
17	WP486579 Whirlpool Air Conditioner Screw
18	8286044BL Whirlpool Knob
18	Knob, Accusimer (Biscuit)
19	WPL 3191839
19	Shield, Heat Control
20	Rail, Element (3)
21	Shield, Heat
21	WP3196557 Whirlpool Screw
22	Rail, Element (1)
23	WP3400093 Whirlpool Screw
