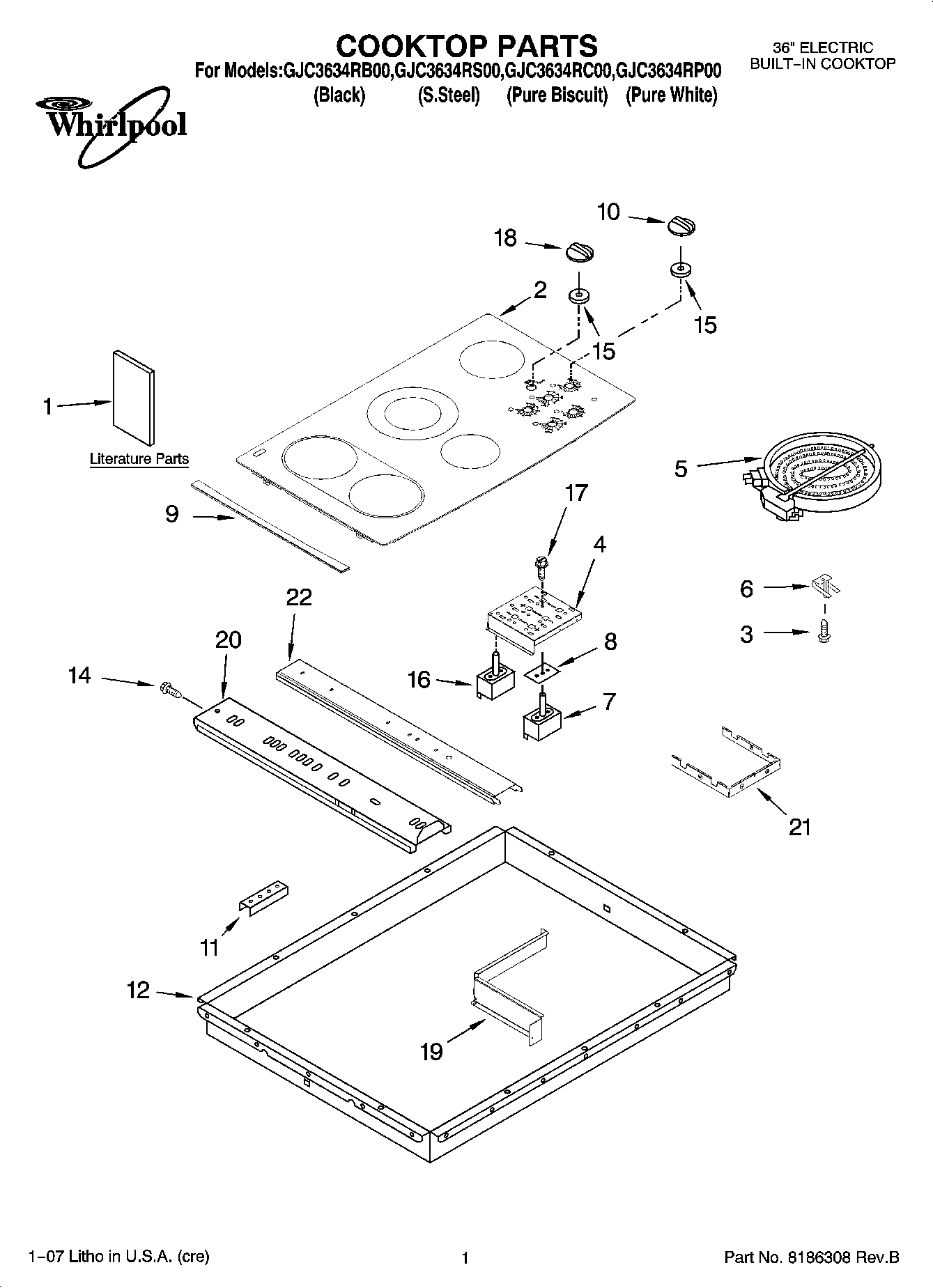

GJC3634RC00 01 – COOKTOP PARTS, OPTIONAL PARTS

GJC3634RC00 01 – COOKTOP PARTS, OPTIONAL PARTS

Written by

in

GJC3634RC00 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
WPL 8285988
WPL 8285957
8286348 Whirlpool Wire Harness
242831 Whirlpool Oven Wire
WPL ARI66378A9
WP3400015 Whirlpool Screw
WPL ARI66377A5
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
W10491985 Whirlpool Screw
WPL ARI66376A4
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPL ARI66379A5
1Use & Care Guide
1Wiring Diagram
1Safe Cooking Tips
1INSTALLATION INSTRUCTIONS
2Cooktop & Bracket Assembly (Black)
2Cooktop & Bracket Assembly (S.Steel)
2Cooktop & Bracket Assembly (Biscuit)
2Cooktop & Bracket Assembly (White)
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
5W10823695 Whirlpool Surface Element
5WP8523700 Whirlpool Surface Element
5W10823711 Whirlpool Surface Element Left Front and Right Rear
5W10823692 Whirlpool Dual Radiant Element
69759094 Whirlpool Spring
7WP3191050 Whirlpool Infinite Switch
7WP3191049 Infinite Switch Left Rear Right Front
7WP9759474 Whirlpool Infinite Switch
7Switch, Infinite (RR)
8W10491984 Whirlpool Switch Seal
9WPW10142238 Whirlpool Cooktop Trim
9Trim, Cooktop (S.Steel Mdl Only) (LH)
10WP8286043BL Whirlpool Knob
108286043BT Whirlpool Knob
108286043WH Whirlpool Knob
118186533 Whirlpool Hardware
11WP3400093 Whirlpool Screw
12Box, Burner
158285469 Whirlpool Oven Seal Switch
16WP9762441 Whirlpool Selector Switch
17WP486579 Whirlpool Air Conditioner Screw
18Knob, Accusimer (Biscuit)
188286044BL Whirlpool Knob
19Shield, Heat Control
19WPL 3191839
20Rail, Element (2) (Side (3))
203183956 Whirlpool Oven Seal Switch
21Shield, Heat
21WP3196557 Whirlpool Screw
224455364 Whirlpool Oven Support Bracket
22Hardware Asm.
22Rail, Element (1)
22Follo
