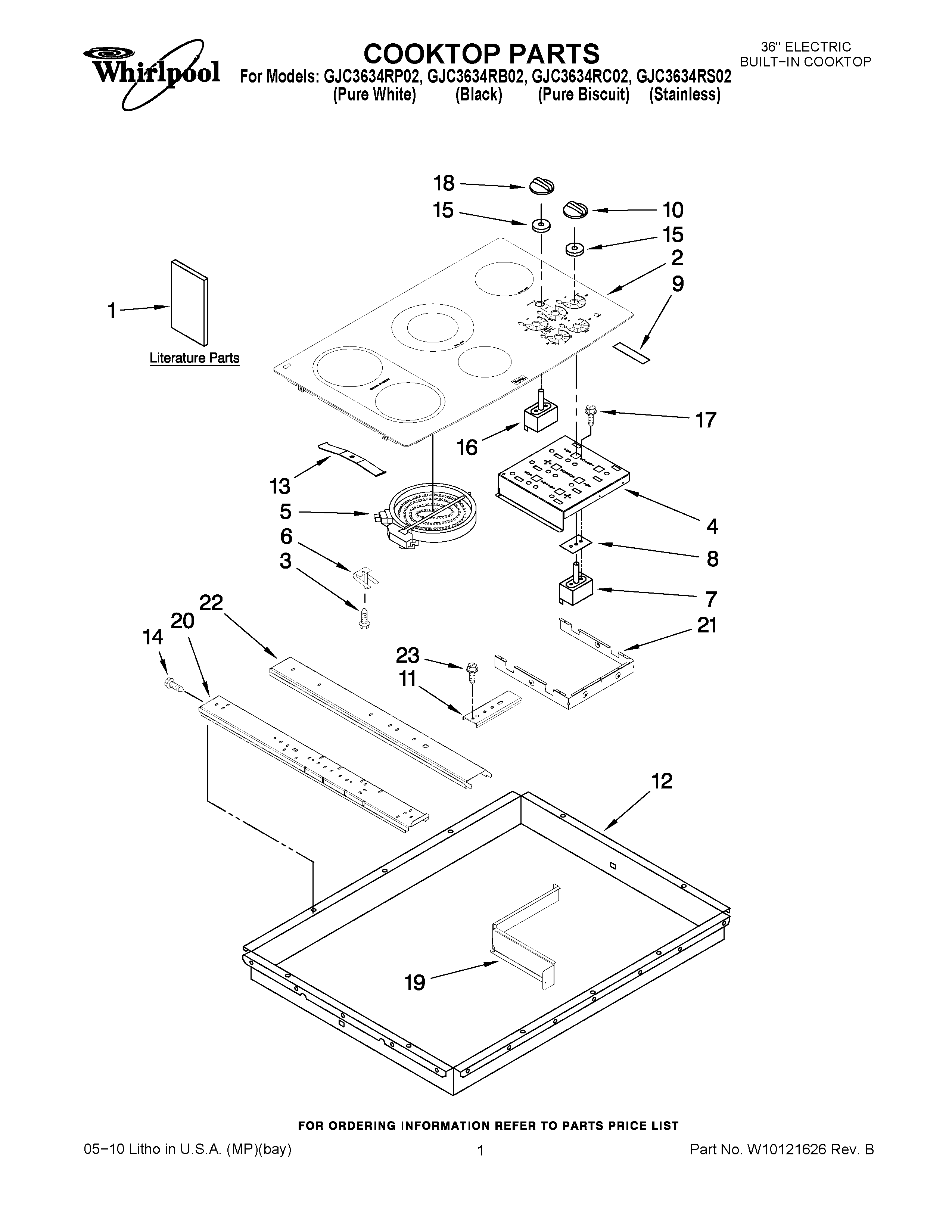

GJC3634RC02 01 – COOKTOP PARTS

GJC3634RC02 01 – COOKTOP PARTS

Written by

in

GJC3634RC02 01 – COOKTOP PARTS

Products

PositionProduct
NIHardware Asm.
NIWP8286642 Whirlpool Tape
NI4455364 Whirlpool Oven Support Bracket
1Safe Cooking Tips (French)
1Installation Instructions (Undercounter Oven)
1INSTALLATION INSTRUCTIONS
1Use & Care Guide
1Wiring Diagram
1Safe Cooking Tips
2Cooktop & Bracket Assembly (Black)
2Cooktop & Bracket Assembly (White)
2Cooktop & Bracket Assembly (Biscuit)
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
5W10823695 Whirlpool Surface Element
5WP8523700 Whirlpool Surface Element
5W10823711 Whirlpool Surface Element Left Front and Right Rear
5W10823692 Whirlpool Dual Radiant Element
69759094 Whirlpool Spring
7WP3191050 Whirlpool Infinite Switch
7WP9759474 Whirlpool Infinite Switch
7WP3191049 Infinite Switch Left Rear Right Front
7Switch, Infinite (RR)
83183956 Whirlpool Oven Seal Switch
9W10491984 Whirlpool Switch Seal
108286043BT Whirlpool Knob
108286043WH Whirlpool Knob
10WP8286043BL Whirlpool Knob
118186533 Whirlpool Hardware
12Box, Burner
13CLIP, SPRING (FOR BRIDGE)
158285469 Whirlpool Oven Seal Switch
16WP9762441 Whirlpool Selector Switch
17WP486579 Whirlpool Air Conditioner Screw
188286044BL Whirlpool Knob
18Knob, Accusimer (Biscuit)
19WPL 3191839
19Shield, Heat Control
20Rail, Element (3)
21Shield, Heat
21WP3196557 Whirlpool Screw
22Rail, Element (1)
23WP3400093 Whirlpool Screw
