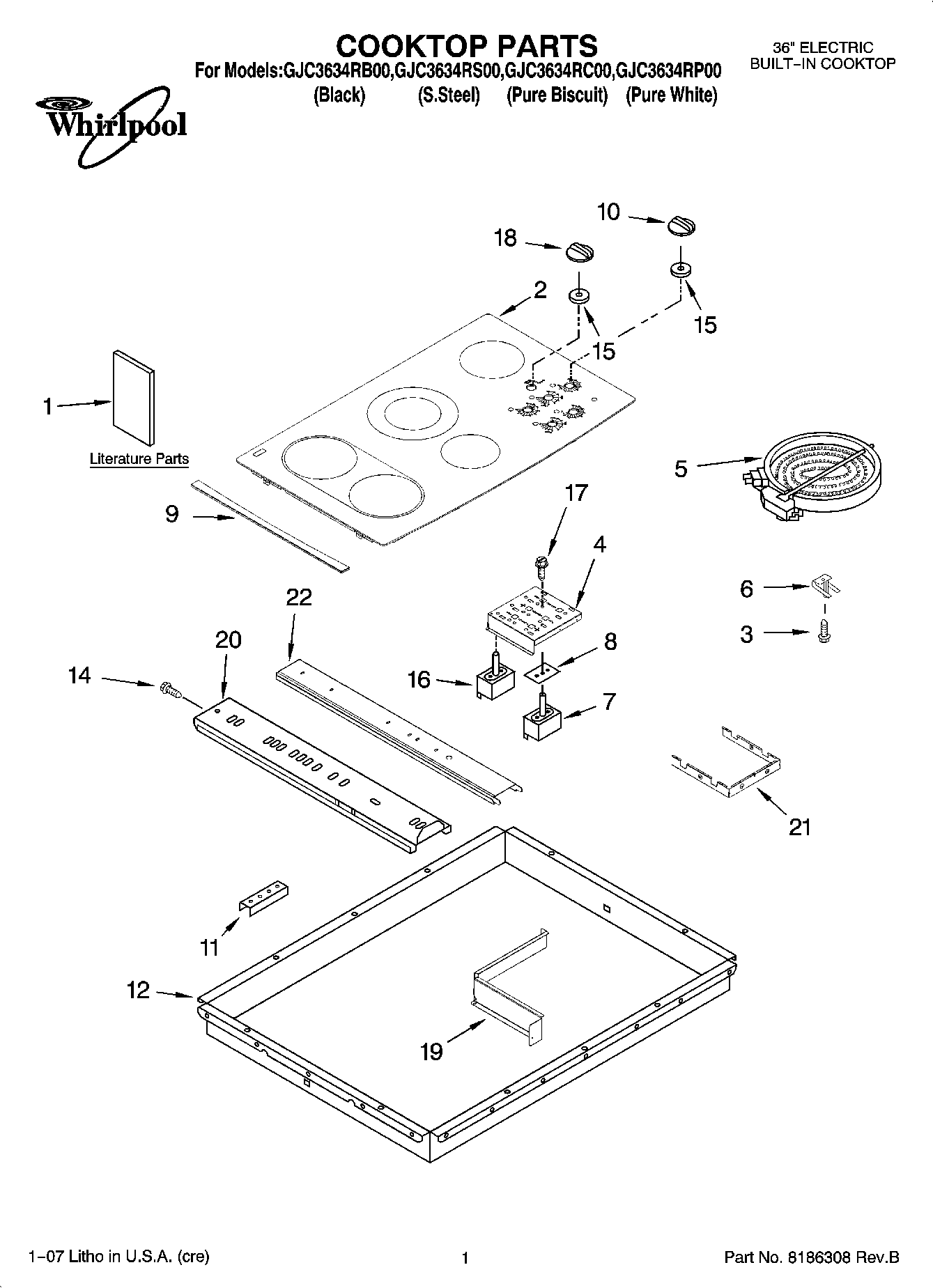

GJC3634RS00 01 – COOKTOP PARTS, OPTIONAL PARTS

GJC3634RS00 01 – COOKTOP PARTS, OPTIONAL PARTS

Written by

in

GJC3634RS00 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI66388A9
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
WPL ARI66389A7
8286348 Whirlpool Wire Harness
WPL 8285957
WPL 8285988
WPL ARI66386A4
WPL ARI66387A2
Wire (14 Ga. 150 c Brown)
242831 Whirlpool Oven Wire
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
WP3400015 Whirlpool Screw
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
W10491985 Whirlpool Screw
Wire (14 Ga. 150 c Orange)
1Safe Cooking Tips
1Use & Care Guide
1INSTALLATION INSTRUCTIONS
1Wiring Diagram
2Cooktop & Bracket Assembly (S.Steel)
2Cooktop & Bracket Assembly (Biscuit)
2Cooktop & Bracket Assembly (Black)
2Cooktop & Bracket Assembly (White)
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
5W10823711 Whirlpool Surface Element Left Front and Right Rear
5W10823695 Whirlpool Surface Element
5WP8523700 Whirlpool Surface Element
5W10823692 Whirlpool Dual Radiant Element
69759094 Whirlpool Spring
7WP3191049 Infinite Switch Left Rear Right Front
7Switch, Infinite (RR)
7WP9759474 Whirlpool Infinite Switch
7WP3191050 Whirlpool Infinite Switch
8W10491984 Whirlpool Switch Seal
9WPW10142238 Whirlpool Cooktop Trim
9Trim, Cooktop (S.Steel Mdl Only) (LH)
108286043WH Whirlpool Knob
108286043BT Whirlpool Knob
10WP8286043BL Whirlpool Knob
11WP3400093 Whirlpool Screw
118186533 Whirlpool Hardware
12Box, Burner
158285469 Whirlpool Oven Seal Switch
16WP9762441 Whirlpool Selector Switch
17WP486579 Whirlpool Air Conditioner Screw
188286044BL Whirlpool Knob
18Knob, Accusimer (Biscuit)
19WPL 3191839
19Shield, Heat Control
203183956 Whirlpool Oven Seal Switch
20Rail, Element (2) (Side (3))
21WP3196557 Whirlpool Screw
21Shield, Heat
224455364 Whirlpool Oven Support Bracket
22Hardware Asm.
22Follo
22Rail, Element (1)
