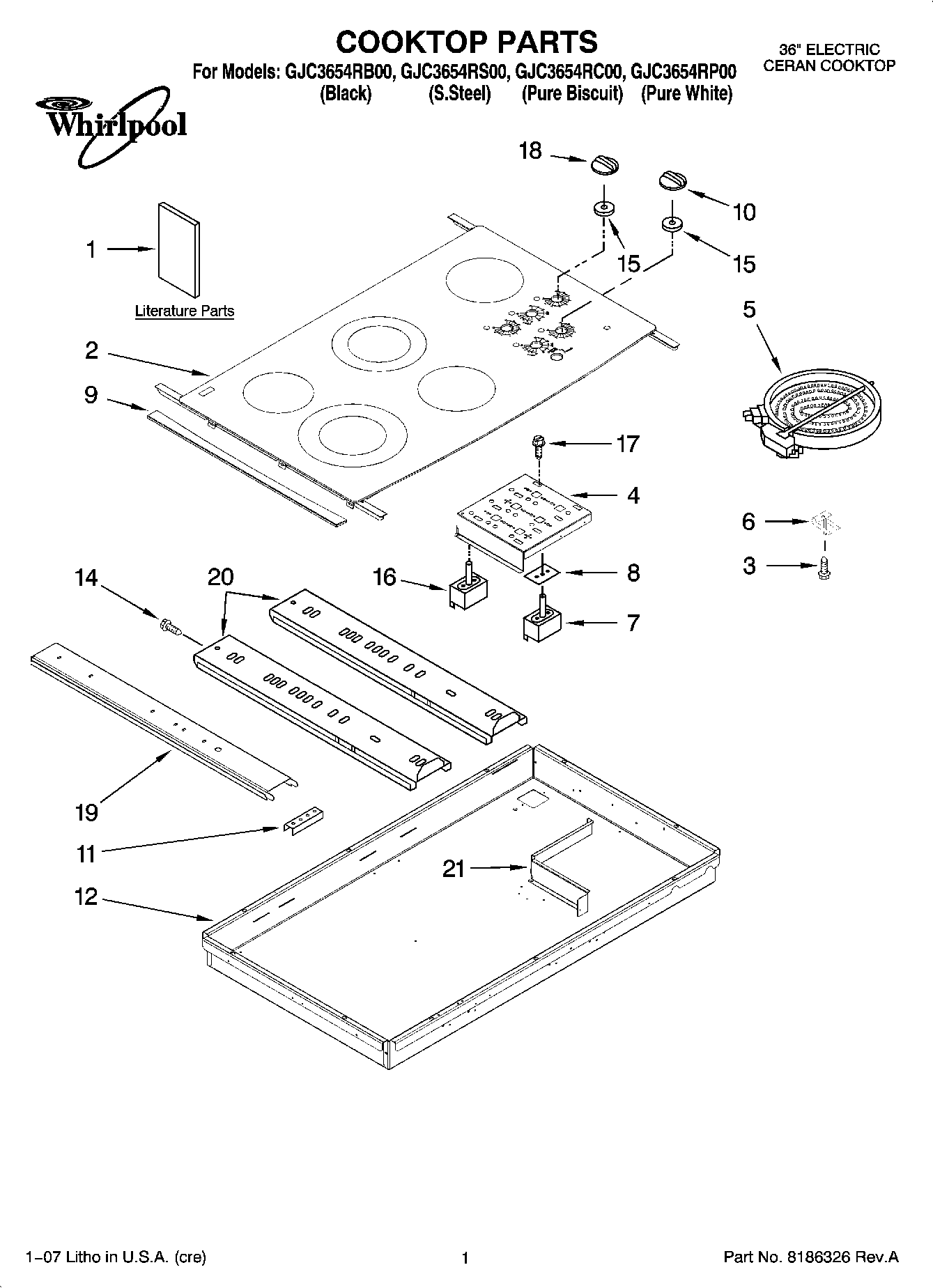

GJC3654RB00 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Green)
WPL ARI66394A7
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
WPL 8285989
242831 Whirlpool Oven Wire
8286348 Whirlpool Wire Harness
WP3400015 Whirlpool Screw
WPL ARI66393A5
WPL ARI66392A8
WPL ARI66391A6
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPL 8285955
1Use & Care Guide
1Wiring Diagram
1Safe Cooking Tips
1INSTALLATION INSTRUCTIONS
2Cooktop & Bracket Assembly (S.Steel)
2Cooktop & Bracket Assembly (Pure Biscuit)
2Cooktop & Bracket Assembly (Pure White)
2Cooktop & Bracket Assembly (Black)
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
5WP8523700 Whirlpool Surface Element
5W10823699 Whirlpool Right Front Surface Element
5W10823711 Whirlpool Surface Element Left Front and Right Rear
5ELEMENT, SURFACE 2000/1000W RR
5W10823692 Whirlpool Dual Radiant Element
69759094 Whirlpool Spring
7Switch, Infinite (RR)
7WP9759474 Whirlpool Infinite Switch
7WP3191049 Infinite Switch Left Rear Right Front
8W10491984 Whirlpool Switch Seal
9WPW10142238 Whirlpool Cooktop Trim
9Trim, Cooktop (S.Steel Mdl Only) (LH)
10WP8286043BL Whirlpool Knob
108286043BT Whirlpool Knob
108286043WH Whirlpool Knob
11WP3400093 Whirlpool Screw
118186533 Whirlpool Hardware
12Box, Burner
158285469 Whirlpool Oven Seal Switch
16WP9762441 Whirlpool Selector Switch
17WP486579 Whirlpool Air Conditioner Screw
18Knob, Accusimer (Biscuit)
188286044BL Whirlpool Knob
19Rail, Element (1)
20Rail, Element (2) (Side (3))
21Shield, Heat Control
21WPL 3191839
21Following Parts Not Illustra
214455364 Whirlpool Oven Support Bracket
21WP3196557 Whirlpool Screw
21Hardware Asm.
