GJC3654RB01 01 – COOKTOP PARTS, OPTIONAL PARTS
Written by
in

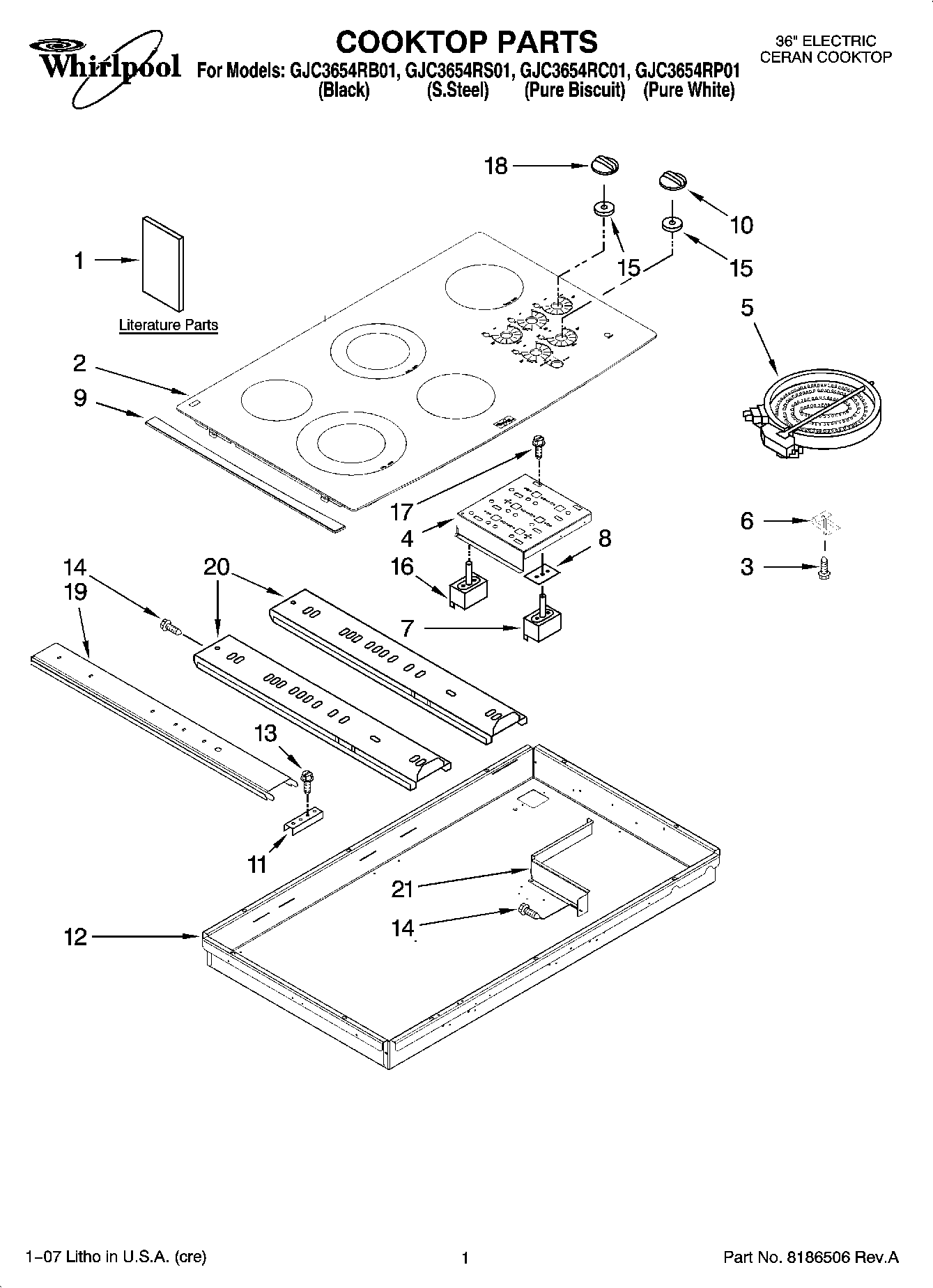

GJC3654RB01 01 – COOKTOP PARTS, OPTIONAL PARTS
Products
Position
Product
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
WPL ARI66397A9
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
WPL ARI66396A9
WPL 9760880
WPL 8286415
Wire (14 Ga. 150 c Brown)
242831 Whirlpool Oven Wire
WP3400015 Whirlpool Screw
8286348 Whirlpool Wire Harness
WPL ARI66399A2
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPL ARI66398A5
1
Safe Cooking Tips
1
Wiring Diagram
1
INSTALLATION INSTRUCTIONS
1
Use & Care Guide
1
Safe Cooking Tips (French)
2
Cooktop & Bracket Assembly (Pure White)
2
Cooktop & Bracket Assembly (Black)
2
Cooktop & Bracket Assembly (Pure Biscuit)
3
WP486754 Whirlpool Compactor Screw
4
Bracket, Switch Mounting
5
ELEMENT, SURFACE 2000/1000W RR
5
W10823711 Whirlpool Surface Element Left Front and Right Rear
5
WP8523700 Whirlpool Surface Element
5
W10823699 Whirlpool Right Front Surface Element
5
W10823692 Whirlpool Dual Radiant Element
6
9759094 Whirlpool Spring
7
WP3191049 Infinite Switch Left Rear Right Front
7
WP9759474 Whirlpool Infinite Switch
7
Switch, Infinite (RR)
8
3183956 Whirlpool Oven Seal Switch
9
WPW10142238 Whirlpool Cooktop Trim
9
Trim, Cooktop (S.Steel Mdl Only) (LH)
10
8286043WH Whirlpool Knob
10
8286043BT Whirlpool Knob
10
WP8286043BL Whirlpool Knob
11
8186533 Whirlpool Hardware
12
Box, Burner
13
WP3400093 Whirlpool Screw
14
WP3196557 Whirlpool Screw
15
8285469 Whirlpool Oven Seal Switch
16
WP9762441 Whirlpool Selector Switch
17
WP486579 Whirlpool Air Conditioner Screw
18
Knob, Accusimer (Biscuit)
18
8286044BL Whirlpool Knob
19
Rail, Element (1)
20
Rail, Element (2)
21
Hardware Asm.
21
Shield, Heat Control
21
Following Parts Not Illustrated
←
