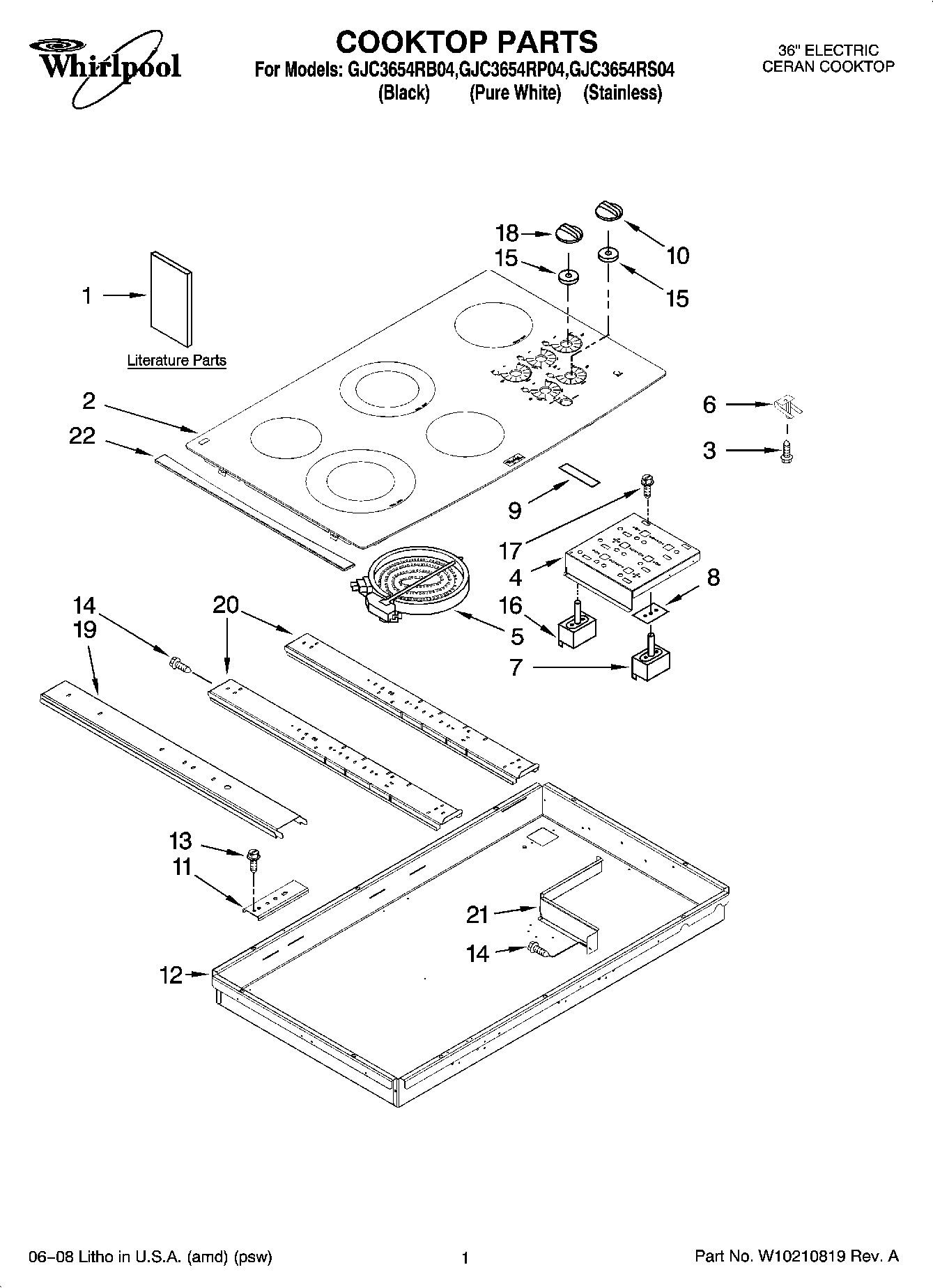

GJC3654RB04 01 – COOKTOP PARTS, OPTIONAL PARTSadmin2025-04-26T10:29:46+00:00GJC3654RB04 01 – COOKTOP PARTS, OPTIONAL PARTS
Products
| Position | Product |
|---|
| 242831 Whirlpool Oven Wire |
| WPL ARI66409A2 |
| Wire (14 Ga. 150 c Brown) |
| Wire (14 Ga. 150 c Green) |
| Wire (14 Ga. 150 c Orange) |
| Wire (14 Ga. 150 c Yellow) |
| Wire (12 Ga. 150 c Black) |
| Wire (14 Ga. 200 c Brown) |
| WPL 9760880 |
| 8286348 Whirlpool Wire Harness |
| WPL ARI66410A7 |
| WPL ARI66411A6 |
| WPL 8286415 |
| WPL ARI66413A2 |
| WPL ARI66412A3 |
| WP3400015 Whirlpool Screw |
| Wire, 25` Roll (Black 14 Ga.) |
| Wire, 25` Roll (Red 14 Ga.) |
| WP8286642 Whirlpool Tape |
| W10491985 Whirlpool Screw |
| 1 | Installation Instructions (Undercounter Oven) |
| 1 | Use & Care Guide |
| 1 | SAFER COOKING TIPS (ENGLISH |
| 1 | Safer Cooking Tips (French) |
| 1 | Wiring Diagram |
| 1 | INSTALLATION INSTRUCTIONS |
| 2 | Cooktop & Bracket Assembly (White) |
| 2 | Cooktop & Bracket Assembly (Black) |
| 3 | WP486754 Whirlpool Compactor Screw |
| 4 | Bracket, Switch Mounting |
| 5 | W10823711 Whirlpool Surface Element Left Front and Right Rear |
| 5 | W10823692 Whirlpool Dual Radiant Element |
| 5 | ELEMENT, SURFACE 2000/1000W RR |
| 5 | WP8523700 Whirlpool Surface Element |
| 5 | W10823699 Whirlpool Right Front Surface Element |
| 6 | 9759094 Whirlpool Spring |
| 7 | Switch, Infinite (RR) |
| 7 | WP3191049 Infinite Switch Left Rear Right Front |
| 7 | WP9759474 Whirlpool Infinite Switch |
| 8 | 3183956 Whirlpool Oven Seal Switch |
| 9 | W10491984 Whirlpool Switch Seal |
| 10 | WP8286043BL Whirlpool Knob |
| 10 | 8286043WH Whirlpool Knob |
| 11 | 8186533 Whirlpool Hardware |
| 12 | Box, Burner |
| 13 | WP3400093 Whirlpool Screw |
| 14 | WP3196557 Whirlpool Screw |
| 15 | 8285469 Whirlpool Oven Seal Switch |
| 16 | WP9762441 Whirlpool Selector Switch |
| 17 | WP486579 Whirlpool Air Conditioner Screw |
| 18 | 8286044BL Whirlpool Knob |
| 19 | Rail, Element (1) |
| 20 | Rail, Element (3) |
| 21 | Shield, Heat Control |
| 22 | WPW10142238 Whirlpool Cooktop Trim |
| 22 | Trim, Cooktop (Stainless Only) (Left) |
