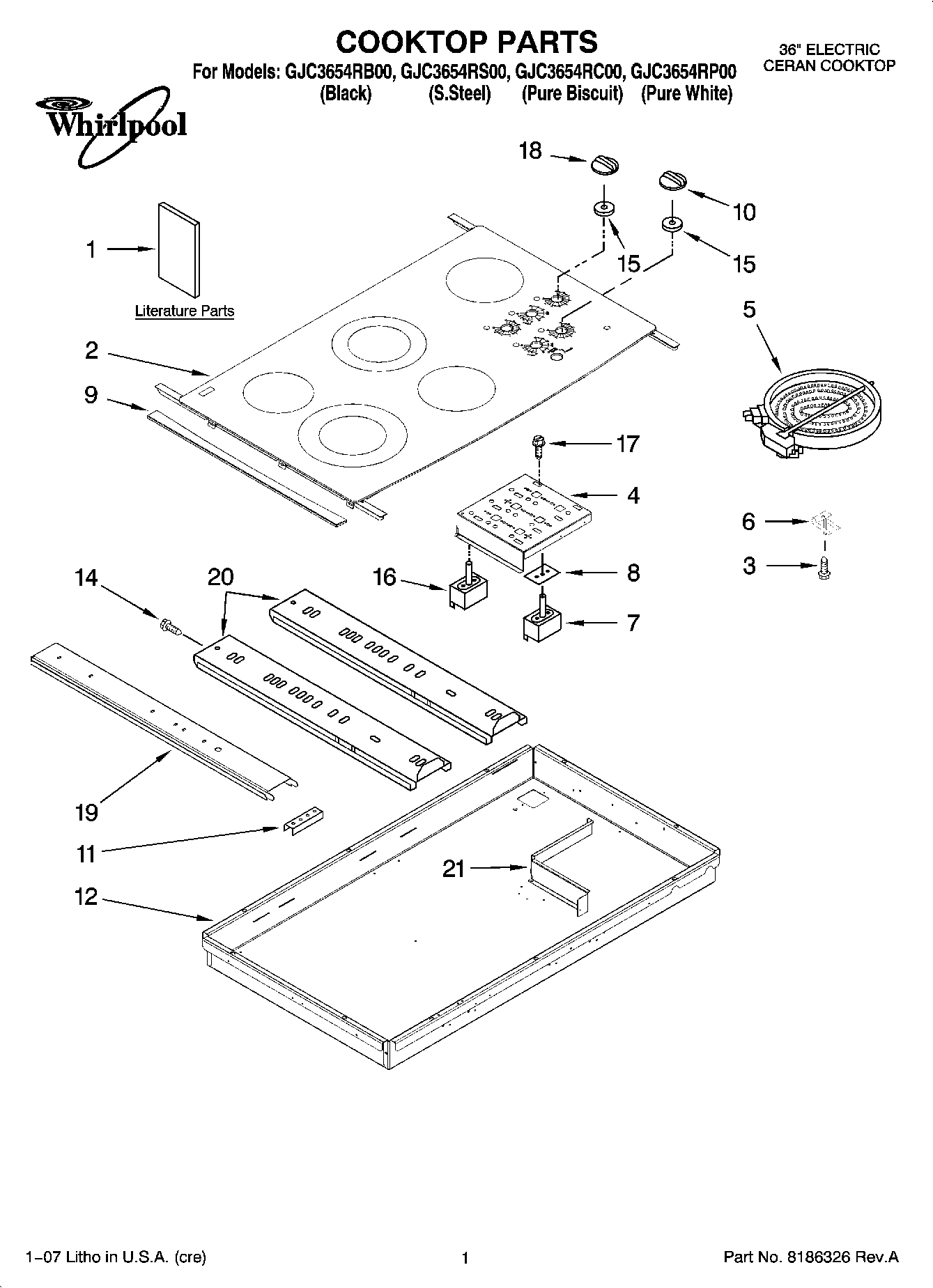

GJC3654RC00 01 – COOKTOP PARTS, OPTIONAL PARTSadmin2025-04-26T10:31:06+00:00GJC3654RC00 01 – COOKTOP PARTS, OPTIONAL PARTS
Products
| Position | Product |
|---|
| Wire (14 Ga. 150 c Orange) |
| Wire (14 Ga. 150 c Brown) |
| Wire (14 Ga. 150 c Green) |
| WPL ARI66421A5 |
| Wire (14 Ga. 150 c Yellow) |
| Wire (12 Ga. 150 c Black) |
| 18 Ga. 80~c Rating (Red) |
| Wire (14 Ga. 200 c Brown) |
| 1 |
| WPL 8285989 |
| 242831 Whirlpool Oven Wire |
| 8286348 Whirlpool Wire Harness |
| WP3400015 Whirlpool Screw |
| WPL ARI66420A5 |
| WPL ARI66419A4 |
| WPL ARI66418A5 |
| Wire, 25` Roll (Black 14 Ga.) |
| Wire, 25` Roll (Red 14 Ga.) |
| Wire, 25`` Roll (White 14 GA.) |
| W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz) |
| WPL 8285955 |
| 1 | Use & Care Guide |
| 1 | Wiring Diagram |
| 1 | Safe Cooking Tips |
| 1 | INSTALLATION INSTRUCTIONS |
| 2 | Cooktop & Bracket Assembly (S.Steel) |
| 2 | Cooktop & Bracket Assembly (Pure Biscuit) |
| 2 | Cooktop & Bracket Assembly (Pure White) |
| 2 | Cooktop & Bracket Assembly (Black) |
| 3 | WP486754 Whirlpool Compactor Screw |
| 4 | Bracket, Switch Mounting |
| 5 | WP8523700 Whirlpool Surface Element |
| 5 | W10823699 Whirlpool Right Front Surface Element |
| 5 | W10823711 Whirlpool Surface Element Left Front and Right Rear |
| 5 | ELEMENT, SURFACE 2000/1000W RR |
| 5 | W10823692 Whirlpool Dual Radiant Element |
| 6 | 9759094 Whirlpool Spring |
| 7 | Switch, Infinite (RR) |
| 7 | WP9759474 Whirlpool Infinite Switch |
| 7 | WP3191049 Infinite Switch Left Rear Right Front |
| 8 | W10491984 Whirlpool Switch Seal |
| 9 | WPW10142238 Whirlpool Cooktop Trim |
| 9 | Trim, Cooktop (S.Steel Mdl Only) (LH) |
| 10 | WP8286043BL Whirlpool Knob |
| 10 | 8286043BT Whirlpool Knob |
| 10 | 8286043WH Whirlpool Knob |
| 11 | WP3400093 Whirlpool Screw |
| 11 | 8186533 Whirlpool Hardware |
| 12 | Box, Burner |
| 15 | 8285469 Whirlpool Oven Seal Switch |
| 16 | WP9762441 Whirlpool Selector Switch |
| 17 | WP486579 Whirlpool Air Conditioner Screw |
| 18 | Knob, Accusimer (Biscuit) |
| 18 | 8286044BL Whirlpool Knob |
| 19 | Rail, Element (1) |
| 20 | Rail, Element (2) (Side (3)) |
| 21 | Shield, Heat Control |
| 21 | WPL 3191839 |
| 21 | 4455364 Whirlpool Oven Support Bracket |
| 21 | Following Parts Not Illustra |
| 21 | WP3196557 Whirlpool Screw |
| 21 | Hardware Asm. |
