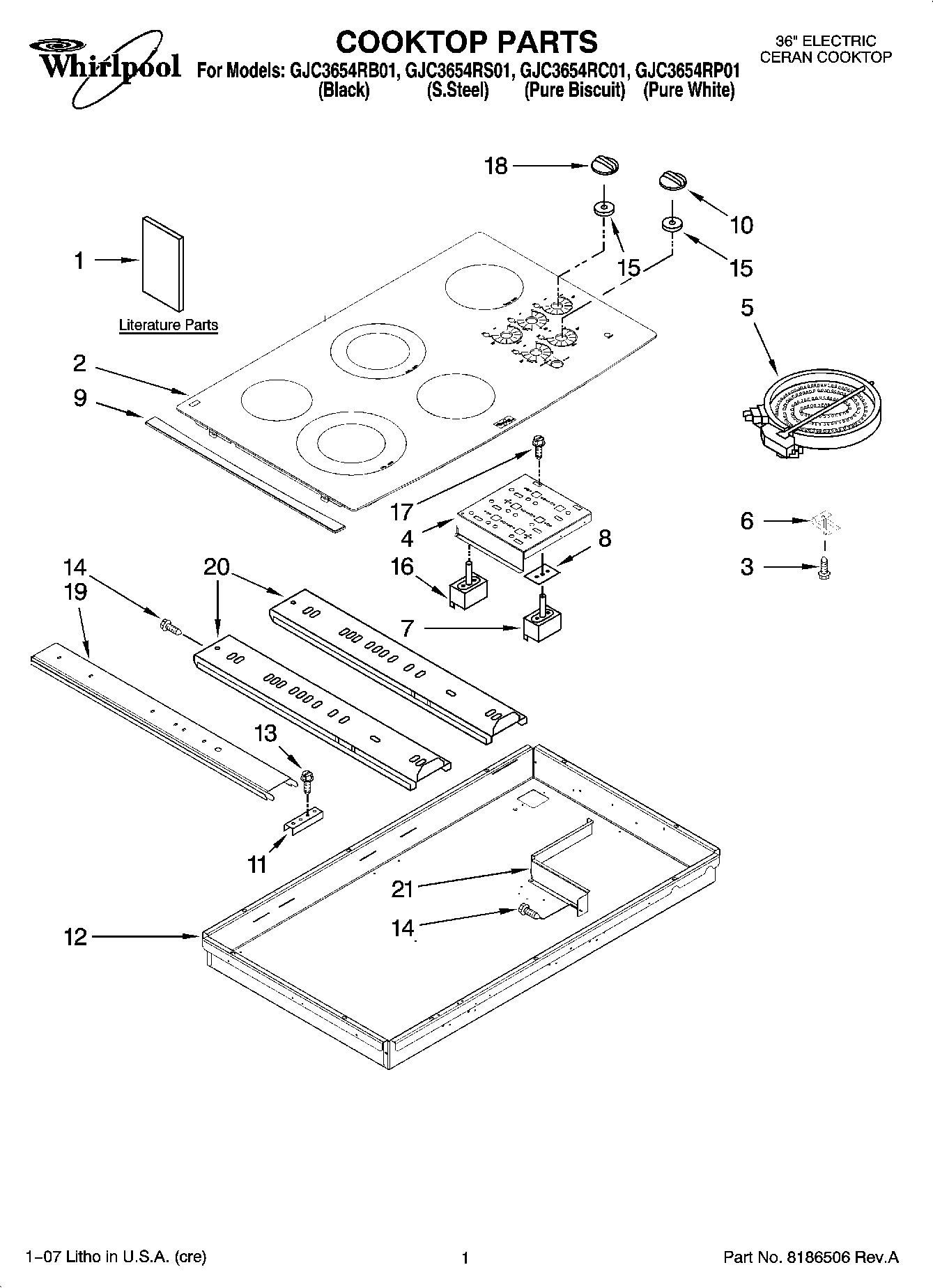

GJC3654RC01 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
WPL 9760880
WPL 8286415
WPL ARI66426A9
Wire (14 Ga. 150 c Brown)
242831 Whirlpool Oven Wire
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WP3400015 Whirlpool Screw
WPL ARI66425A2
WPL ARI66424A3
8286348 Whirlpool Wire Harness
WPL ARI66423A6
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
1Use & Care Guide
1Wiring Diagram
1INSTALLATION INSTRUCTIONS
1Safe Cooking Tips
1Safe Cooking Tips (French)
2Cooktop & Bracket Assembly (Pure White)
2Cooktop & Bracket Assembly (Pure Biscuit)
2Cooktop & Bracket Assembly (Black)
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
5ELEMENT, SURFACE 2000/1000W RR
5WP8523700 Whirlpool Surface Element
5W10823699 Whirlpool Right Front Surface Element
5W10823711 Whirlpool Surface Element Left Front and Right Rear
5W10823692 Whirlpool Dual Radiant Element
69759094 Whirlpool Spring
7WP3191049 Infinite Switch Left Rear Right Front
7WP9759474 Whirlpool Infinite Switch
7Switch, Infinite (RR)
83183956 Whirlpool Oven Seal Switch
9WPW10142238 Whirlpool Cooktop Trim
9Trim, Cooktop (S.Steel Mdl Only) (LH)
108286043WH Whirlpool Knob
108286043BT Whirlpool Knob
10WP8286043BL Whirlpool Knob
118186533 Whirlpool Hardware
12Box, Burner
13WP3400093 Whirlpool Screw
14WP3196557 Whirlpool Screw
158285469 Whirlpool Oven Seal Switch
16WP9762441 Whirlpool Selector Switch
17WP486579 Whirlpool Air Conditioner Screw
18Knob, Accusimer (Biscuit)
188286044BL Whirlpool Knob
19Rail, Element (1)
20Rail, Element (2)
21Hardware Asm.
21Shield, Heat Control
21Following Parts Not Illustrated
