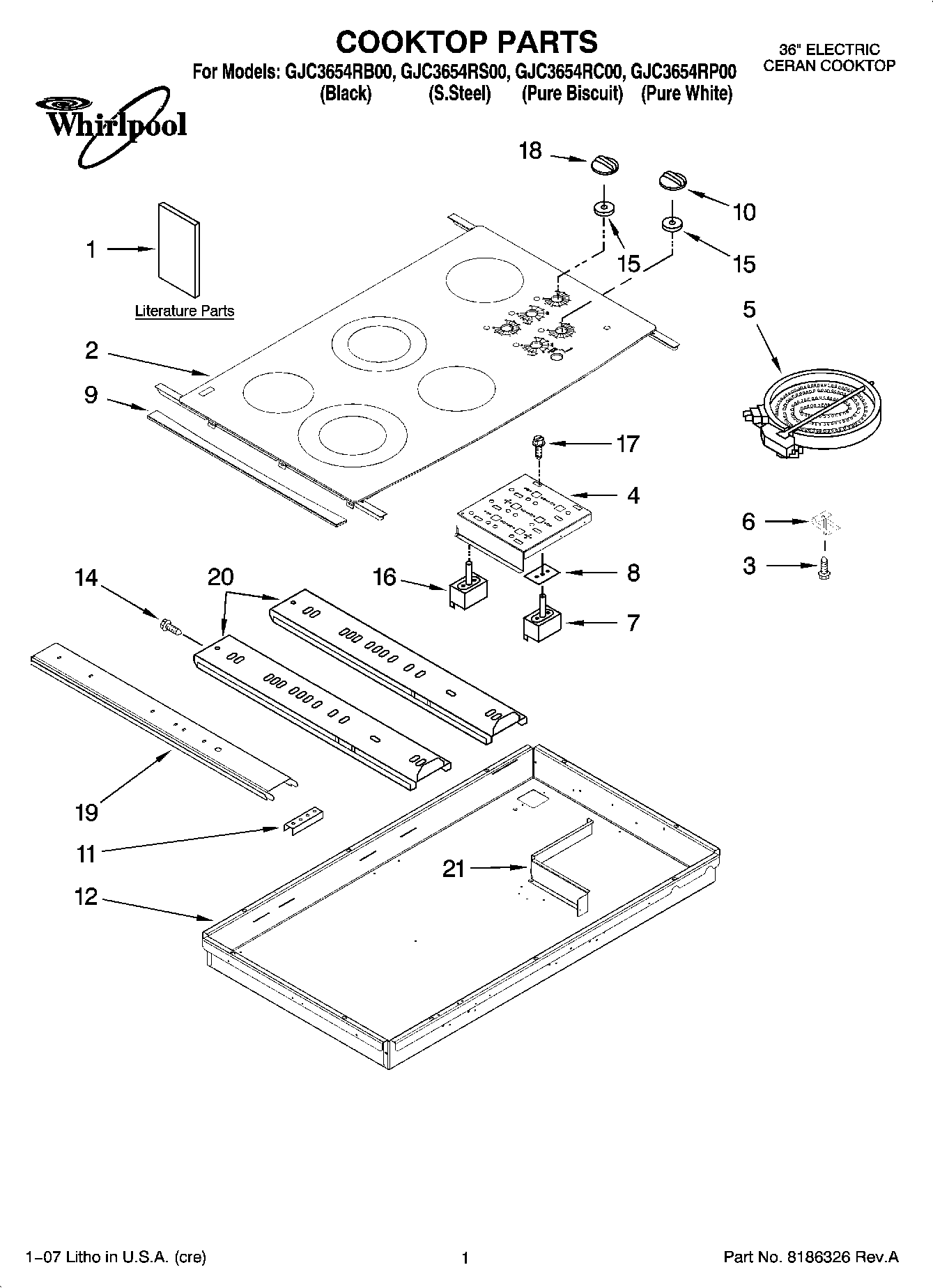

GJC3654RP00 01 – COOKTOP PARTS, OPTIONAL PARTS

GJC3654RP00 01 – COOKTOP PARTS, OPTIONAL PARTS

Written by

in

GJC3654RP00 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
Wire (14 Ga. 150 c Orange)
WPL ARI66431A3
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
WPL ARI66430A6
WPL ARI66428A7
WPL 8285989
WPL 8285955
WPL ARI66429A7
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
WP3400015 Whirlpool Screw
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
8286348 Whirlpool Wire Harness
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
242831 Whirlpool Oven Wire
1Use & Care Guide
1Wiring Diagram
1INSTALLATION INSTRUCTIONS
1Safe Cooking Tips
2Cooktop & Bracket Assembly (Black)
2Cooktop & Bracket Assembly (Pure White)
2Cooktop & Bracket Assembly (S.Steel)
2Cooktop & Bracket Assembly (Pure Biscuit)
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
5ELEMENT, SURFACE 2000/1000W RR
5W10823699 Whirlpool Right Front Surface Element
5WP8523700 Whirlpool Surface Element
5W10823692 Whirlpool Dual Radiant Element
5W10823711 Whirlpool Surface Element Left Front and Right Rear
69759094 Whirlpool Spring
7Switch, Infinite (RR)
7WP3191049 Infinite Switch Left Rear Right Front
7WP9759474 Whirlpool Infinite Switch
8W10491984 Whirlpool Switch Seal
9WPW10142238 Whirlpool Cooktop Trim
9Trim, Cooktop (S.Steel Mdl Only) (LH)
108286043BT Whirlpool Knob
10WP8286043BL Whirlpool Knob
108286043WH Whirlpool Knob
118186533 Whirlpool Hardware
11WP3400093 Whirlpool Screw
12Box, Burner
158285469 Whirlpool Oven Seal Switch
16WP9762441 Whirlpool Selector Switch
17WP486579 Whirlpool Air Conditioner Screw
188286044BL Whirlpool Knob
18Knob, Accusimer (Biscuit)
19Rail, Element (1)
20Rail, Element (2) (Side (3))
21Shield, Heat Control
214455364 Whirlpool Oven Support Bracket
21WPL 3191839
21WP3196557 Whirlpool Screw
21Hardware Asm.
21Following Parts Not Illustra
