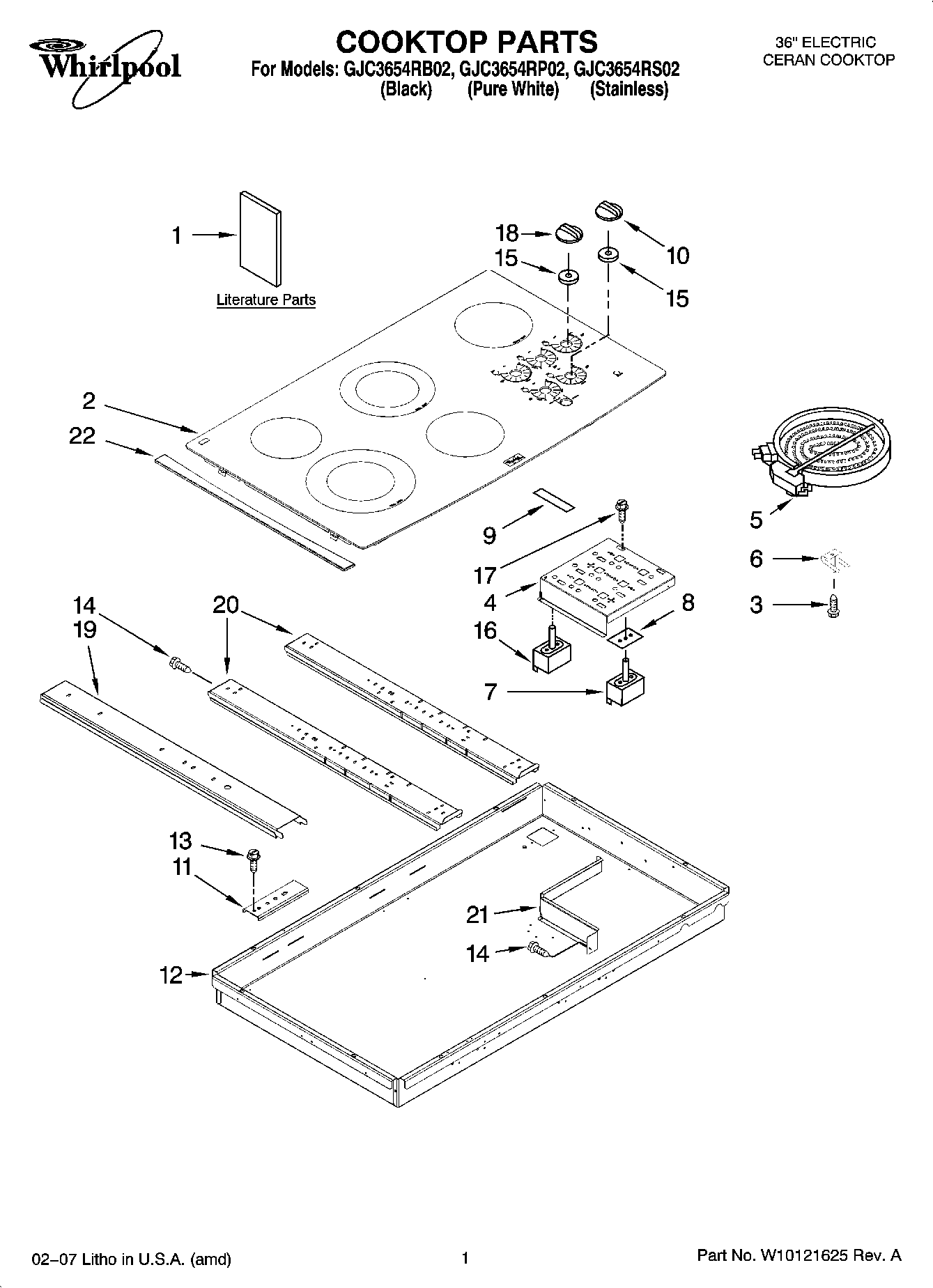

GJC3654RP02 01 – COOKTOP PARTS, OPTIONAL PARTS
Written by
in
GJC3654RP02 01 – COOKTOP PARTS, OPTIONAL PARTS
Products
Position
Product
242831 Whirlpool Oven Wire
WPL 8286415
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
8286348 Whirlpool Wire Harness
WPL 9760880
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPL ARI66441A7
WP3400015 Whirlpool Screw
WPL ARI66440A9
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
WPL ARI66439A8
WPL ARI66438A1
W10491985 Whirlpool Screw
1
Use & Care Guide
1
Installation Instructions (Undercounter Oven)
1
LITERATURE PARTS
1
Wiring Diagram
1
INSTALLATION INSTRUCTIONS
1
Safe Cooking Tips
1
Safe Cooking Tips (French)
2
Cooktop & Bracket Assembly (Black)
2
Cooktop & Bracket Assembly (White)
3
WP486754 Whirlpool Compactor Screw
4
Bracket, Switch Mounting
5
WP8523700 Whirlpool Surface Element
5
W10823711 Whirlpool Surface Element Left Front and Right Rear
5
W10823699 Whirlpool Right Front Surface Element
5
ELEMENT, SURFACE 2000/1000W RR
5
W10823692 Whirlpool Dual Radiant Element
6
9759094 Whirlpool Spring
7
Switch, Infinite (RR)
7
WP3191049 Infinite Switch Left Rear Right Front
7
WP9759474 Whirlpool Infinite Switch
8
3183956 Whirlpool Oven Seal Switch
9
W10491984 Whirlpool Switch Seal
10
8286043WH Whirlpool Knob
10
WP8286043BL Whirlpool Knob
11
8186533 Whirlpool Hardware
12
Box, Burner
13
WP3400093 Whirlpool Screw
14
WP3196557 Whirlpool Screw
15
8285469 Whirlpool Oven Seal Switch
16
WP9762441 Whirlpool Selector Switch
17
WP486579 Whirlpool Air Conditioner Screw
18
8286044BL Whirlpool Knob
19
Rail, Element (1)
20
Rail, Element (3)
21
Shield, Heat Control
22
WPW10142238 Whirlpool Cooktop Trim
22
WP8286642 Whirlpool Tape
22
Hardware Asm.
22
Trim, Cooktop (S.Steel Mdl Only) (LH)
22
4455364 Whirlpool Oven Support Bracket
←
