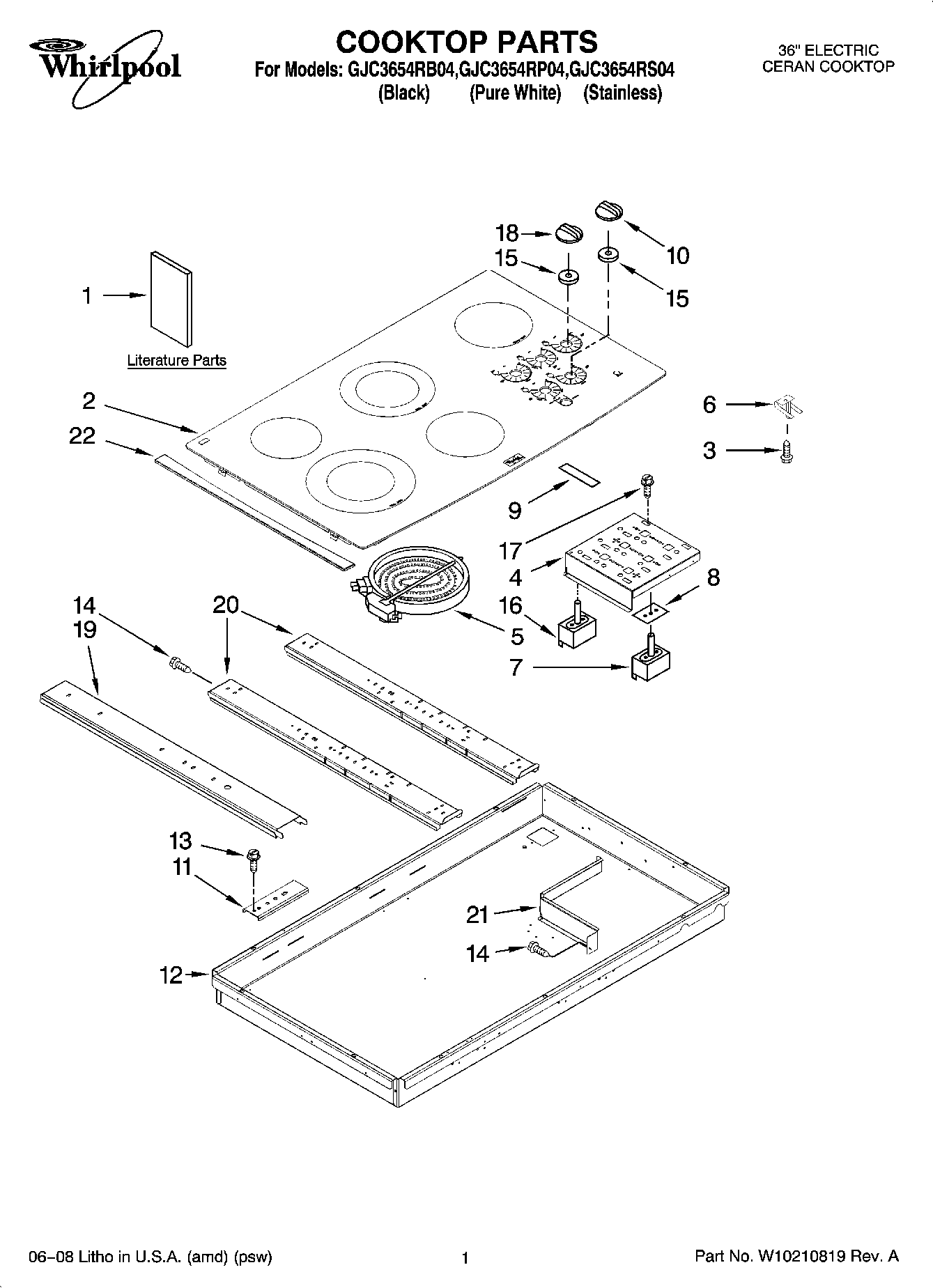

GJC3654RP04 01 – COOKTOP PARTS, OPTIONAL PARTS

GJC3654RP04 01 – COOKTOP PARTS, OPTIONAL PARTS

Written by

in

GJC3654RP04 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
242831 Whirlpool Oven Wire
WPL ARI66446A4
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
WPL 9760880
8286348 Whirlpool Wire Harness
WPL ARI66447A5
WP8286642 Whirlpool Tape
W10491985 Whirlpool Screw
WP3400015 Whirlpool Screw
WPL ARI66450A8
WPL ARI66449A9
WPL ARI66448A5
WPL 8286415
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
1Use & Care Guide
1Installation Instructions (Undercounter Oven)
1INSTALLATION INSTRUCTIONS
1Wiring Diagram
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
2Cooktop & Bracket Assembly (Black)
2Cooktop & Bracket Assembly (White)
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
5ELEMENT, SURFACE 2000/1000W RR
5W10823692 Whirlpool Dual Radiant Element
5W10823699 Whirlpool Right Front Surface Element
5W10823711 Whirlpool Surface Element Left Front and Right Rear
5WP8523700 Whirlpool Surface Element
69759094 Whirlpool Spring
7Switch, Infinite (RR)
7WP3191049 Infinite Switch Left Rear Right Front
7WP9759474 Whirlpool Infinite Switch
83183956 Whirlpool Oven Seal Switch
9W10491984 Whirlpool Switch Seal
10WP8286043BL Whirlpool Knob
108286043WH Whirlpool Knob
118186533 Whirlpool Hardware
12Box, Burner
13WP3400093 Whirlpool Screw
14WP3196557 Whirlpool Screw
158285469 Whirlpool Oven Seal Switch
16WP9762441 Whirlpool Selector Switch
17WP486579 Whirlpool Air Conditioner Screw
188286044BL Whirlpool Knob
19Rail, Element (1)
20Rail, Element (3)
21Shield, Heat Control
22WPW10142238 Whirlpool Cooktop Trim
22Trim, Cooktop (Stainless Only) (Left)
