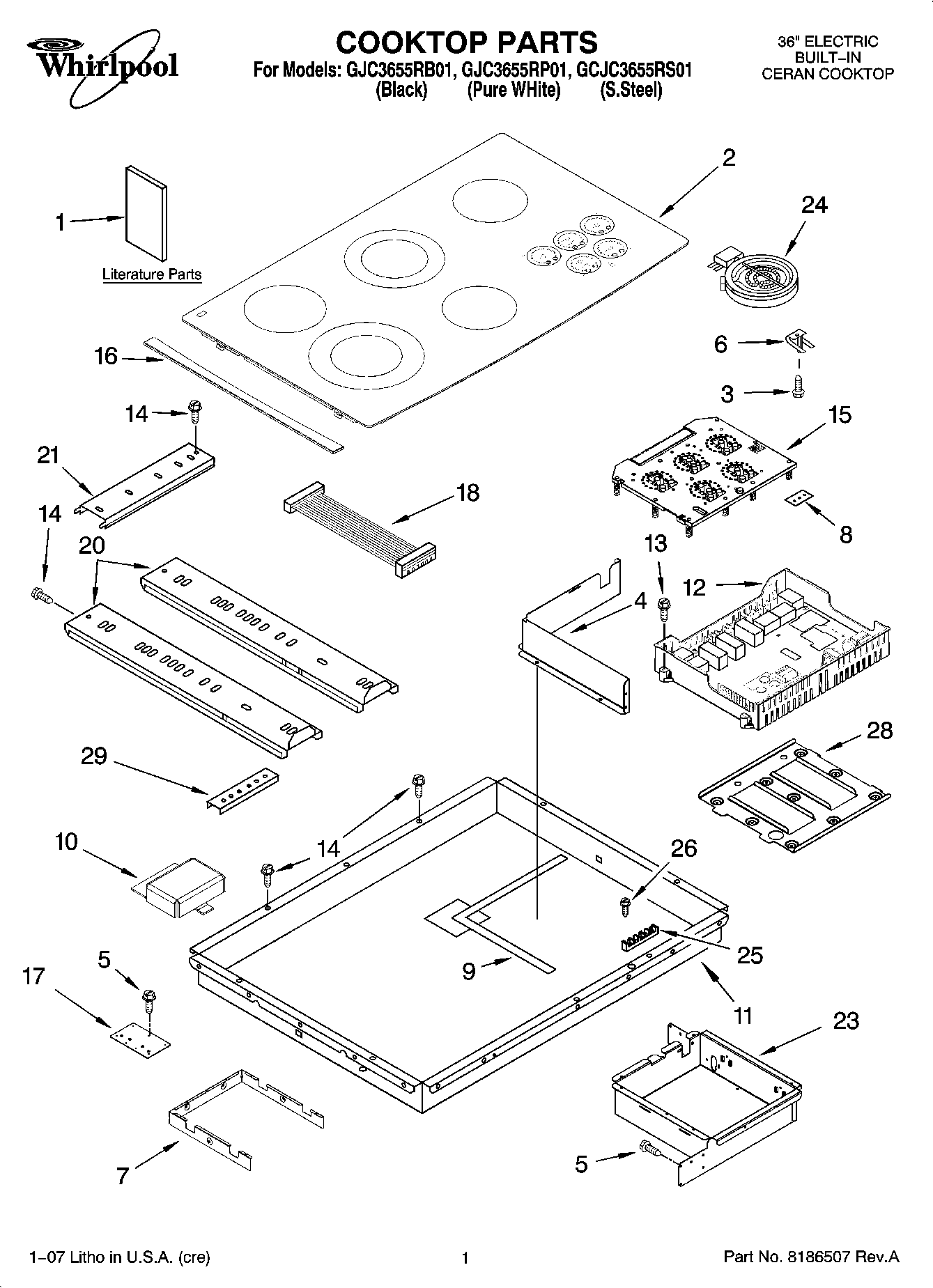

GJC3655RB01 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI66489A7
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	WPL ARI66490A6
	Bracket, Support (2)
	Seal, Foam (36“)
	Clip, Harnes
	WPL 8286379
	8285952 Whirlpool Oven Wire Harness
	WPL ARI66486A5
	WPL ARI66487A5
	WPL ARI66488A7
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	BUSHING
	WP3400015 Whirlpool Screw
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	242831 Whirlpool Oven Wire
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	Wire, 25“ Roll (White 14 GA.)
	Wire (14 Ga. 150 c Brown)
1	Safe Cooking Tips
1	Safe Cooking Tips (French)
1	Use & Care Guide
1	INSTALLATION INSTRUCTIONS
1	Tech Sheet
2	Cooktop, Glass (Black)
2	Cooktop, Glass (Stainless Steel)
2	Cooktop, Glass (White)
3	WP486754 Whirlpool Compactor Screw
4	Wall, Inside
5	W10491985 Whirlpool Screw
6	9759094 Whirlpool Spring
7	Shield, Heat
8	W10491984 Whirlpool Switch Seal
9	Seal, Heat Shield
10	8285593 Whirlpool Oven Wire Cover
11	Box, Burner
12	Board, Power
13	WP4449745 Whirlpool Screw
14	WP3196557 Whirlpool Screw
15	WP8286135 Whirlpool Electronic Control Board
16	WPW10142238 Whirlpool Cooktop Trim
16	Trim, Cooktop (S.Steel Mdl Only) (LH)
17	Bracket, Bottom
18	Cable Ass`y
20	Rail, Element (2)
21	Rail, Element (1)
23	Box, Touch Control
24	WP8285230 Whirlpool Surface Element
24	WP4453907 Whirlpool Surface Element
24	WP8285845 Whirlpool Surface Element
24	Element, Surface (2000/1000W RR)
25	WP8203546 Whirlpool Terminal Block
26	WP3196163 Whirlpool Screw
28	Support, Module
29	WP3400093 Whirlpool Screw
29	8186533 Whirlpool Hardware
