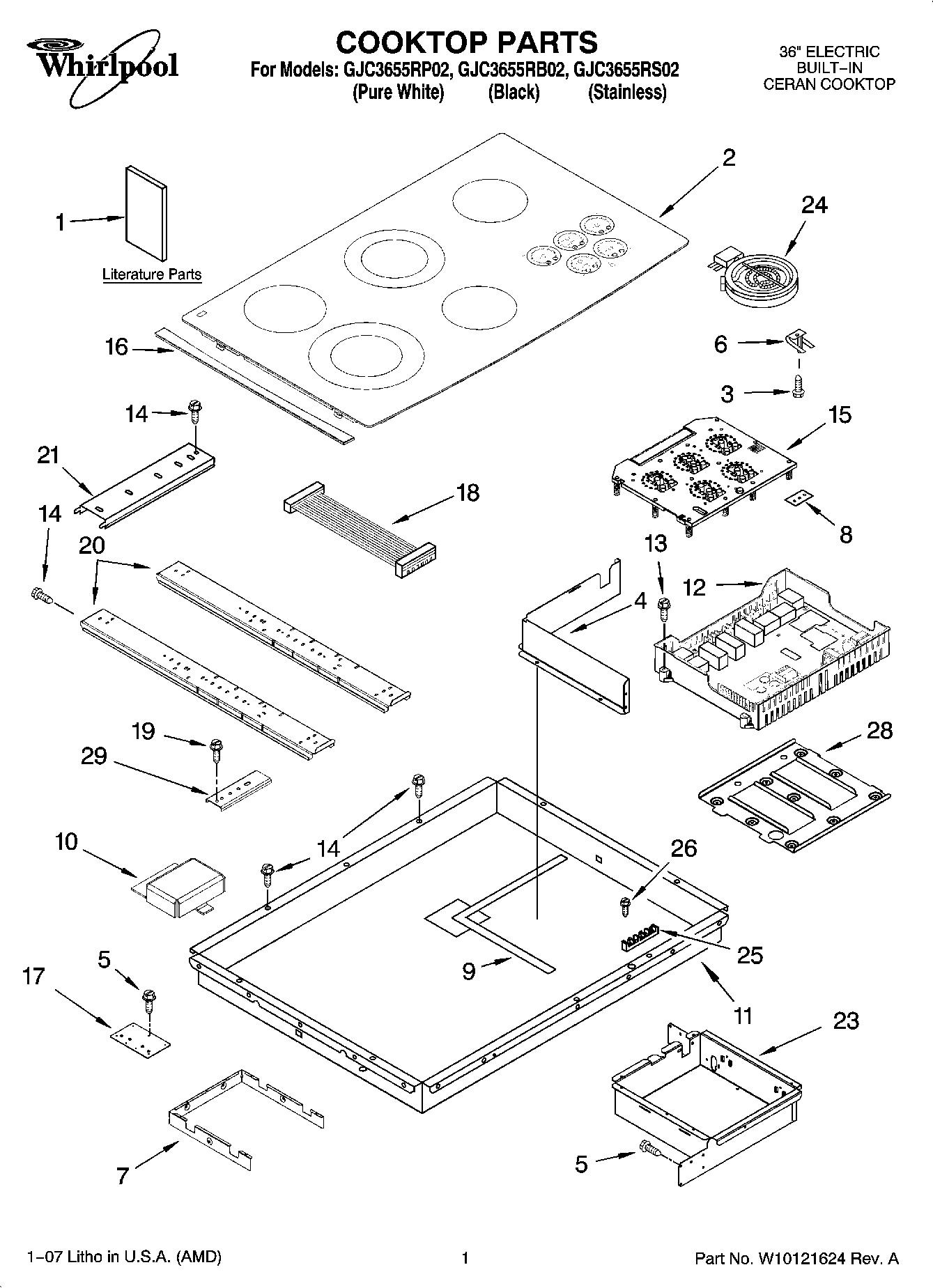

GJC3655RB02 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
Seal, Foam (36“)
WPL ARI66493A1
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
WPL ARI66492A9
Bracket, Support (2)
8285952 Whirlpool Oven Wire Harness
WPL 8286379
Clip, Harnes
Wire (14 Ga. 150 c Brown)
242831 Whirlpool Oven Wire
WPL ARI66495A1
WP3400015 Whirlpool Screw
WPL ARI66494A3
Wire (14 Ga. 150 c Green)
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WP8286642 Whirlpool Tape
BUSHING
1Installation Instructions (Undercounter, Oven)
1Tech Sheet
1LITERATURE PARTS
1INSTALLATION INSTRUCTIONS
1Use & Care Guide
1Safe Cooking Tips (French)
1Safe Cooking Tips
2Cooktop, Glass (Stainless)
2Cooktop, Glass (Black)
2Cooktop, Glass (White)
3WP486754 Whirlpool Compactor Screw
4Wall, Inside
5W10491985 Whirlpool Screw
69759094 Whirlpool Spring
7Shield, Heat
8W10491984 Whirlpool Switch Seal
9Seal, Heat Shield
108285593 Whirlpool Oven Wire Cover
11Box, Burner
12Appliance Manager, Module
13WP4449745 Whirlpool Screw
14WP3196557 Whirlpool Screw
15WP8286135 Whirlpool Electronic Control Board
16WPW10142238 Whirlpool Cooktop Trim
16Trim, Cooktop (S.Steel Mdl Only) (LH)
17Bracket, Bottom
18Cable Ass`y
19WP3400093 Whirlpool Screw
20Rail, Element (3)
21Rail, Element (1)
23Box, Touch Control
24Element, Surface (2000/1000W RR)
24WP8285230 Whirlpool Surface Element
24WP4453907 Whirlpool Surface Element
24WP8285845 Whirlpool Surface Element
25WP8203546 Whirlpool Terminal Block
26WP3196163 Whirlpool Screw
28Support, Module
298186533 Whirlpool Hardware
