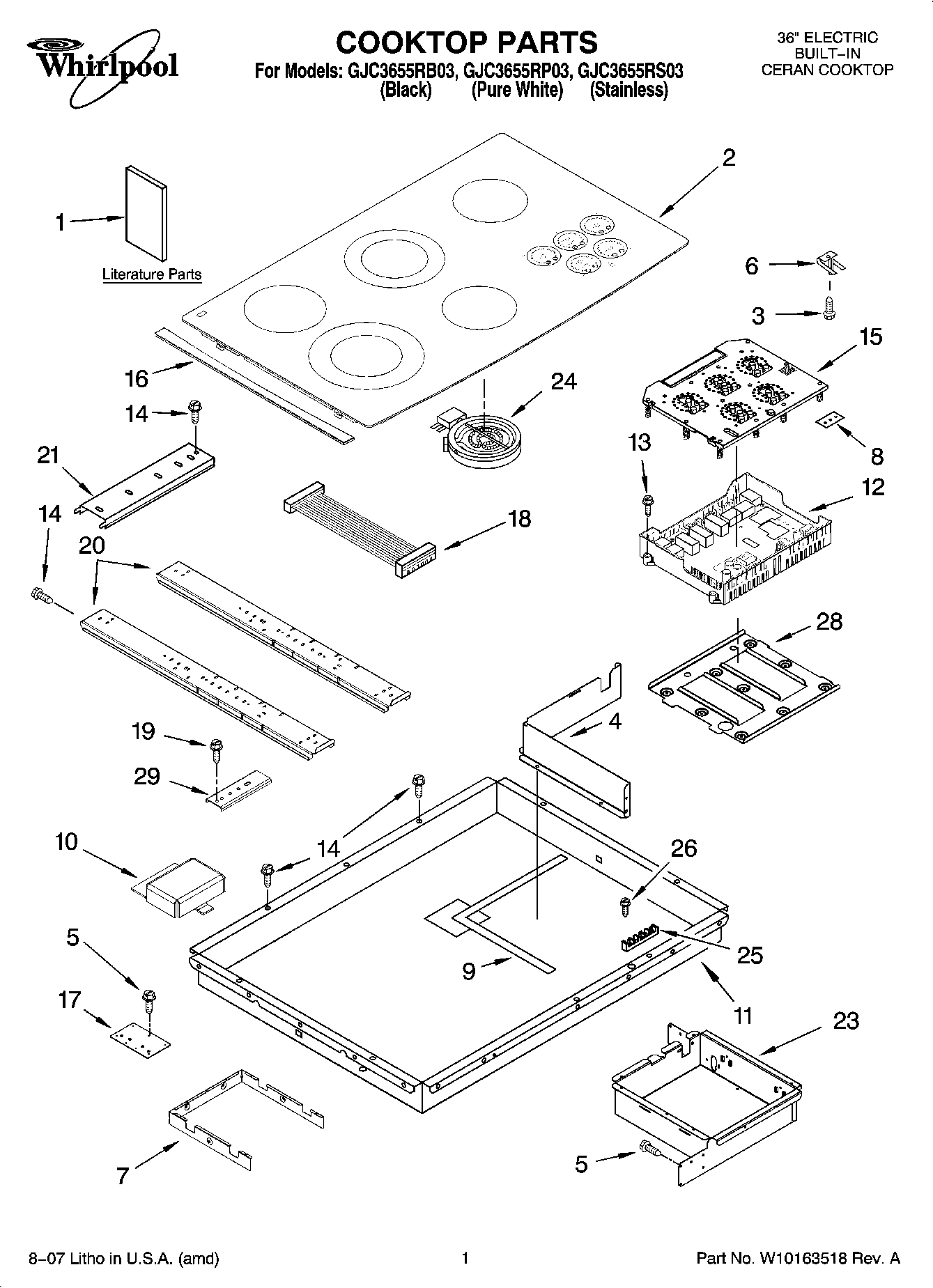

GJC3655RB03 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI66498A5
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	WPL ARI66499A4
	Seal, Foam (36“)
	Clip, Harnes
	WPL 8286379
	8285952 Whirlpool Oven Wire Harness
	WPL ARI66496A1
	WPL ARI66497A6
	Wire (14 Ga. 150 c Green)
	WP8286642 Whirlpool Tape
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	Wire (14 Ga. 150 c Brown)
	WP3400015 Whirlpool Screw
	242831 Whirlpool Oven Wire
	BUSHING
1	Use & Care Guide
1	Tech Sheet
1	INSTALLATION INSTRUCTIONS
1	Safe Cooking Tips (French)
1	Safe Cooking Tips
2	Cooktop, Glass (Black)
2	Cooktop, Glass (Stainless)
2	Cooktop, Glass (White)
3	WP486754 Whirlpool Compactor Screw
4	Wall, Inside
5	W10491985 Whirlpool Screw
6	9759094 Whirlpool Spring
7	Shield, Heat
8	W10491984 Whirlpool Switch Seal
9	Seal, Heat Shield
10	8285593 Whirlpool Oven Wire Cover
11	Box, Burner
12	Appliance Manager, Module
13	WP4449745 Whirlpool Screw
14	WP3196557 Whirlpool Screw
15	WP8286135 Whirlpool Electronic Control Board
15	Board, Control (White)
16	Trim, Cooktop (Stainless Only) (Left)
16	WPW10142238 Whirlpool Cooktop Trim
17	Bracket, Bottom
18	Cable Ass`y
19	WP3400093 Whirlpool Screw
20	Rail, Element (3)
21	Rail, Element (1)
23	Box, Touch Control
24	Element, Surface (2000/1000W RR)
24	WP4453907 Whirlpool Surface Element
24	WP8285230 Whirlpool Surface Element
24	WP8285845 Whirlpool Surface Element
25	WP8203546 Whirlpool Terminal Block
26	WP3196163 Whirlpool Screw
28	Support, Module
29	8186533 Whirlpool Hardware
