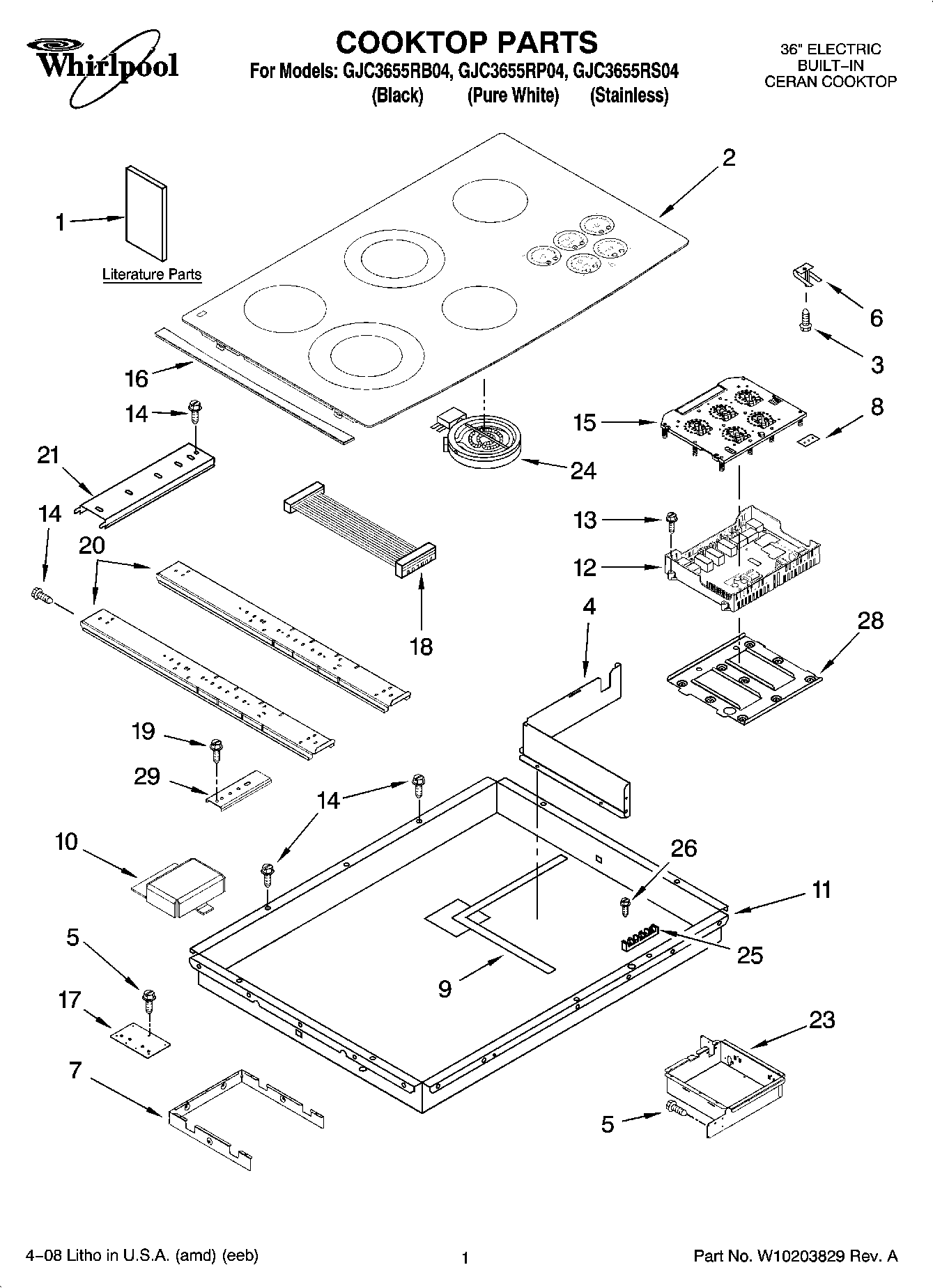

GJC3655RB04 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

Position	Product
	242831 Whirlpool Oven Wire
	WPL ARI66503A5
	WPL ARI66501A7
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 200 c Brown)
	WPL ARI66500A5
	Seal, Foam (36“)
	WP8286642 Whirlpool Tape
	8285952 Whirlpool Oven Wire Harness
	WPL 8286379
	WPL ARI66502A8
	WP3400015 Whirlpool Screw
	Nut
	Clip, Harnes
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
1	Use & Care Guide
1	Installation Instructions (Undercounter Oven)
1	Tech Sheet
1	INSTALLATION INSTRUCTIONS
1	Safer Cooking Tips (French)
1	SAFER COOKING TIPS (ENGLISH
2	Cooktop, Glass (White)
2	Cooktop, Glass (Black)
2	Cooktop, Glass (Stainless)
3	WP486754 Whirlpool Compactor Screw
4	Wall, Inside
5	W10491985 Whirlpool Screw
6	9759094 Whirlpool Spring
7	Shield, Heat
8	W10491984 Whirlpool Switch Seal
9	Seal, Heat Shield
10	8285593 Whirlpool Oven Wire Cover
11	Box, Burner
12	Appliance Manager, Module
13	WP4449745 Whirlpool Screw
14	WP3196557 Whirlpool Screw
15	Board, Control (White)
15	WP8286135 Whirlpool Electronic Control Board
16	WPW10142238 Whirlpool Cooktop Trim
16	Trim, Cooktop (Stainless Only) (Left)
17	Bracket, Bottom
18	Cable Assembly
19	WP3400093 Whirlpool Screw
20	Rail, Element (3)
21	Rail, Element (1)
23	Box, Touch Control
24	Element, Surface (2000/1000W RR)
24	WP4453907 Whirlpool Surface Element
24	WP8285230 Whirlpool Surface Element
24	WP8285845 Whirlpool Surface Element
25	WP8203546 Whirlpool Terminal Block
26	WP3196163 Whirlpool Screw
28	Support, Module
29	8186533 Whirlpool Hardware
