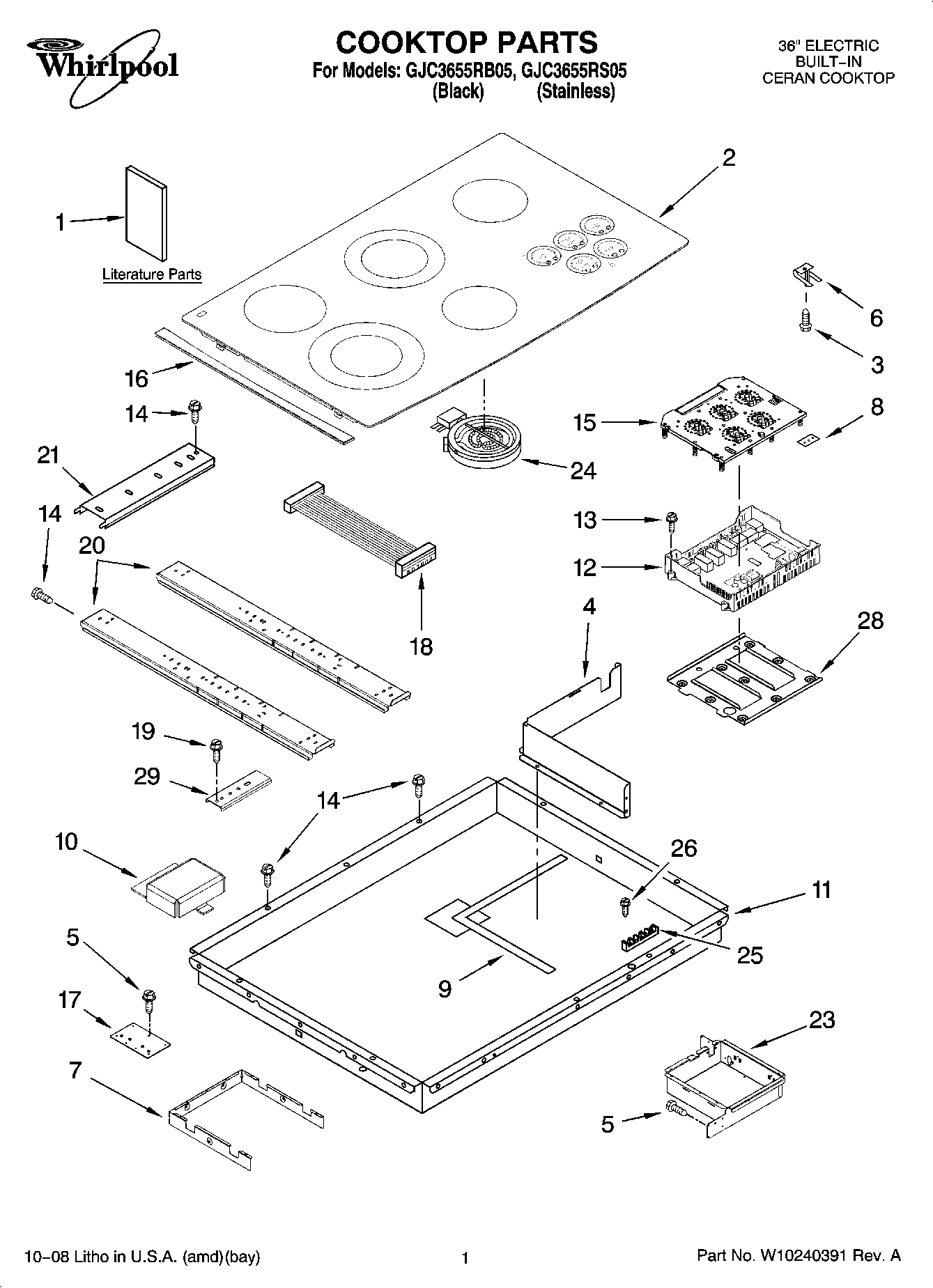

GJC3655RB05 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

Position	Product
	WP8286642 Whirlpool Tape
	WPL 8286379
	Clip, Harnes
	WIRING HARNESS PARTS
	Following Parts Not Illustrated
	Seal, Foam (36“)
	Nut
	WP3400015 Whirlpool Screw
	8285952 Whirlpool Oven Wire Harness
	Miscellaneous
1	INSTALLATION INSTRUCTIONS
1	SAFER COOKING TIPS (ENGLISH
1	Installation Instructions (Undercounter Oven)
1	Safer Cooking Tips (French)
1	Use & Care Guide
1	Tech Sheet
2	Cooktop, Glass (Stainless)
2	Cooktop, Glass (Black)
3	WP486754 Whirlpool Compactor Screw
4	Wall, Inside
5	W10491985 Whirlpool Screw
6	9759094 Whirlpool Spring
7	Shield, Heat
8	W10491984 Whirlpool Switch Seal
9	Seal, Heat Shield
10	8285593 Whirlpool Oven Wire Cover
11	Box, Burner
12	Appliance Manager, Module
13	WP4449745 Whirlpool Screw
14	WP3196557 Whirlpool Screw
15	WP8286135 Whirlpool Electronic Control Board
16	Trim, Cooktop (Stainless Only) (Left)
16	WPW10142238 Whirlpool Cooktop Trim
17	Bracket, Bottom
18	Cable Assembly
19	WP3400093 Whirlpool Screw
20	Rail, Element (3)
21	Rail, Element (1)
23	Box, Touch Control
24	WP4453907 Whirlpool Surface Element
24	WP8285230 Whirlpool Surface Element
24	WP8285845 Whirlpool Surface Element
24	Element, Surface (2000/1000W RR)
25	WP8203546 Whirlpool Terminal Block
26	WP3196163 Whirlpool Screw
28	Support, Module
29	8186533 Whirlpool Hardware
