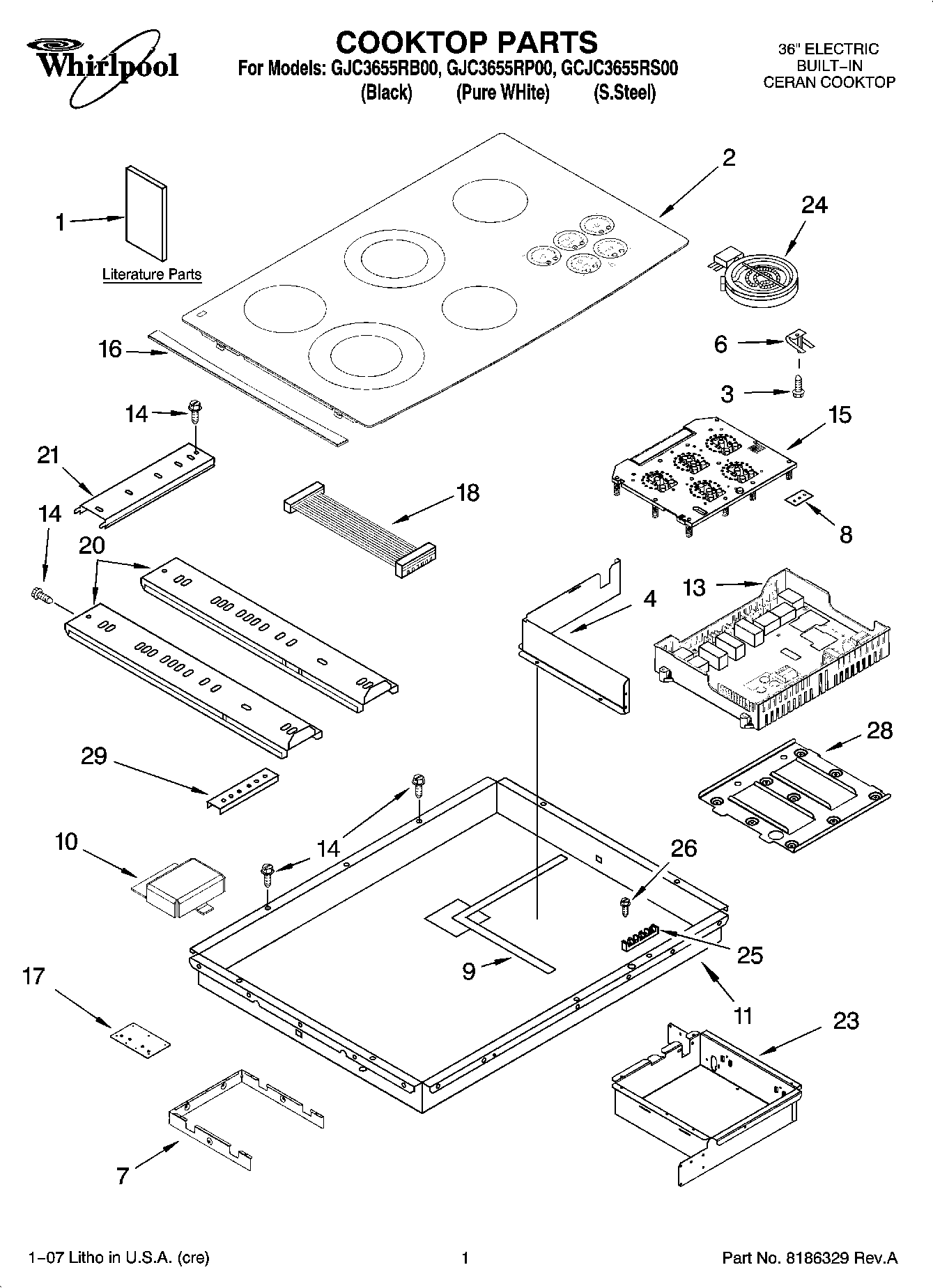

GJC3655RP00 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

Position	Product
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	Bracket, Support (2)
	WPL ARI66508A5
	WPL ARI66507A6
	8285952 Whirlpool Oven Wire Harness
	WPL 8286379
	WPL ARI66509A7
	242831 Whirlpool Oven Wire
	WP3400015 Whirlpool Screw
	WPL ARI66511A2
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	WPL ARI66510A6
	Clip, Harnes
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	BUSHING
1	Safe Cooking Tips (French)
1	Use & Care Guide
1	Wiring Diagram
1	Tech Sheet
1	INSTALLATION INSTRUCTIONS
1	Safe Cooking Tips
2	Cooktop, Glass (Stainless Steel)
2	Cooktop, Glass (White)
2	Cooktop, Glass (Black)
3	WP486754 Whirlpool Compactor Screw
4	Wall, Inside
6	9759094 Whirlpool Spring
7	Shield, Heat
8	W10491984 Whirlpool Switch Seal
9	Seal, Heat Shield
10	8285593 Whirlpool Oven Wire Cover
11	Box, Burner
13	WP4449745 Whirlpool Screw
13	Board, Power
14	WP3196557 Whirlpool Screw
15	WP8286135 Whirlpool Electronic Control Board
16	Trim, Cooktop (S.Steel Mdl Only) (LH)
16	WPW10142238 Whirlpool Cooktop Trim
17	Bracket, Bottom
18	Cable Ass`y
20	Rail, Element (2)
21	Rail, Element (1)
23	W10491985 Whirlpool Screw
23	Box, Touch Control
24	WP8285230 Whirlpool Surface Element
24	Element, Surface (2000/1000W RR)
24	WP8285845 Whirlpool Surface Element
24	WP4453907 Whirlpool Surface Element
25	WP8203546 Whirlpool Terminal Block
26	WP3196163 Whirlpool Screw
28	Support, Module
29	8186533 Whirlpool Hardware
29	WP3400093 Whirlpool Screw
