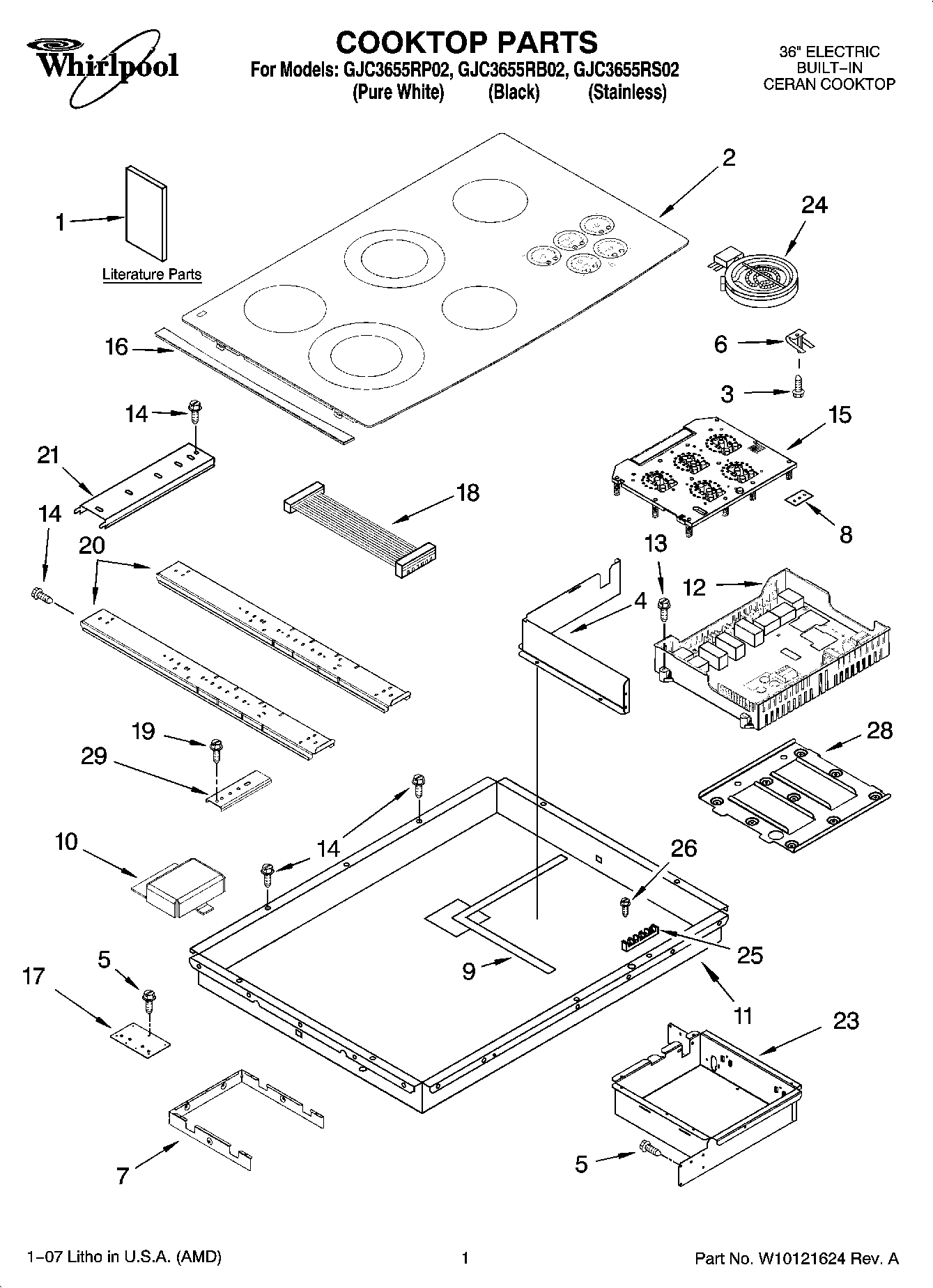

GJC3655RS02 01 – COOKTOP PARTS, OPTIONAL PARTS

GJC3655RS02 01 – COOKTOP PARTS, OPTIONAL PARTS

Written by

in

GJC3655RS02 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
Seal, Foam (36“)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
WPL ARI66534A2
WPL ARI66533A6
Bracket, Support (2)
WPL ARI66532A9
8285952 Whirlpool Oven Wire Harness
WPL 8286379
WPL ARI66531A4
Clip, Harnes
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Brown)
Wire, 25` Roll (Black 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
WP8286642 Whirlpool Tape
BUSHING
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
Wire (14 Ga. 150 c Green)
242831 Whirlpool Oven Wire
WP3400015 Whirlpool Screw
1Tech Sheet
1INSTALLATION INSTRUCTIONS
1LITERATURE PARTS
1Safe Cooking Tips (French)
1Safe Cooking Tips
1Use & Care Guide
1Installation Instructions (Undercounter, Oven)
2Cooktop, Glass (White)
2Cooktop, Glass (Black)
2Cooktop, Glass (Stainless)
3WP486754 Whirlpool Compactor Screw
4Wall, Inside
5W10491985 Whirlpool Screw
69759094 Whirlpool Spring
7Shield, Heat
8W10491984 Whirlpool Switch Seal
9Seal, Heat Shield
108285593 Whirlpool Oven Wire Cover
11Box, Burner
12Appliance Manager, Module
13WP4449745 Whirlpool Screw
14WP3196557 Whirlpool Screw
15WP8286135 Whirlpool Electronic Control Board
16WPW10142238 Whirlpool Cooktop Trim
16Trim, Cooktop (S.Steel Mdl Only) (LH)
17Bracket, Bottom
18Cable Ass`y
19WP3400093 Whirlpool Screw
20Rail, Element (3)
21Rail, Element (1)
23Box, Touch Control
24Element, Surface (2000/1000W RR)
24WP8285230 Whirlpool Surface Element
24WP4453907 Whirlpool Surface Element
24WP8285845 Whirlpool Surface Element
25WP8203546 Whirlpool Terminal Block
26WP3196163 Whirlpool Screw
28Support, Module
298186533 Whirlpool Hardware
