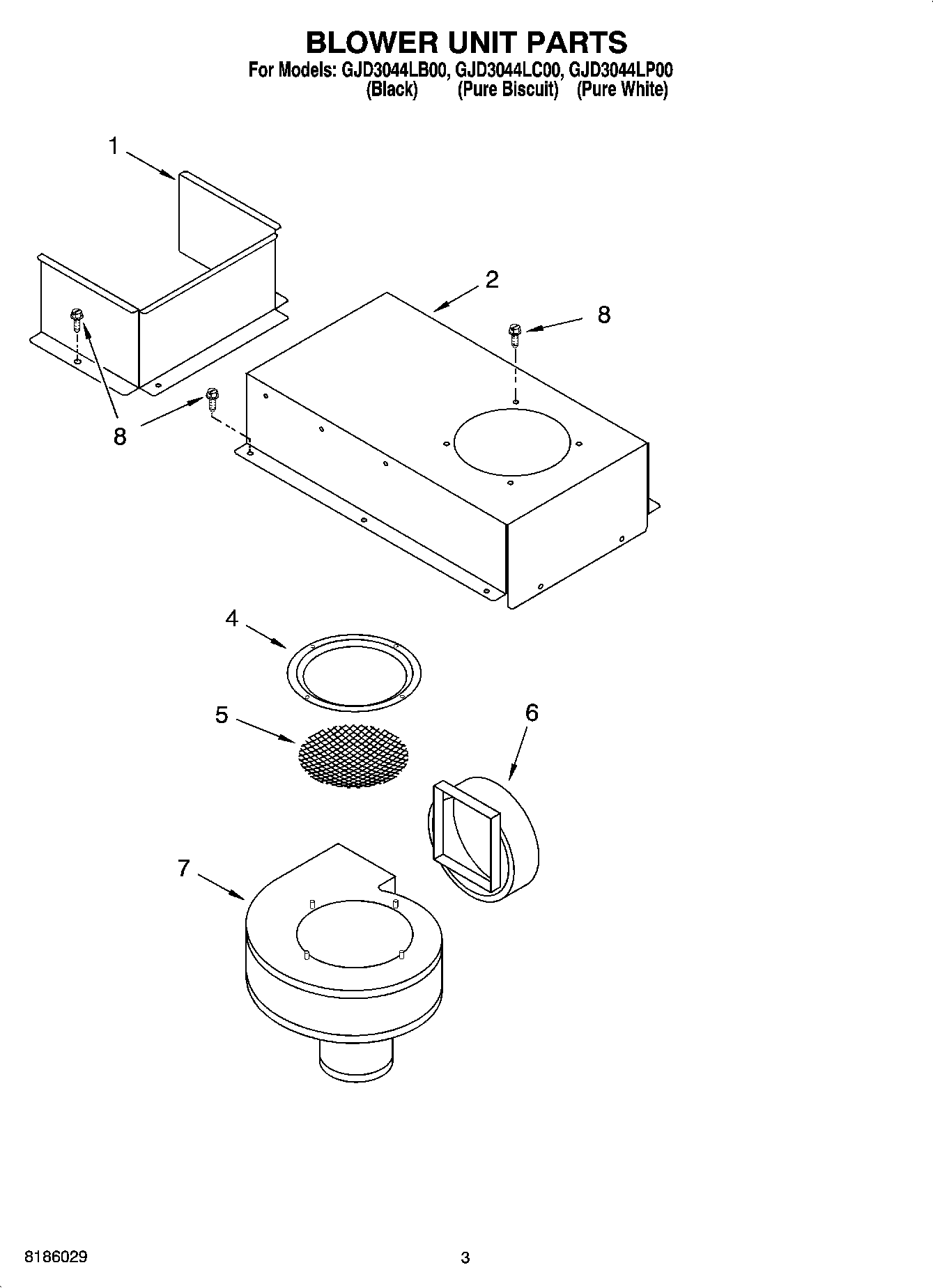

GJD3044LC00 02 – BLOWER UNIT PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WP3400015 Whirlpool Screw
	1
	Bracket, Support (2)
	Hardware Asm.
	Harness, Wire (Blower/Switch)
	Strain Relief
	Harness, Wire (Ceran Downdraft)
	Conduit, Downdraft
	FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous
	FOLLOWING PARTS NOT ILLUSTRATED SPLICING WIRES–25FT. LENGTH
	ACCESSORY PARTS
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	WIRING HARNESS PARTS WIRING HARNESS PARTS
	8528351 Whirlpool Clip
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
1	Bracket, Shield
2	Bracket, Blower Mounting
4	Ring, Inlet
5	Screen, Inlet
6	Adapter, Vent
7	Blower Motor Asm. (Includes Fan Asm)
8	WP3196557 Whirlpool Screw
