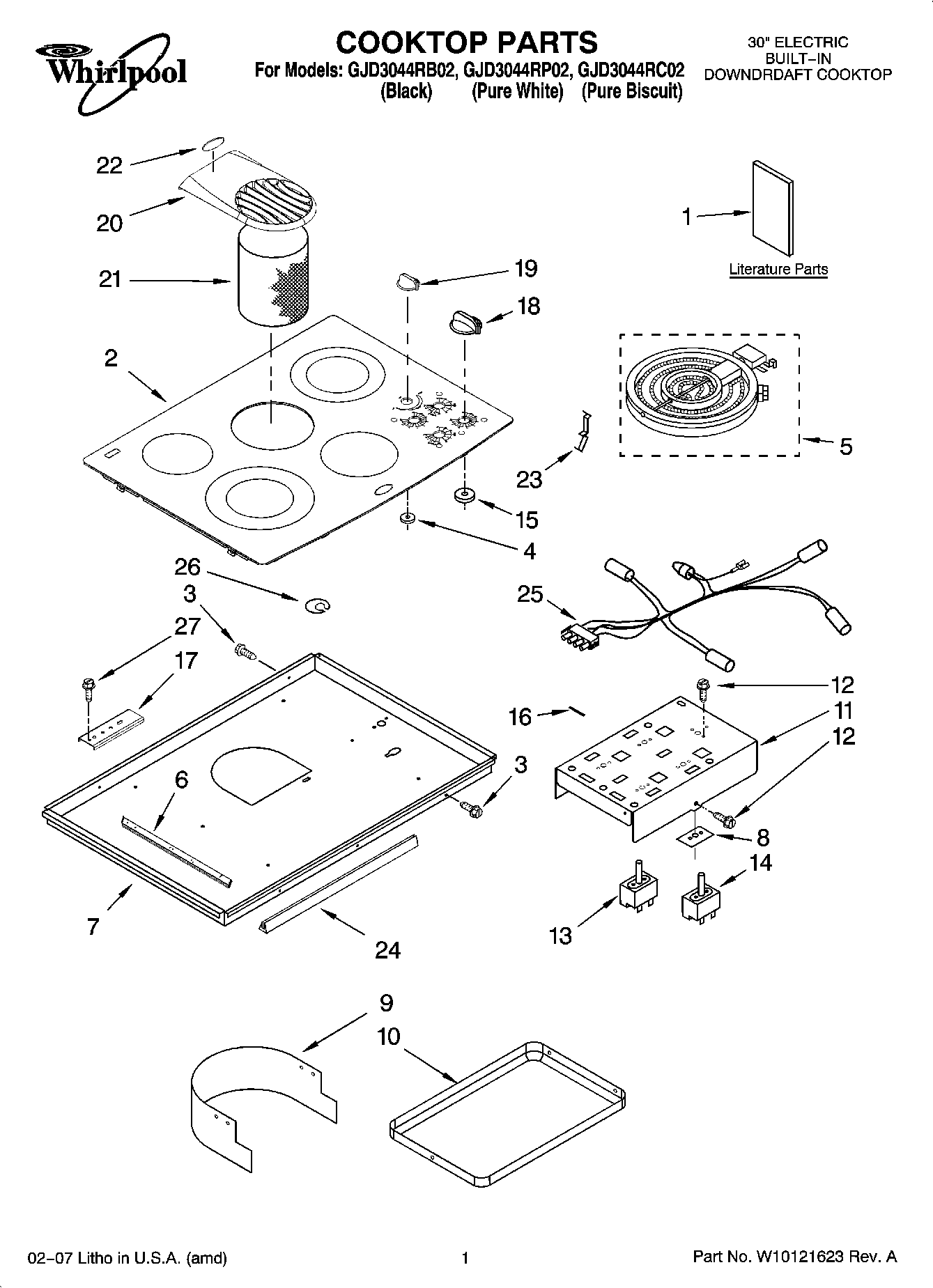

GJD3044RB02 01 – COOKTOP PARTS
Written by
in
GJD3044RB02 01 – COOKTOP PARTS
Products
Position
Product
1
Owners Manual Safe Cooking Tips
1
Installation Instructions
1
Wiring Diagram
1
Safe Cooking Tips (French)
1
Safe Cooking Tips
2
Cooktop, Glass & Bracket Assembly (White)
2
W10239873 Whirlpool Glass Main Top
2
Cooktop, Glass & Bracket Assembly (Biscuit)
3
WP3196557 Whirlpool Screw
4
WP3188425 Whirlpool Seal Switch
5
W10823711 Whirlpool Surface Element Left Front and Right Rear
5
ELEMENT, SURFACE 2000/1000W RR
5
W10823692 Whirlpool Dual Radiant Element
5
W10823699 Whirlpool Right Front Surface Element
6
Rail, Element (Left Hand)
6
Rail, Element (Right Hand)
7
Box, Burner
8
3183956 Whirlpool Oven Seal Switch
9
Shield, Vent
9
WP3177991 Whirlpool Screw
10
Drip Bowl, Grease
11
Bracket, Control Mounting
12
WP486579 Whirlpool Air Conditioner Screw
13
WP4456836 Whirlpool Speed Switch
14
WP3191049 Infinite Switch Left Rear Right Front
14
WP9759474 Whirlpool Infinite Switch
15
8285469 Whirlpool Oven Seal Switch
16
W10491984 Whirlpool Switch Seal
17
8186533 Whirlpool Hardware
18
8286043BT Whirlpool Knob
18
8286043WH Whirlpool Knob
18
WP8286043BL Whirlpool Knob
19
Knob, Downdraft (White)
19
Knob, Downdraft (Biscuit)
19
8286045BL Whirlpool Knob
20
Grille, Air (Black)
20
Grille, Air (Pure White)
20
Grille, Air (Biscuit)
21
Filter, Grease
22
NAMEPLATE
23
9759094 Whirlpool Spring
24
Gasket, Vent Shield
25
Lamp, Hot Surface Indicator
26
WPL 3193094
27
WP3400093 Whirlpool Screw
←
