GJD3044RB02 02 – BLOWER UNIT PARTS, OPTIONAL PARTS

Products

PositionProduct
W10491985 Whirlpool Screw
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
SPLICING WIRES–25FT. LENGTH
Harness, Wire (Ceran Downdraft)
Conduit, Downdraft
4456859 Whirlpool Oven Wire Harness
Strain Relief
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
WIRING HARNESS PARTS
WP3400015 Whirlpool Screw
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
ACCESSORY PARTS
8528351 Whirlpool Clip
242831 Whirlpool Oven Wire

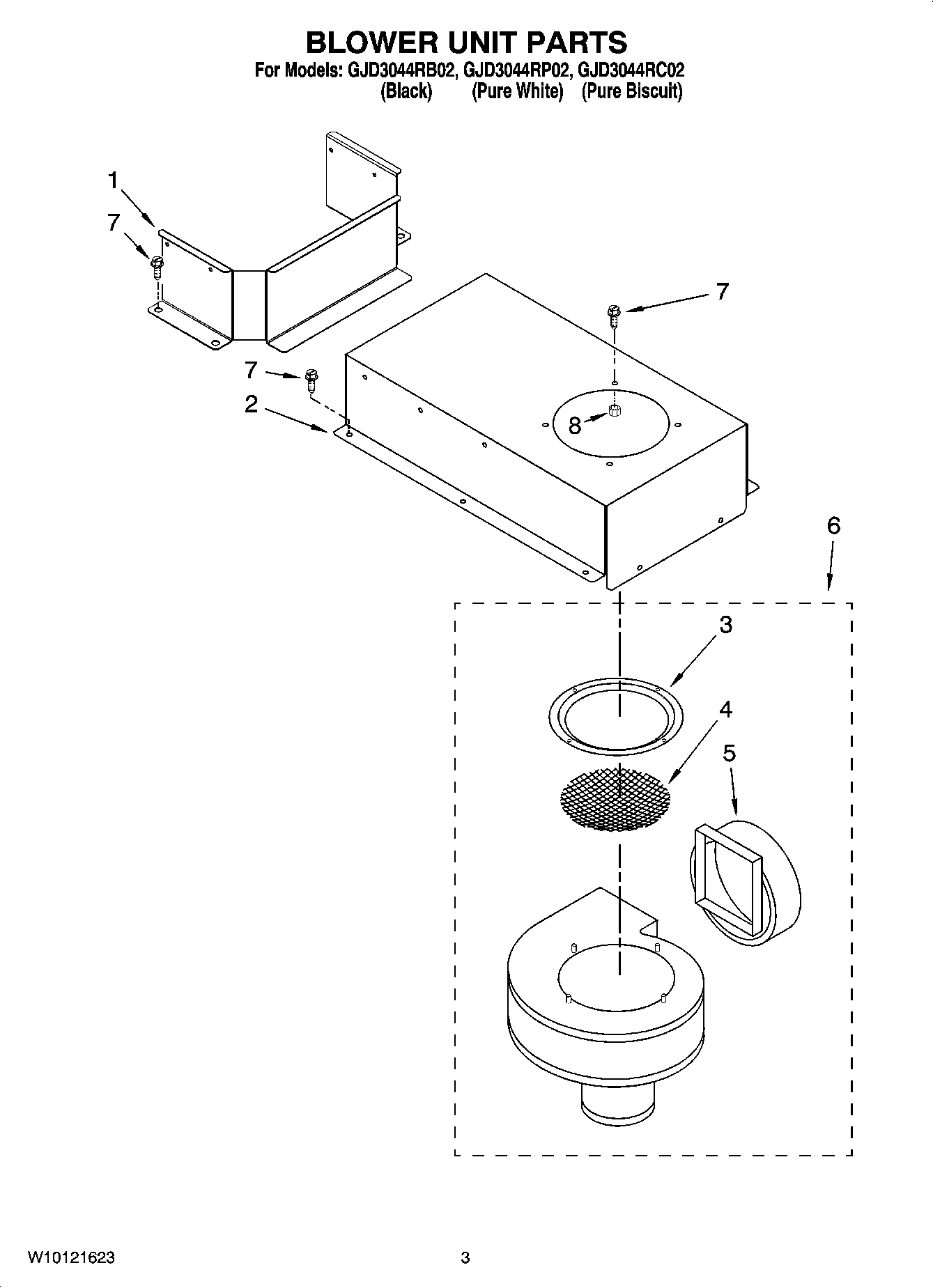

1Bracket, Shield
2Bracket, Blower Mounting
3Ring, Inlet
4Screen, Inlet
5Adapter, Vent
6WPW10109930 Whirlpool Blower Assembly
7WP308685 Whirlpool Microwave Screw
8Hardware Asm.
8Bracket, Support (2)
8WP8286642 Whirlpool Tape
8WP488130 Whirlpool Air Conditioner Nut
8FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous
