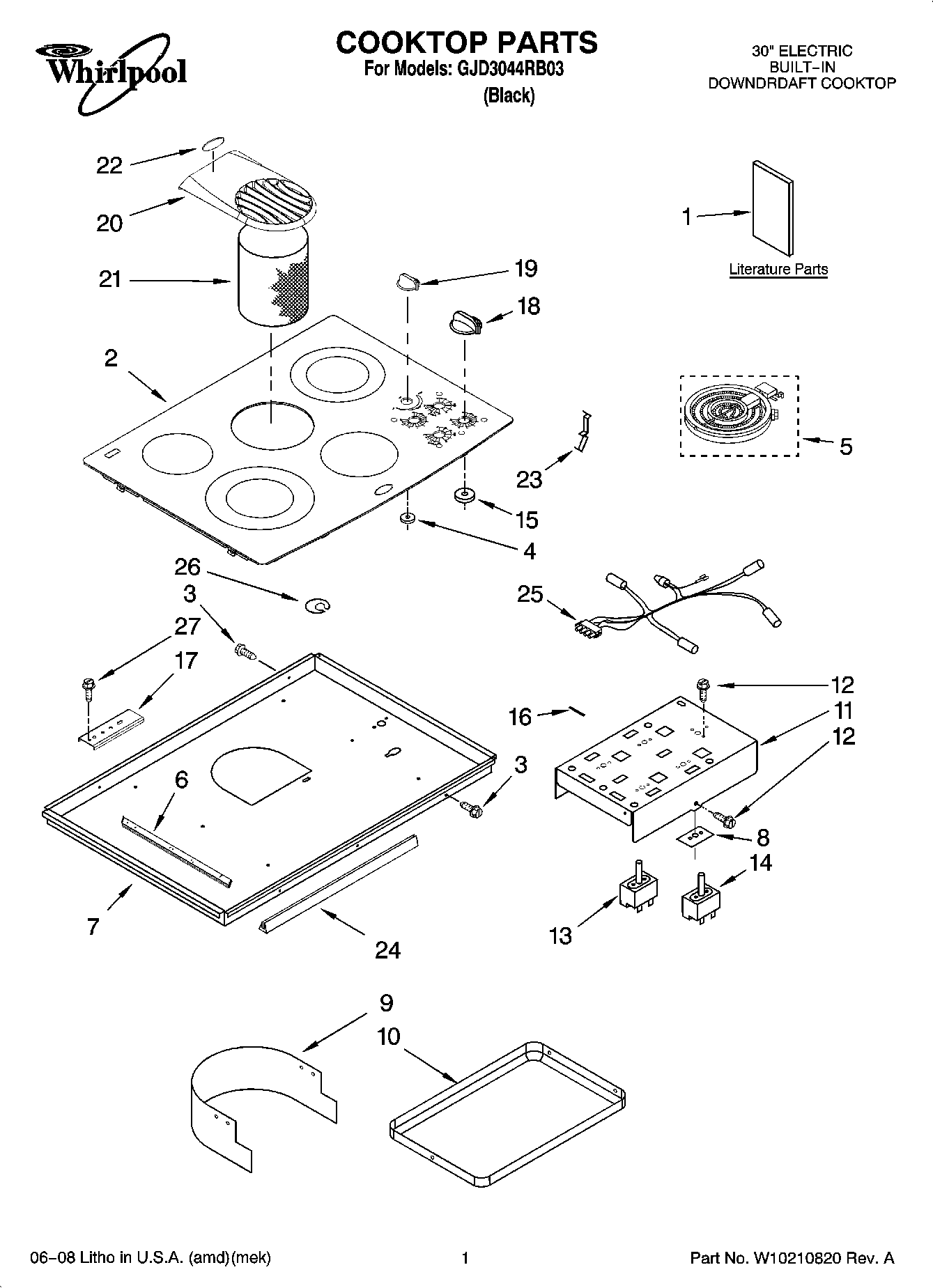

GJD3044RB03 01 – COOKTOP PARTSadmin2025-04-26T10:33:16+00:00GJD3044RB03 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | Installation Instructions |
| 1 | Owners Manual |
| 1 | Wiring Diagram |
| 1 | SAFER COOKING TIPS (ENGLISH |
| 1 | Safer Cooking Tips (French) |
| 2 | W10239873 Whirlpool Glass Main Top |
| 3 | WP3196557 Whirlpool Screw |
| 4 | WP3188425 Whirlpool Seal Switch |
| 5 | ELEMENT, SURFACE 2000/1000W RR |
| 5 | W10823699 Whirlpool Right Front Surface Element |
| 5 | W10823692 Whirlpool Dual Radiant Element |
| 5 | W10823711 Whirlpool Surface Element Left Front and Right Rear |
| 6 | Rail, Element (Right Hand) |
| 6 | Rail, Element (Left Hand) |
| 7 | Box, Burner |
| 8 | 3183956 Whirlpool Oven Seal Switch |
| 9 | WP3177991 Whirlpool Screw |
| 9 | Shield, Vent |
| 10 | Drip Bowl, Grease |
| 11 | Bracket, Control Mounting |
| 12 | WP486579 Whirlpool Air Conditioner Screw |
| 13 | WP4456836 Whirlpool Speed Switch |
| 14 | WP3191049 Infinite Switch Left Rear Right Front |
| 14 | WP9759474 Whirlpool Infinite Switch |
| 15 | 8285469 Whirlpool Oven Seal Switch |
| 16 | W10491984 Whirlpool Switch Seal |
| 17 | 8186533 Whirlpool Hardware |
| 18 | WP8286043BL Whirlpool Knob |
| 19 | 8286045BL Whirlpool Knob |
| 20 | Grille, Air (Black) |
| 21 | Filter, Grease |
| 22 | NAMEPLATE |
| 23 | 9759094 Whirlpool Spring |
| 24 | Gasket, Vent Shield |
| 25 | Lamp, Hot Surface Indicator |
| 26 | WPL 3193094 |
| 27 | WP3400093 Whirlpool Screw |
